Multiple Junction Connector: Locations

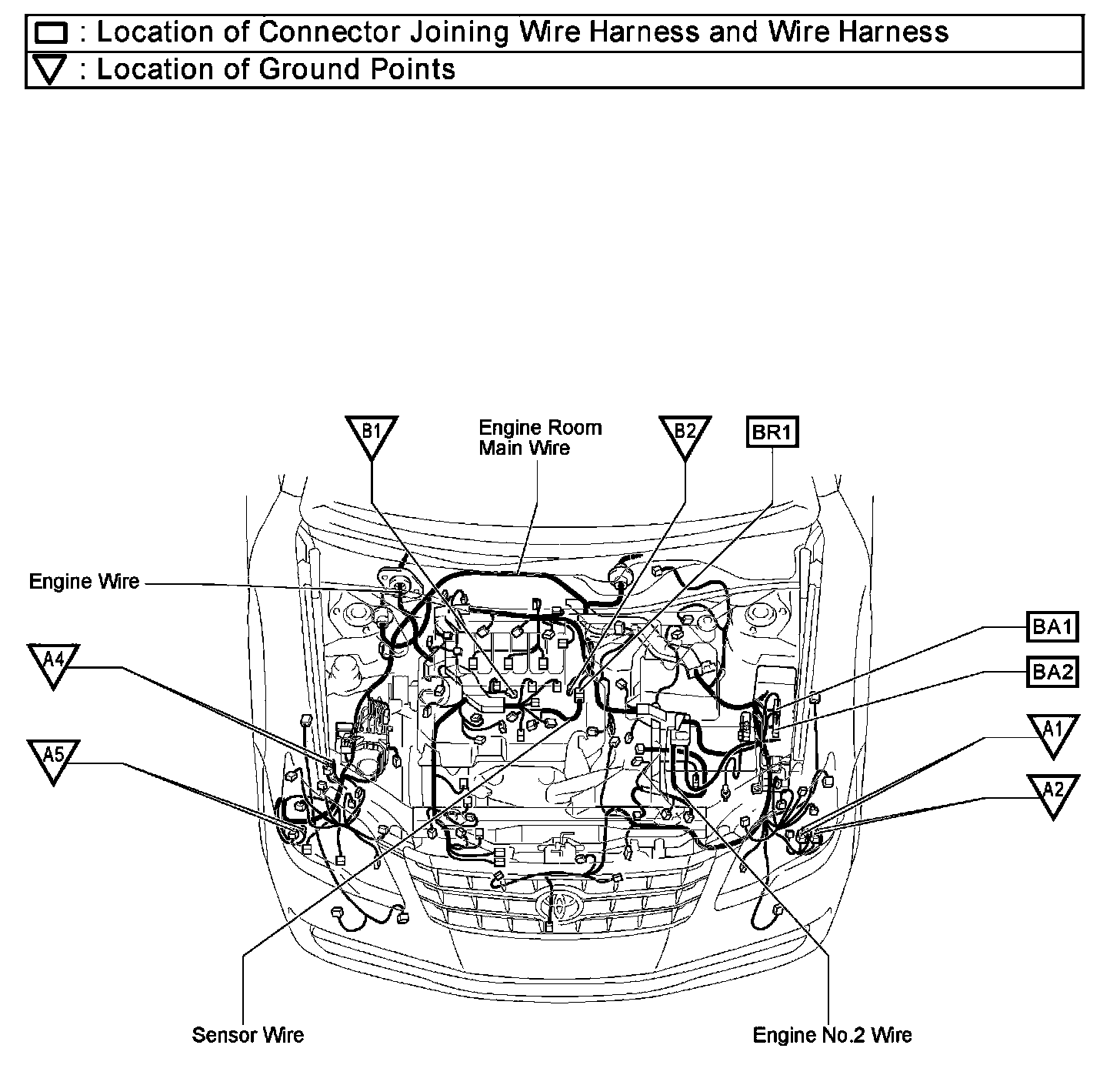

BA1 - BR1, A1 - B2:

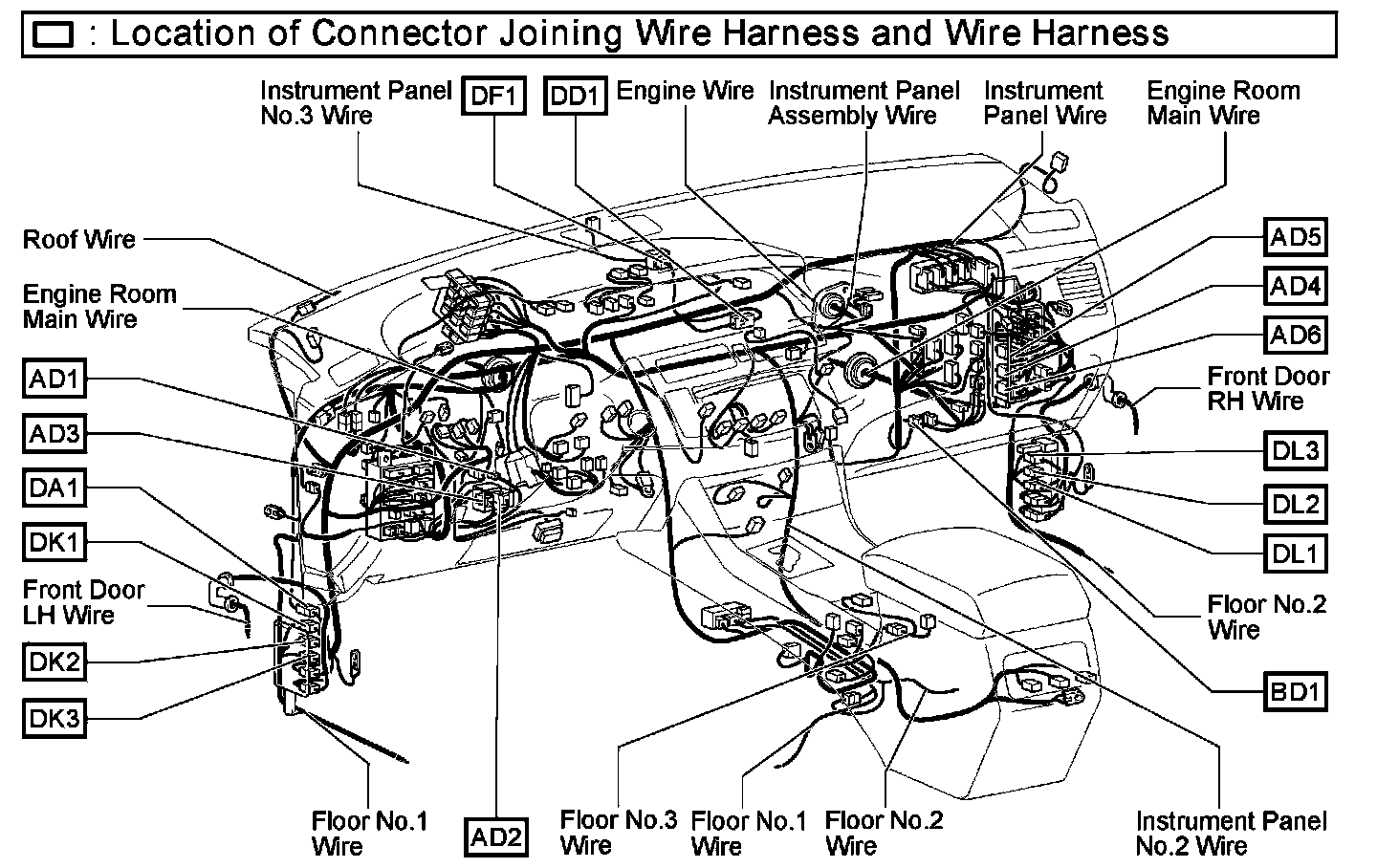

AD1 - DL3:

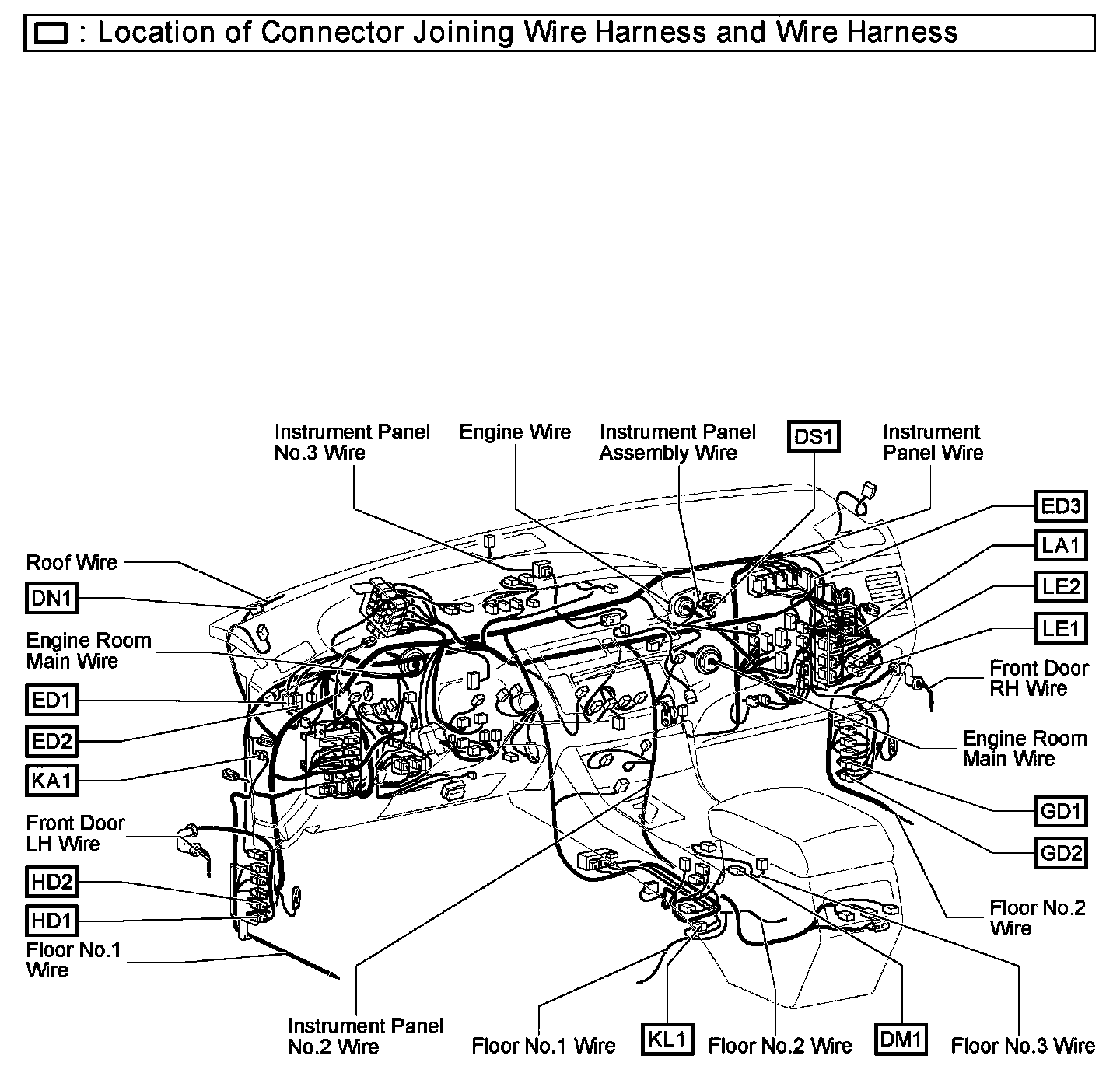

DM1 - LE2:

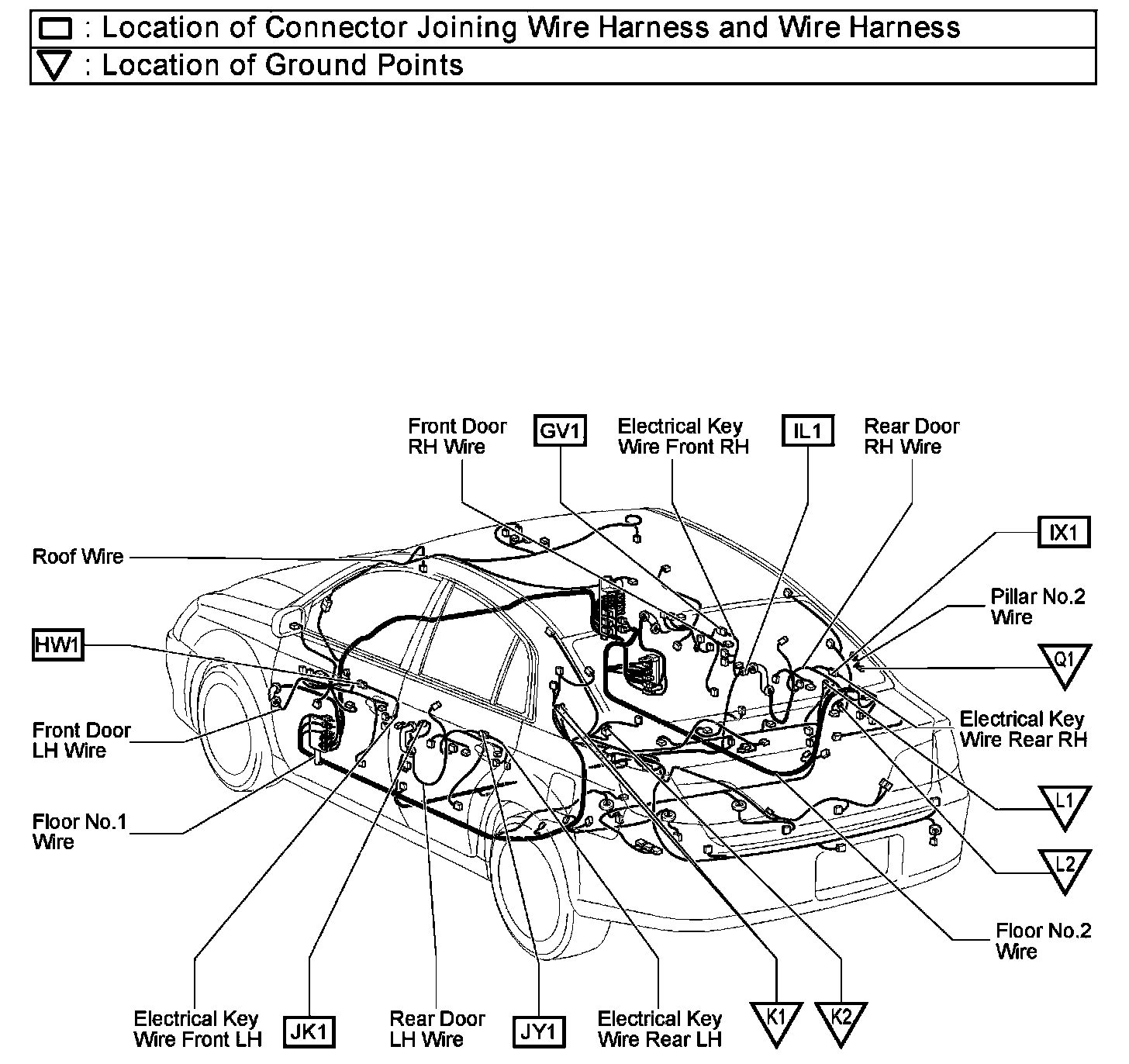

GV1 - JY1, K1 - Q1:

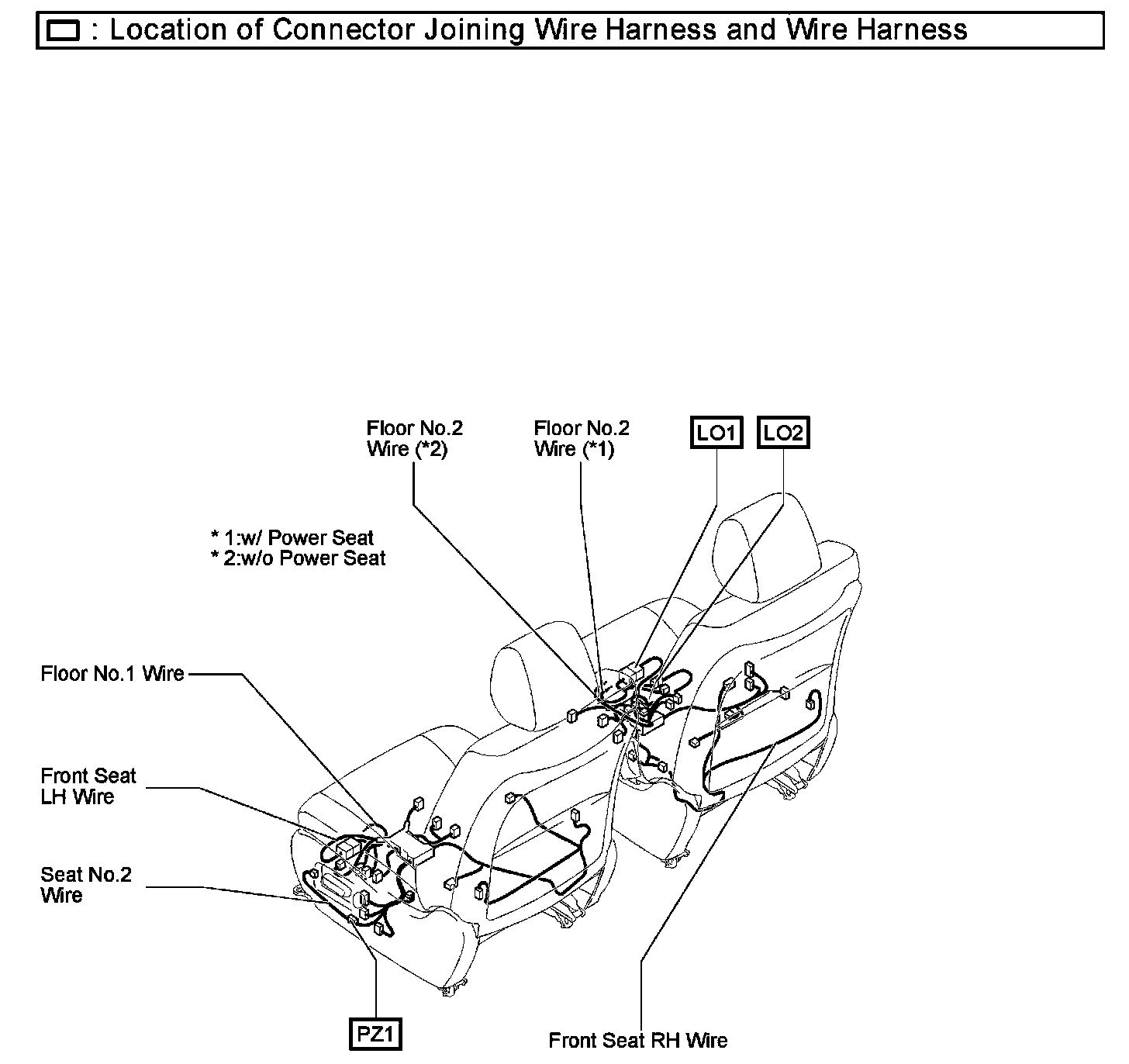

LO1 - PZ1:
