Emission Control Systems: Description and Operation

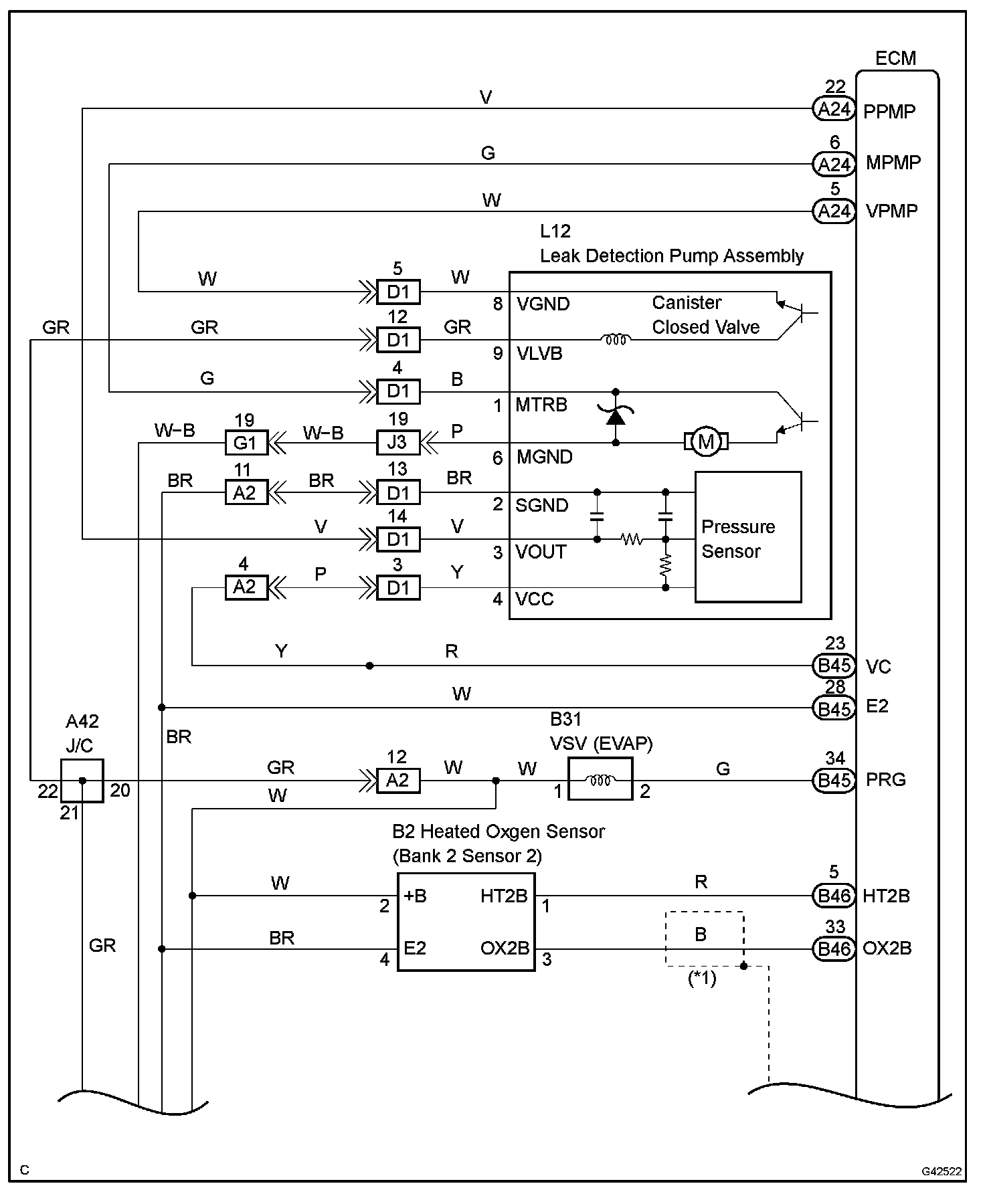

System Diagram (Part 1):

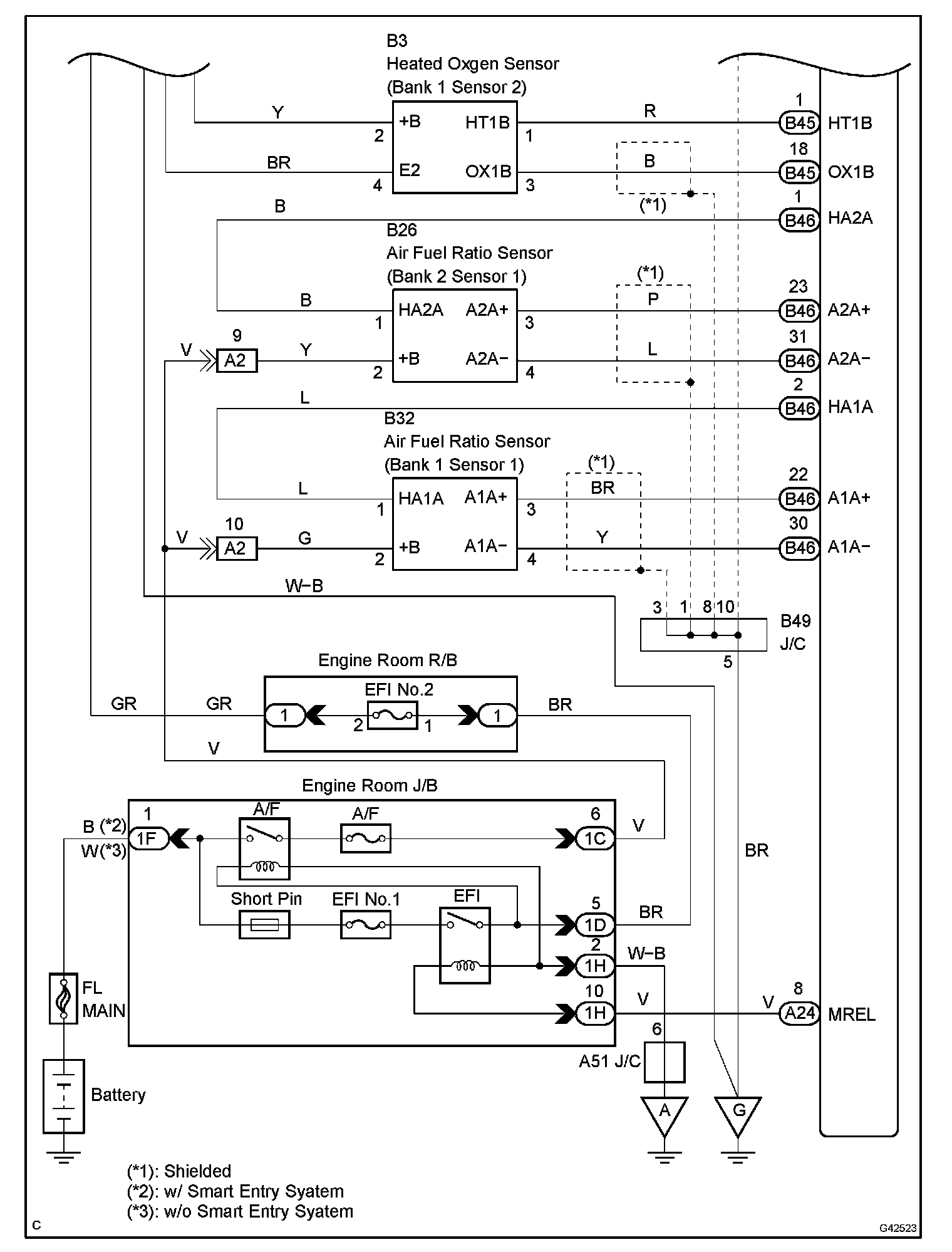

System Diagram (Part 2):
