System Description

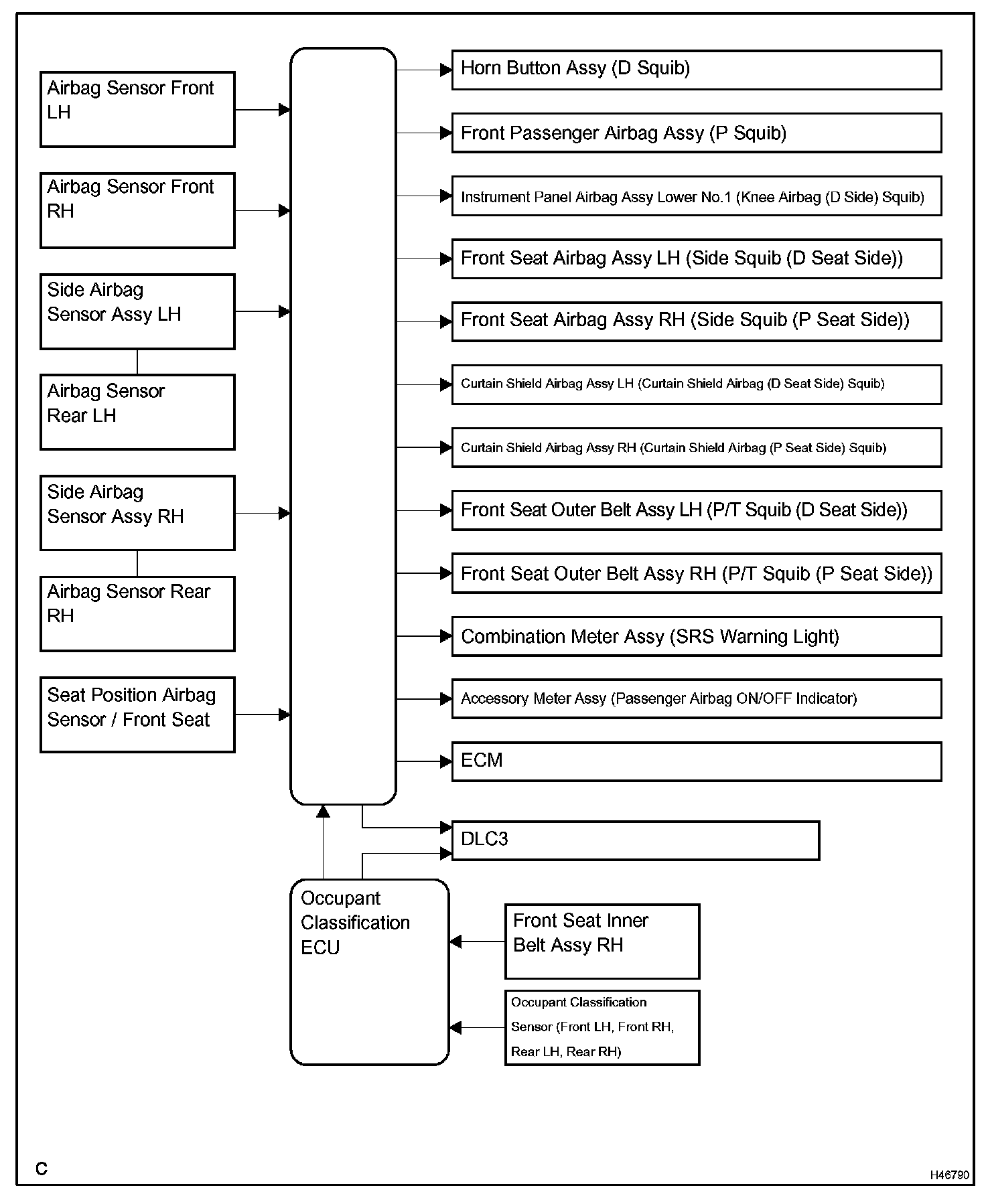

System Diagram:




SYSTEM DIAGRAM

SYSTEM DESCRIPTION

1. GENERAL
a. In conjunction with impact absorbing structure for a frontal collision, the SRS (Supplemental Restraint System) driver, front passenger and knee airbags were designed to supplement seat belts in the event of a frontal collision in order to help reduce shock to the head and chest of the driver and front passenger. This system is a 3-sensor type airbag system to detect the impact during a frontal collision using the airbag sensor assembly center and front airbag sensors. It also operates the airbag system and seat belt pretensioner.
b. In order to detect the extent of the collision during the initial stages of the collision in further detail, the front airbag sensors have been changed from mechanical type to electrical type deceleration sensors.
Accordingly, the deployment of the driver and front passenger airbags is controlled in two stages according to the severity of the impact.
c. In conjunction with impact absorbing structure for a side collision, the front seat and curtain shield airbags were designed to help reduce shock to the driver, front passenger, and rear outer passengers in the event of a side collision.
d. The curtain shield airbag system that helps reduce shock to the front and rear seat occupants with a single curtain shield airbag has been adopted. In conjunction with this system, the side airbag sensor assemblies have been installed at the bottom of the center pillars and the airbag sensor rear has been installed at the bottom of the rear pillars respectively.
e. In this system, a front side collision is detected by the side airbag sensor assembly and airbag sensor assembly center in order to simultaneously deploy the side airbags and curtain shield airbags. A rear side collision is detected by the airbag sensor rear and the airbag sensor assembly center in order to deploy only the curtain shield airbag.

2. CONSTRUCTION AND OPERATION
a. AIRBAG SENSOR FRONT
1. The front airbag sensor assemblies are installed on the right and left front side members respectively.
2. The front airbag sensor consists of the deceleration sensor.
3. The deceleration sensor is built into the front airbag sensor, and the distortion that is created in the sensor is converted into an electric signal based on the vehicle deceleration rate during a frontal collision. Accordingly, the extent of the initial collision can be detected in detail.

b. SIDE AIRBAG SENSOR ASSEMBLY
1. The side airbag sensor assemblies are installed on the bottom of the right and left center pillars respectively.
2. The side airbag sensor assembly consists of the deceleration sensor.
3. The deceleration sensor is built into the side airbag sensor assembly, and the distortion that is created in the sensor is converted into an electric signal based on the vehicle deceleration rate during a front side collision. Accordingly, the extent of the initial collision can be detected in detail.

c. AIRBAG SENSOR REAR
1. The rear airbag sensor assemblies are installed on the right and left rear pillars respectively.
2. The rear airbag sensor consists of the deceleration sensor.
3. The deceleration sensor is built into the rear airbag sensor, and the distortion that is created in the sensor is converted into an electric signal based on the vehicle deceleration rate during a rear side collision. Accordingly, the extent of the initial collision can be detected in detail.

d. AIRBAG SENSOR ASSEMBLY CENTER
1. General
- The airbag sensor assembly center is installed on the center floor under the instrument panel.
- The airbag sensor assembly center consists of the deceleration sensor, electronic safing sensor, ignition control circuit and diagnostic circuit.
- The airbag sensor assembly center receives signals from the deceleration sensor and electronic safing sensor built into the airbag sensor assembly center and airbag sensor front. Then the airbag sensor assembly center determines whether or not the driver, front passenger and knee airbags and seat belt pretensioner should be activated, and diagnoses system malfunctions.
- The airbag sensor assembly center receives signals from the deceleration sensor and the electronic safing sensor built into the airbag sensor assembly center and the side airbag sensor assembly and determines whether or not the front seat airbag assembly and the curtain shield airbag assembly should be activated, and diagnoses system malfunctions.
- The airbag sensor assembly center receives signals from the deceleration sensor and the electronic safing sensor built into the airbag sensor assembly center and the airbag sensor rear, and determines whether or not the curtain shield airbag assembly should be activated, and diagnoses system malfunctions.

2. Deceleration sensor and ignition control circuit
- The ignition control circuit performs calculations based on the signal output from the deceleration sensors of the airbag sensor assembly center and airbag sensor front. If the calculated values are greater than the specified values, it activates ignition operation.

3. Electronic safing sensor
- The electronic safing sensor is built into the airbag sensor assembly center. During a frontal collision, front side collision, front side side collision, the sensor turns on and outputs an ON signal to the airbag sensor assembly center if a deceleration rate greater than the specified value is applied to the electronic safing sensor.

4. Back-up power source
- The back-up power source consists of a power supply capacitor and a DC-DC converter.

When the power system does not function during a collision, the power supply capacitor discharges and supplies electric power to the system. The DC-DC converter operates as a boosting transformer when the battery voltage falls below a predetermined level.

5. Diagnostic circuit
- This circuit constantly diagnoses system malfunctions. When a malfunction is detected, it lights up the SRS warning light on the combination meter assembly to inform the driver.

6. Memory circuit
- When a malfunction is detected in the diagnostic circuit, it is coded and stored in the memory circuit.

e. SRS WARNING LIGHT
1. The SRS warning light is located on the combination meter assembly. It comes on to inform the driver of system trouble when a malfunction is detected in self-diagnosis of the airbag sensor assembly center. Under normal operating conditions when the ignition switch is turned to on (IG), it comes on for approximately 6 seconds and then goes off.

3. IGNITION DETERMINATION AND CONDITION




a. FRONTAL COLLISION

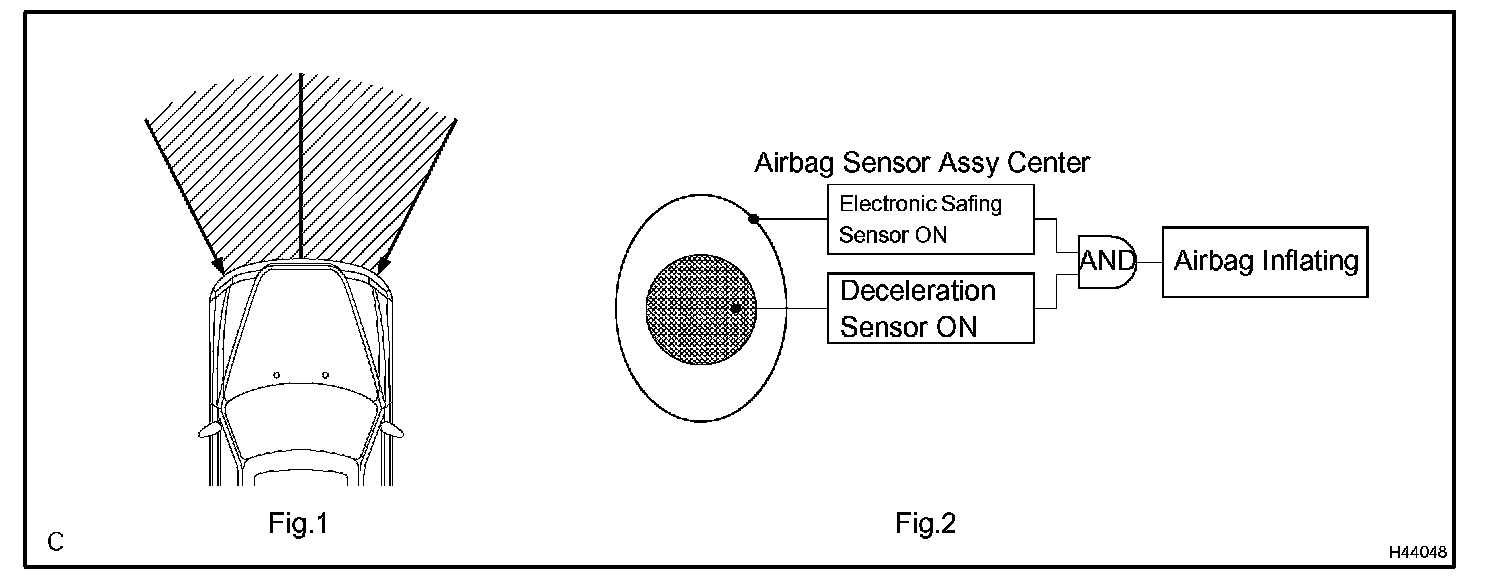

1. When collision occurs in the hatched are (Fig.1) and the shock is greater than the specified value, the airbags (driver, front passenger and knee airbag) are activated automatically. The airbag sensor assembly center determines whether or not ignition is necessary based on signals from the deceleration sensor of the airbag sensor front and the airbag sensor assembly center.
2. The safing sensor of the airbag sensor assembly center was designed to be turned on at a smaller deceleration rate than the deceleration sensor. If the safing sensor and the deceleration sensor turn on simultaneously, current flows to the squib and deploys the driver, front passenger and knee airbags as shown in illustration Fig.2.




b. FRONT SIDE COLLISION

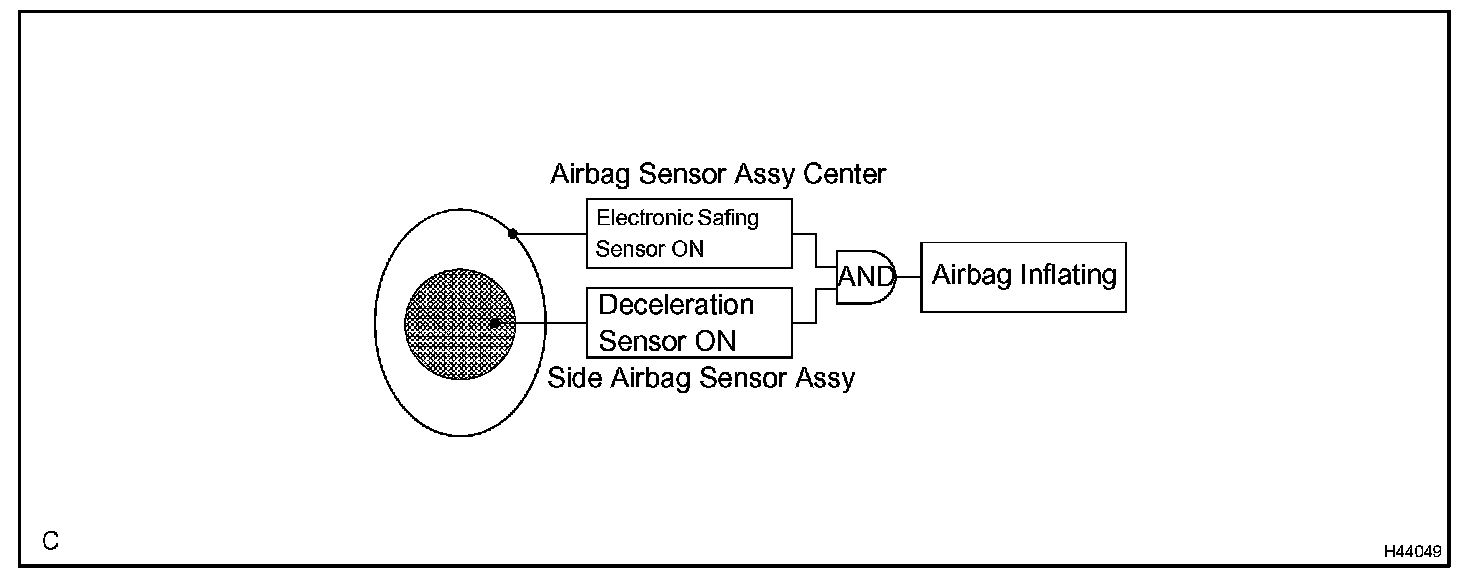

1. The safing sensor of the airbag sensor assembly center was designed to be turned on at a smaller deceleration rate than the deceleration sensor of the side airbag sensor assembly. As illustrated, when both the safing sensor and the deceleration sensor go on simultaneously, current flows to the initiator and ignition occurs.




c. REAR SIDE COLLISION

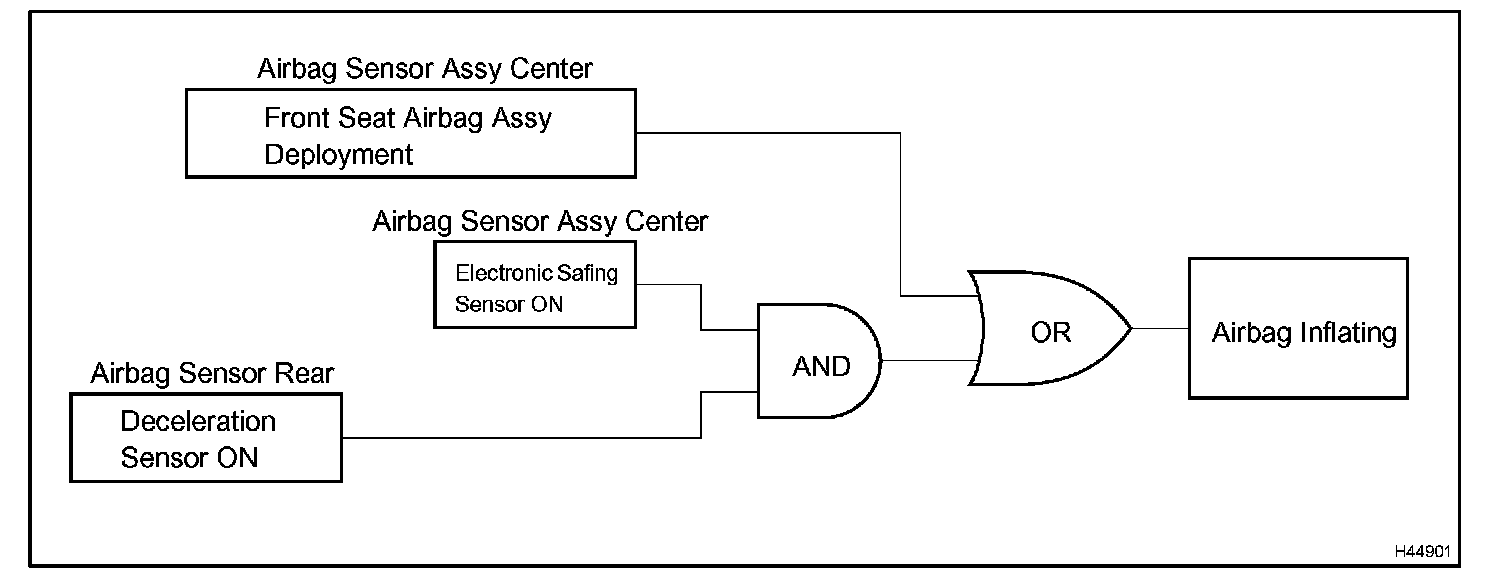

1. The electronic safing sensor of the airbag sensor assembly center was designed to be turned on at a smaller deceleration rate than the deceleration sensor of the airbag sensor rear. As illustrated, when both the electronic safing sensor and the deceleration sensor go on simultaneously, current flows to the initiator and ignition occurs.




4. DESCRIPTION OF OCCUPANT CLASSIFICATION SYSTEM
a. GENERAL DESCRIPTION
1. In the occupant classification system, the occupant classification ECU calculates the weight of the occupant based on a signal from the occupant classification sensor. This system recognizes the occupant to be a child if it detects a weight of less than 36 kg (79.37 lb), and disables the front and side airbags.
2. This system is mainly comprised of 4 occupant classification sensors that detect the load on the front passenger seat. The occupant classification ECU controls the system, and the passenger airbag ON/OFF indicator indicates the ON/OFF condition of the front passenger airbag assembly and front seat airbag assembly (passenger side).

b. OCCUPANT CLASSIFICATION SENSOR

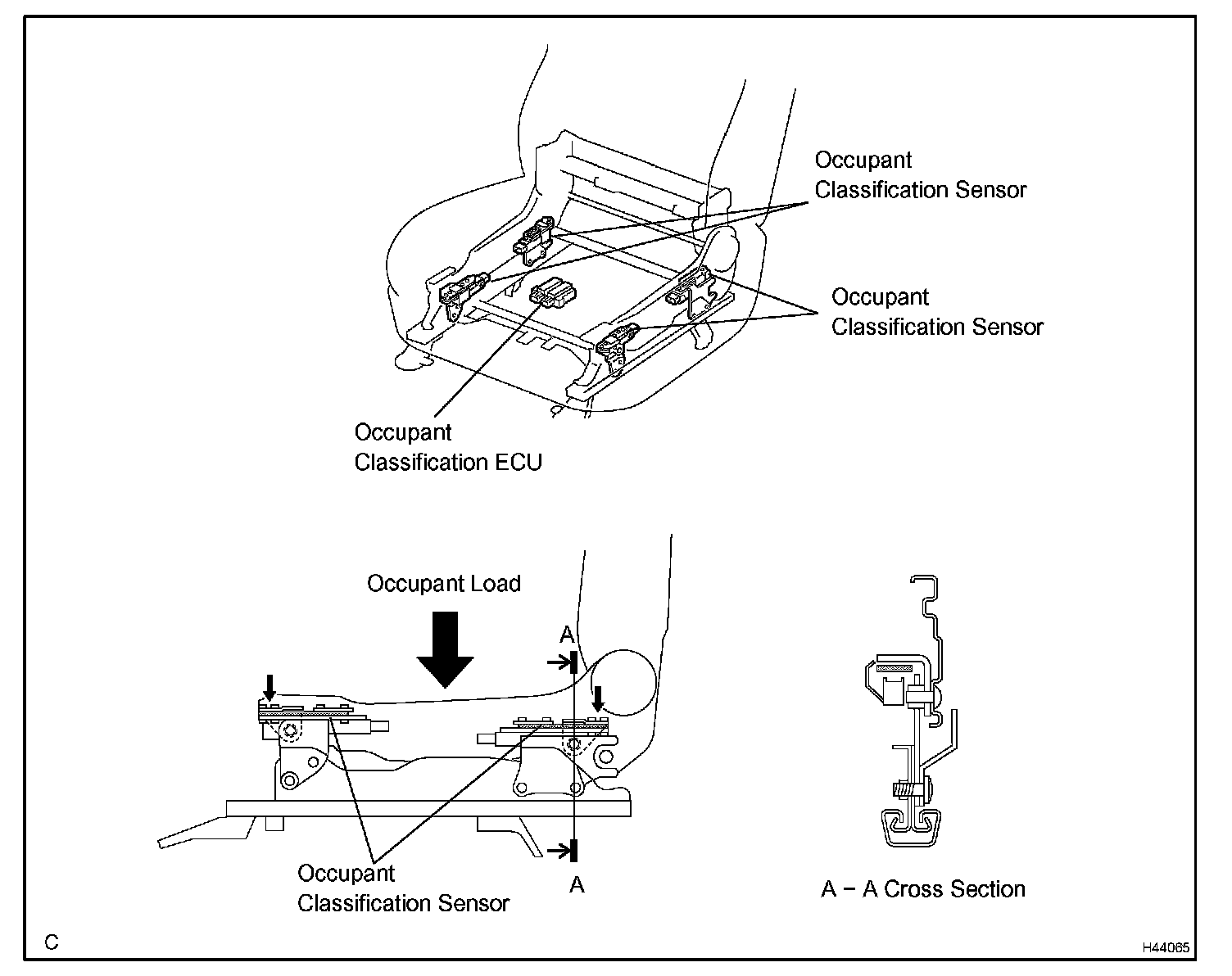

1. The occupant classification sensors are installed on 4 brackets connecting the seat rail and seat frame. Accordingly, when load is applied to the passenger seat by an occupant sitting in it, the occupant classification sensors register a distortion.
