Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2006
>>
Avalon V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Starting and Charging
>>
System Specifications
System Specifications

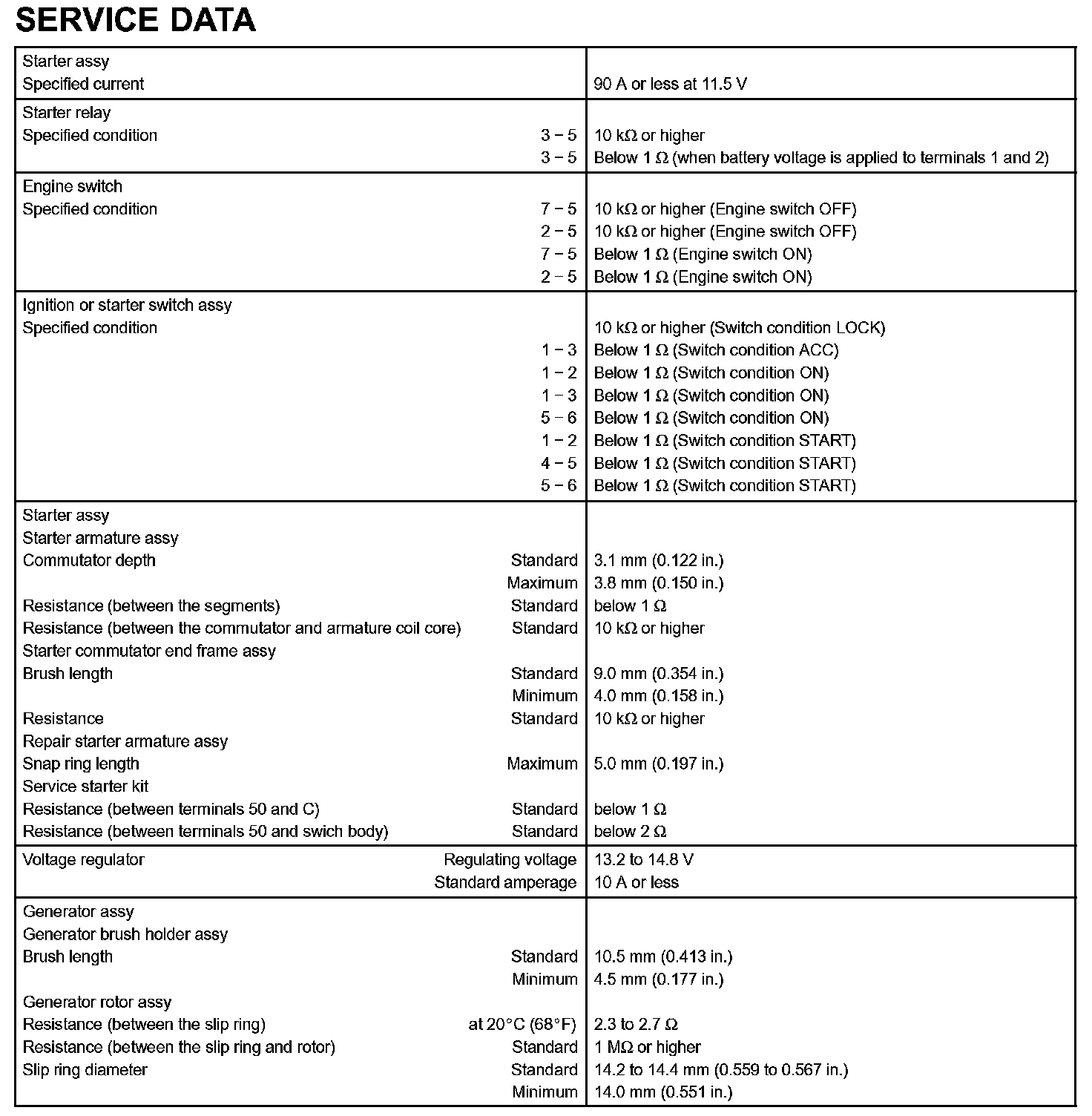

Starting & Charging-Service Data:
