Body - Front Door Window(s) Won't Roll Up

BODY
BO013-07
REVISED

Title:
FRONT DOOR GLASS
OPERATION IMPROVEMENT

Models:
'05 - '07 Avalon

September 29, 2007

TSB REVISION NOTICE:

^ October 20, 2007: The VIN in the Production Change Information table has been updated.

Previous versions of this TSB should be discarded.

Introduction

Some customers may experience a condition where the front door glass will not roll up. This condition may be the result of a bent window regulator arm possibly caused by the detachment of the door glass from the glass guide. The following procedure describes the repair method to correct this condition.

Applicable Vehicles

^ 2005 - 2007 model year Avalon (all grade levels) vehicles produced BEFORE the Production Change Effective VIN shown below.

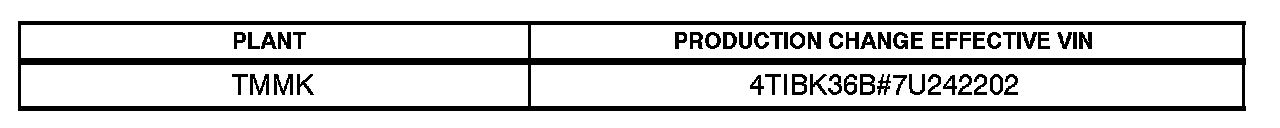

Production Change Information

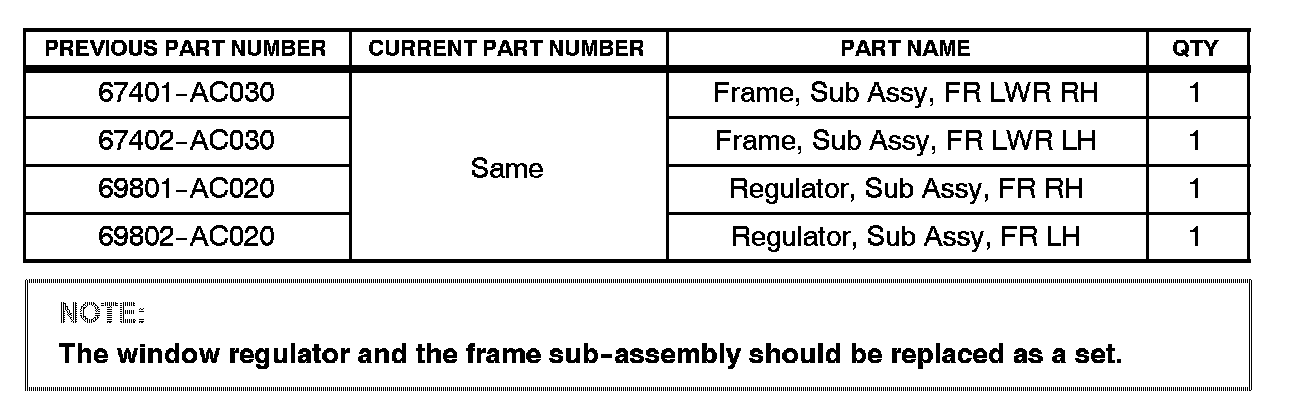

Parts Information

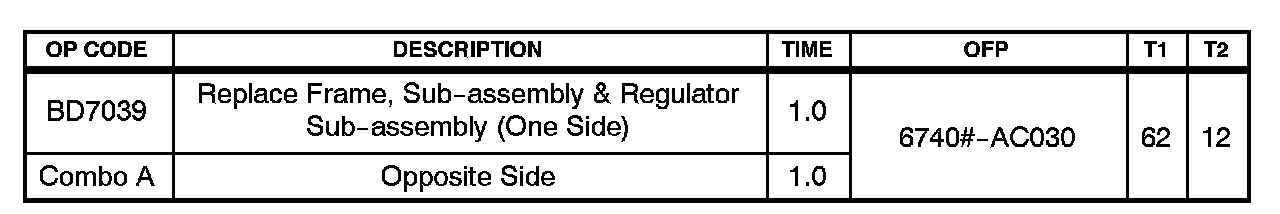

Warranty Information

Applicable Warranty*:
This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

Repair Procedure

If the door glass does not roll up properly or the door glass guide (frame, sub-assembly) or window regulator (regulator sub-assembly) is bent, replace both the door glass guide and window regulator.

Refer to the Technical Information System (TIS):

^ 2005 model year Avalon Repair Manual, Vehicle Exterior - Door/Hatch - "Front Door: Overhaul".

^ 2006 or 2007 model year Avalon Repair Manual, Vehicle Exterior - Door/Hatch - "Engine Hood/Door: Front Door: Disassembly".

^ 2006 or 2007 model year Avalon Repair Manual, Vehicle Exterior - Door/Hatch - "Engine Hood/Door: Front Door: Reassembly".
