Canada - Lighting - Fog Lamps are Loose

Bulletin
TSB2478

Issue Date
2006-03-07

Market
Canada

Title
FOG LAMPS LOOSE

Component
BODY COMPONENT

Models
'05 - '06 Avalon

INTRODUCTION:
Some 2005 -- 2006 model year Avalon customers may complain that the fog lamps are loose. The fog lamp brackets and bumper hole covers have been modified to correct this condition.

APPLICABLE VEHICLES:
- 2005 - 2006 model year Avalon vehicles produced BEFORE the Production Change Effective VIN shown below.






PRODUCTION CHANGE INFORMATION:

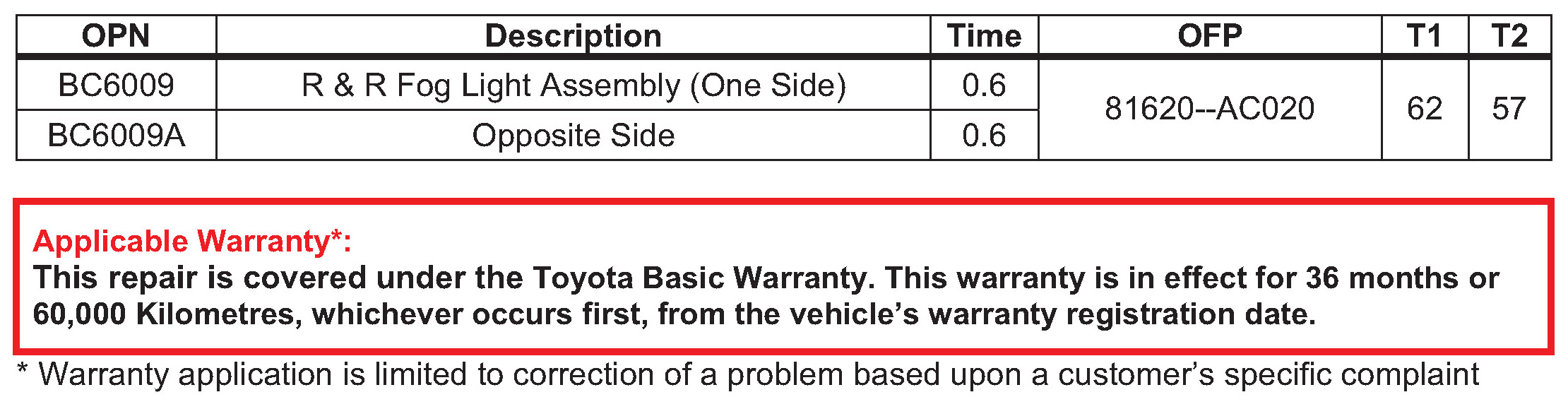

WARRANTY INFORMATION:

PARTS INFORMATION:

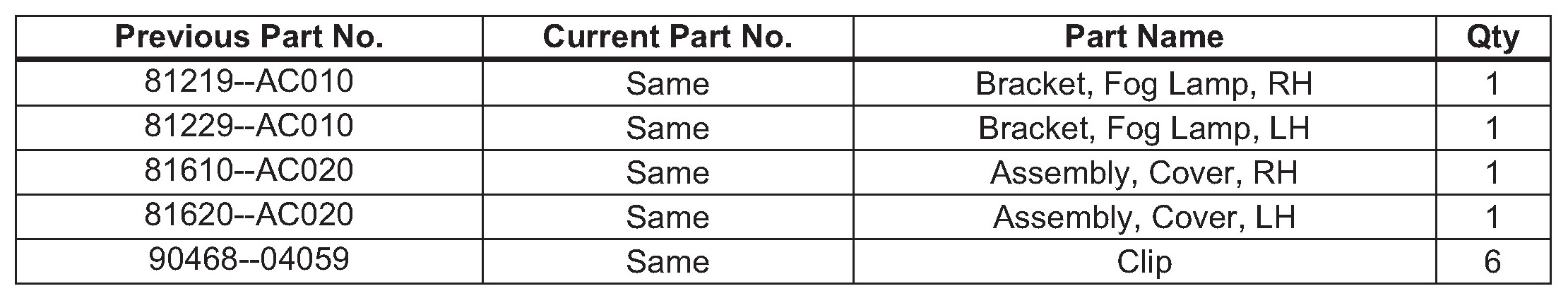

Vehicles without Laser Cruise Control:

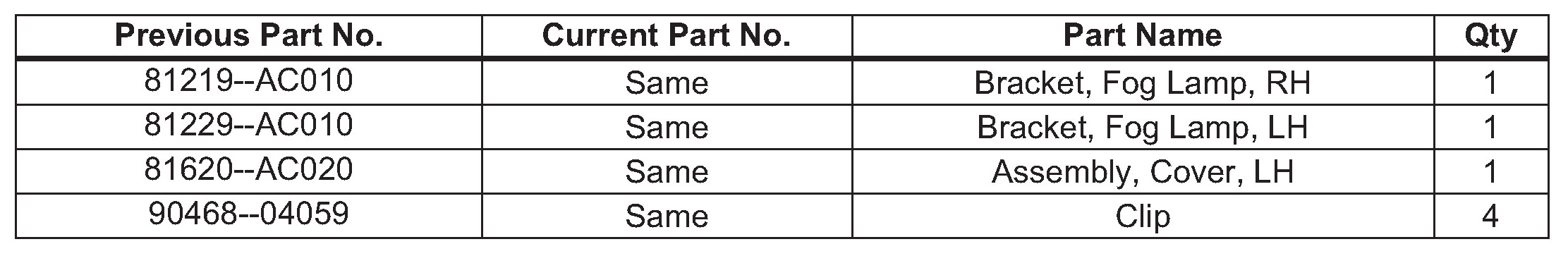

Vehicles with Laser Cruise Control:

REPAIR PROCEDURE:
Replace fog lamp brackets and bumper hole covers.

Refer to ETAS, 2005 or 2006 model year Avalon Repair Manual: Lighting: Fog Lamp Assy LH: Overhaul.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
