Keyless Entry - Smart Key(R) Specification Information
ELECTRICALEL015-06
REVISED
Title:
SMART KEY SPECIFICATIONS
Models:
'04 - '07 Prius, '05 - '08 Avalon, &
'07 - '08 Camry & Camry HV, & '08 Highlander
December 12, 2006
TSB REVISION NOTICE:
^ November 13, 2007: 2007 model year Prius and 2008 model year Avalon, Camry, Camry HV, and Highlander vehicles have been added to Applicable Vehicles.
^ August 17, 2007: 2007 model year Camry HV has been added to Applicable Vehicles.
Previous versions of this TSB should be discarded.
Introduction
Some customers may inquire about the frequency and power output of the Smart Key/Smart Entry Systems used on various models. The Smart Key/Smart Entry systems conform to all applicable FCC rules. This bulletin details the applicable specifications for these systems.
CAUTION:
Implanted pacemakers, cardiac defibrillators, or other electrical medical devices may be affected by radio waves emitted by the Smart Key/Smart Entry Antenna (in detection area). Customers with concerns about these systems and their effects on implanted electronic medical devices should consult their physician or the device manufacturer. This information is also included in the Owner's Manual for each applicable model.
If necessary, details on disabling the Smart Key/Smart Entry functions can be found in the appropriate vehicle Repair Manual. Refer to the Technical Information System (TIS) for additional details.
Applicable Vehicles
^ 2004 - 2007 model year Prius vehicles.
^ 2005 - 2008 model year Avalon vehicles.
^ 2007 - 2008 model year Camry and Camry HV vehicles. 2008 model year Highlander vehicles.
Warranty Information

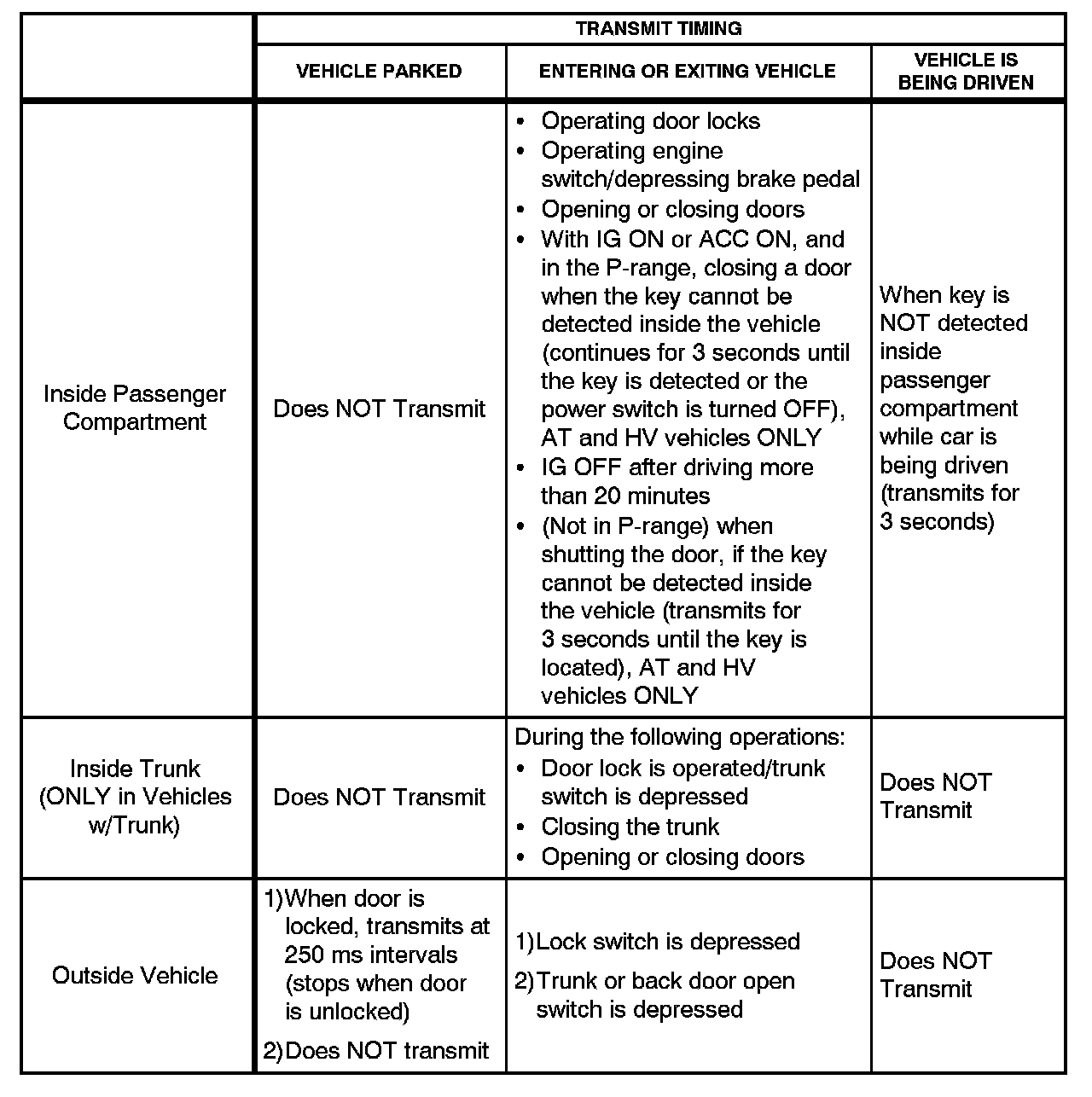

Smart Key Detection Area
Specifications

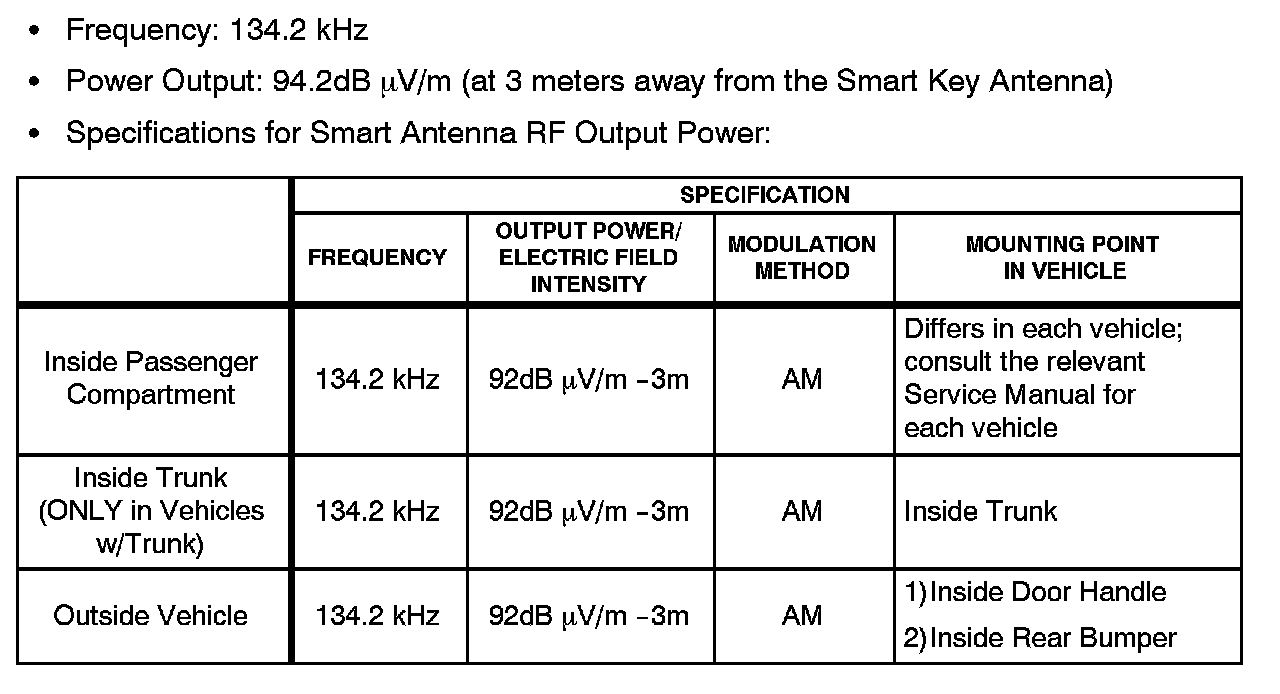

Smart Key Antenna (communication from vehicle to key):
Smart Key Transmitter/Wireless Remote (communication from key to vehicle):
^ Frequency: 312 - 315 mHz
