Canada - Emissions/Fuel - Fuel In EVAP System/MIL/EVAP DTC's Se

Bulletin
2524

Issue Date
June 22, 2006

Market
Canada

Title:
FUEL IN EVAP SYSTEM

Component
ENGINE MECHANICAL

Models
'06 Avalon & '06 - '07 Camry (NAP)

TSB REVISION NOTICE:
- September 06, 2006: The Note in Production Change Information has been updated, an OFP has been added to Warranty Information, and Parts Information has been updated.
Previous versions of this TSB should be discarded.

INTRODUCTION:
Some 2006 model year Avalon and 2006 - 2007 model year Camry vehicles may display one of the following complaints as a result of fuel entering the EVAP system through a damaged vent hose inside the fuel tank:

- Intermittent stalling at idle when at operating temperature.
- Intermittent rough idle when at operating temperature.
- M.I.L. "ON" with at least one of the following DTCs stored:

- P0441 (Evaporative Emission Control System Incorrect Purge Flow)
- P043E (Evaporative Emission System Reference Orifice Clog Up)
- P043F (Evaporative Emission System Reference Orifice High Flow)
- P2401 (Evaporative Emission System Leak Detection Pump Control Circuit Low)
- P2402 (Evaporative Emission System Leak Detection Pump Control Circuit High)
- P2419 (Evaporative Emission System Switching Valve Control Circuit Low)

Production changes have been implemented to prevent this condition from occurring.

APPLICABLE VEHICLES:
- 2006 model year Avalon vehicles produced BEFORE the Production Change Effective VIN shown below.
- 2006 model year Camry (North American produced) vehicles produced at TMMK plant No. 1.
- 2007 model year Camry (North American produced) vehicles produced at TMMK plant No. 1 BEFORE the Production Change Effective VINs shown below.







PRODUCTION CHANGE INFORMATION:

NOTE: Vehicles produced at TMMK plant No. 1 can be identified with a "0" or "1" as the 12th digit in the VIN. For Example: 4T1B*3#K*6U0#####.

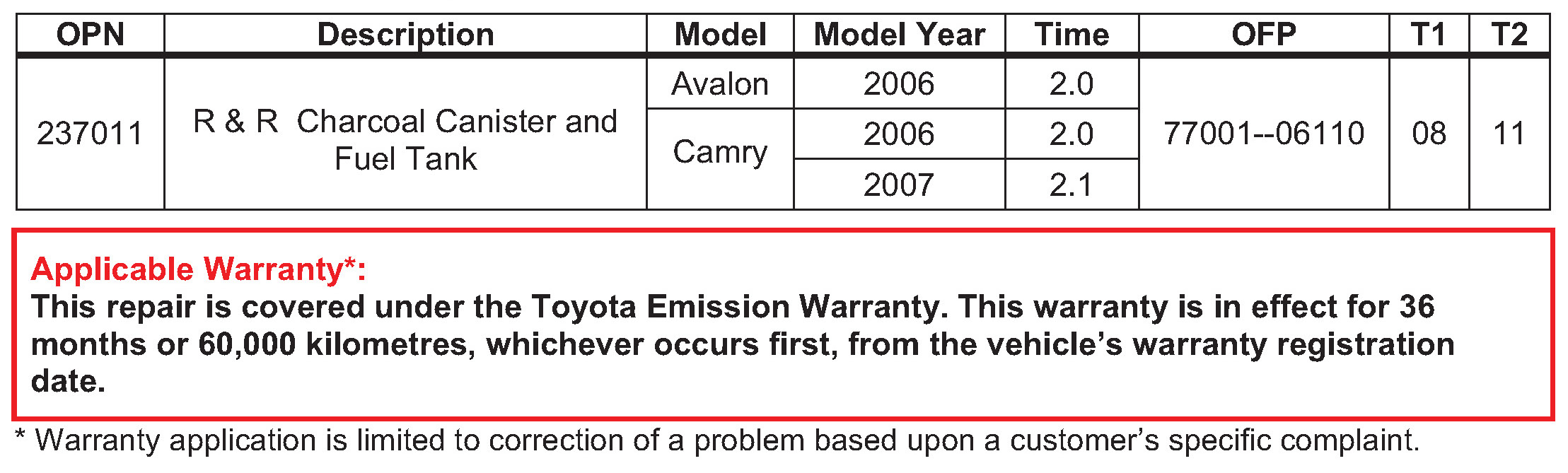

WARRANTY INFORMATION:







PARTS INFORMATION:

REQUIRED SSTs:

1. Duplicate customer complaint (stalling or rough idle) or confirm if EVAP system DTCs are stored using the Diagnostic Tester.

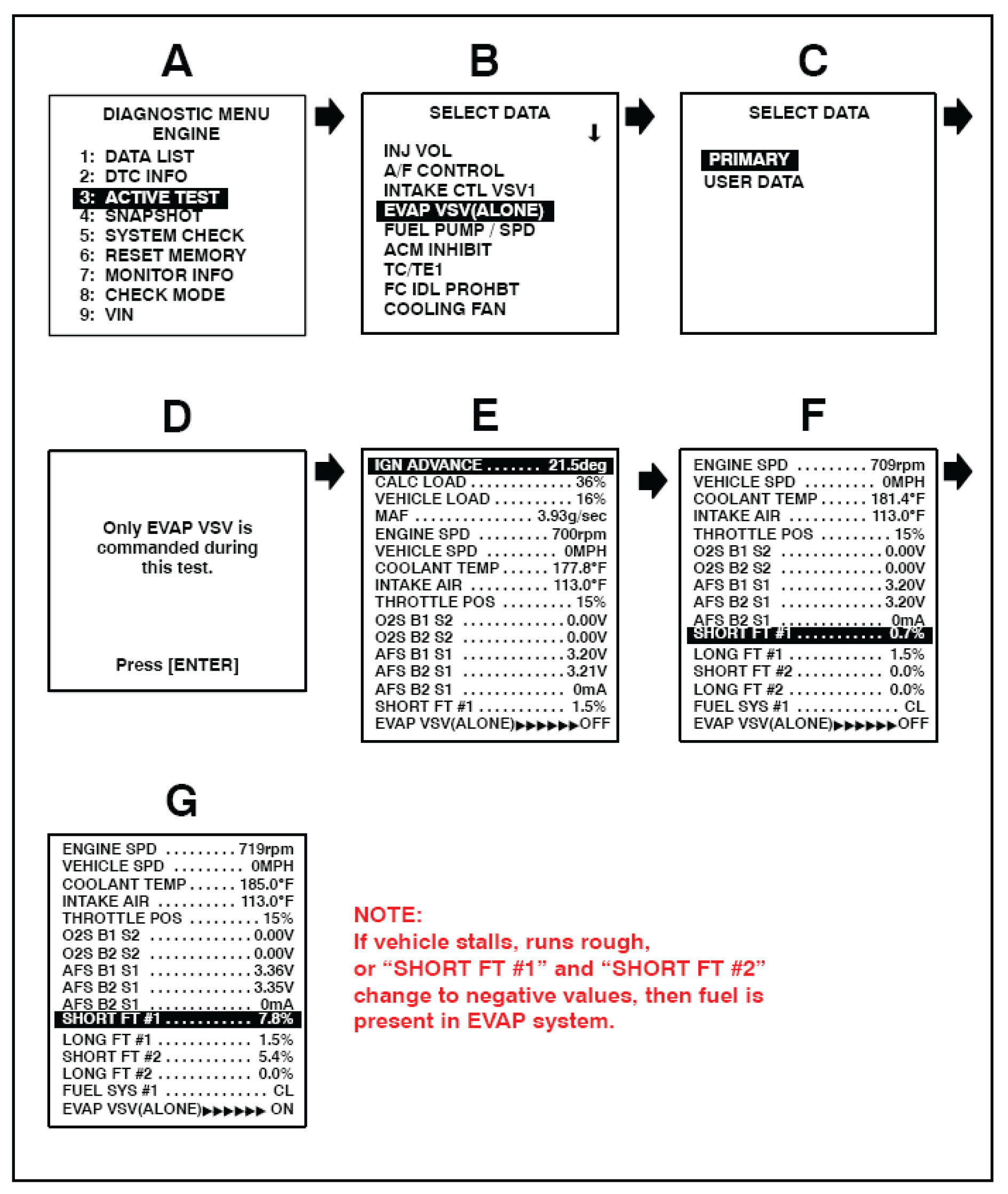

2. Confirm if condition (stalling or rough idle) occurs when Purge VSV is turned "ON" with engine running at idle.

3. Check for fuel in the EVAP system by disconnecting the vent line from the charcoal canister at the trap filter.
Is liquid fuel present in the EVAP system?
- If YES - Go to Step 4.
- If NO - This TSB does NOT apply. Continue diagnostics per the Repair Manual.

4. Remove the fuel tank assembly and the charcoal canister assembly.

Refer to ETAS, applicable model and model year Repair Manual:
- 2006 model year Avalon Repair Manual:
- 2GR-FE Fuel: Fuel Tank: Removal, Disassembly, Reassembly, Installation AND
- 2GR-FE Emission Control: Canister: Removal, Inspection

- 2006 model year Camry Repair Manual:
- Fuel: Fuel Tank Assy: Replacement AND
- Emission Control: Charcoal Canister Assy: Replacement.

- 2007 model year Camry Repair Manual:
- 2AZ-FE / 2GR-FE Fuel: Fuel Tank: Removal, Installation AND
- 2AZ-FE / 2GR-FE Emission Control: Charcoal Canister: Removal, Inspection







5. Drain all remaining fuel in the EVAP system lines (including the trap filter assembly).
6. Install the NEW fuel tank assembly and the NEW charcoal canister assembly.
