Shift Interlock: Testing and Inspection

SHIFT LOCK SYSTEM (ATM)

ON-VEHICLE INSPECTION
1. CHECK SHIFT LOCK OPERATION
a. Move the shift lever to the P position.
b. Turn the ignition switch off.
c. Check that the shift lever cannot be moved to any position other than P.
d. Turn the ignition switch on (IG), depress the brake pedal and check that the shift lever can be moved to another position.
If operation can not be done as specified, inspect the shift lock control unit.
2. CHECK SHIFT LOCK RELEASE BUTTON OPERATION
a. Using a screwdriver, remove the shift lock release cover.
b. When operating the shift lever with the shift lock release button pressed, check that the lever can be moved to any position other than P.
If operation can not be done as specified, check the shift lever assembly installation condition.
3. CHECK KEY INTERLOCK OPERATION
a. Turn the ignition switch on (IG).
b. Depress the brake pedal and move the shift lever to any position other than P.
c. Check that the ignition key cannot be turned to LOCK position.
d. Shift the shift lever to P position, turn the ignition key to the LOCK posit ion and check that the ignition key can be removed.

4. INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY

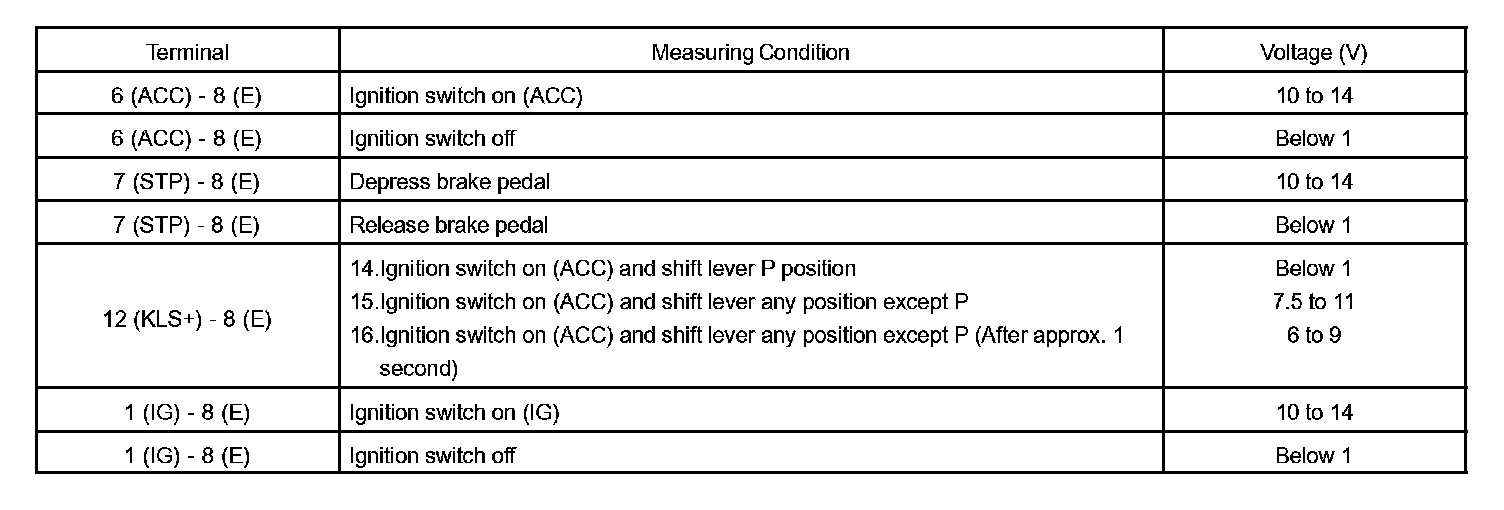

a. Measure the voltage according to the value(s) in the table.

HINT: Do not disconnect the shift lock control unit assembly connector.








b. Measure the resistance according to the value(s) in the table.

HINT:
Do not disconnect the shift lock control unit assembly connector.
If the resistance is not as specified, replace the shift lever assembly.
