Symptom Related Diagnostic Procedures

PROBLEM SYMPTOMS TABLE

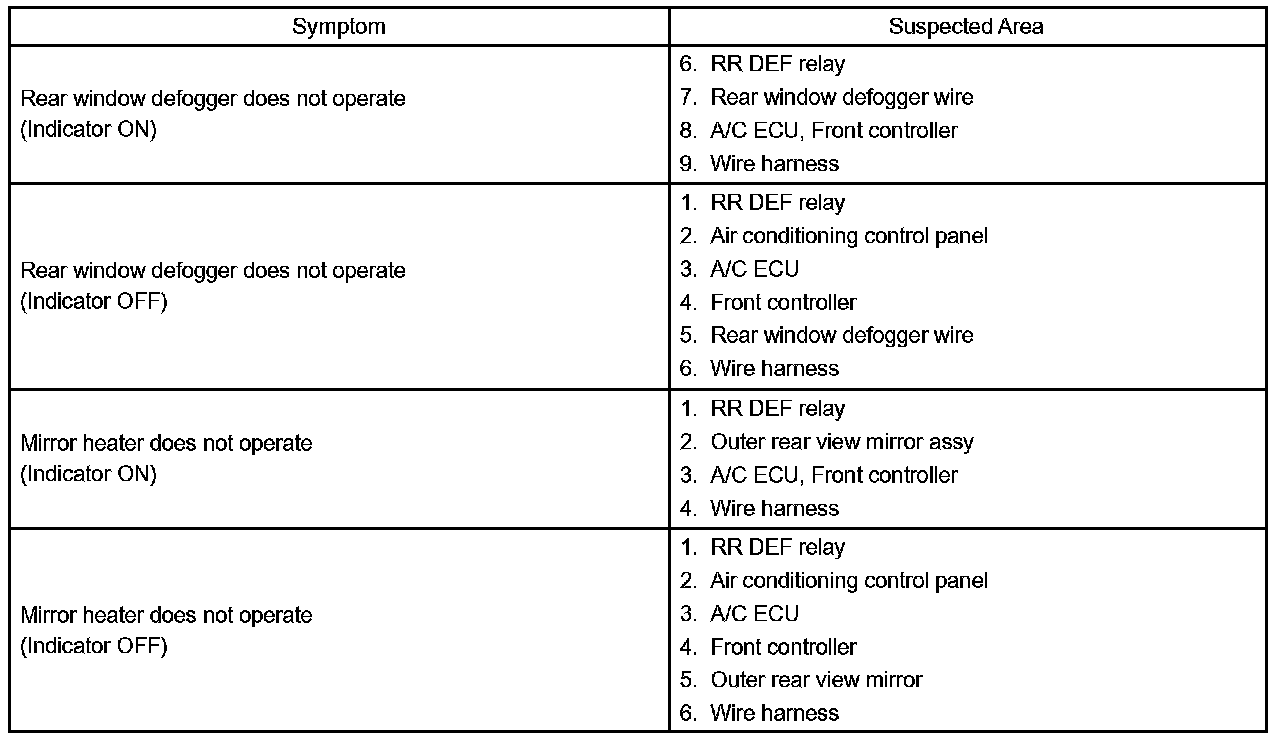

Problem Symptoms Table - Window Defogger System:

If a normal system code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table and proceed to the relevant troubleshooting.

HINT: Inspect the "Fuse" and "Relay" before confirming the suspected areas shown in the table. Inspect each suspected area in numerical order, in relation to the corresponding symptom.
If the malfunction still exists after checking and confirming that all the circuits are normal, replace the ECM.
