Front Wiper Motor Circuit

FRONT WIPER MOTOR CIRCUIT

CIRCUIT DESCRIPTION
The front controller controls the wiper motor. Even if the ECU is malfunctioning, the wiper motor circuit is designed so that the wipers can still function in HI mode.

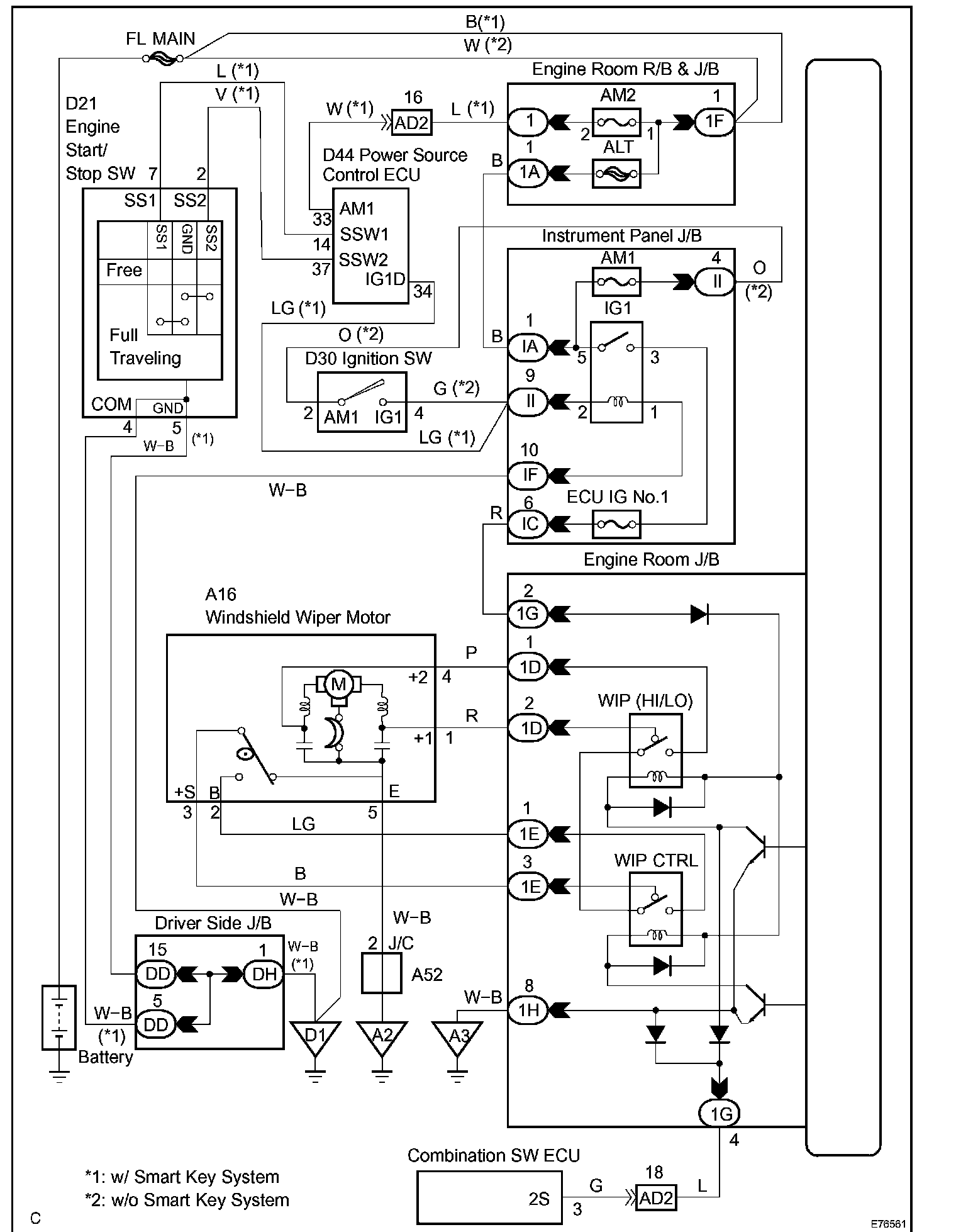

Wiring Diagram:

Step 1:

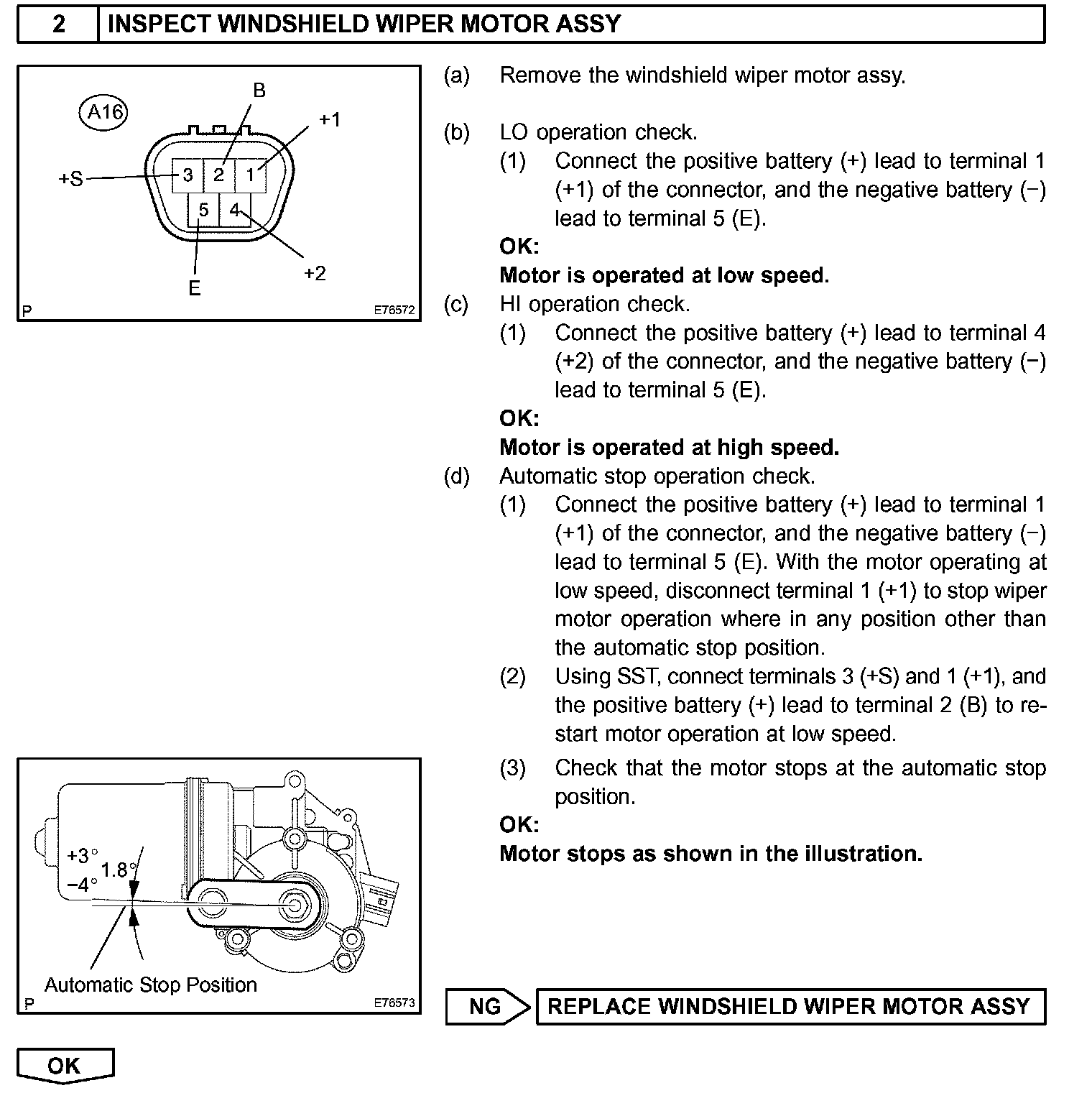

Step 2:

Step 3:

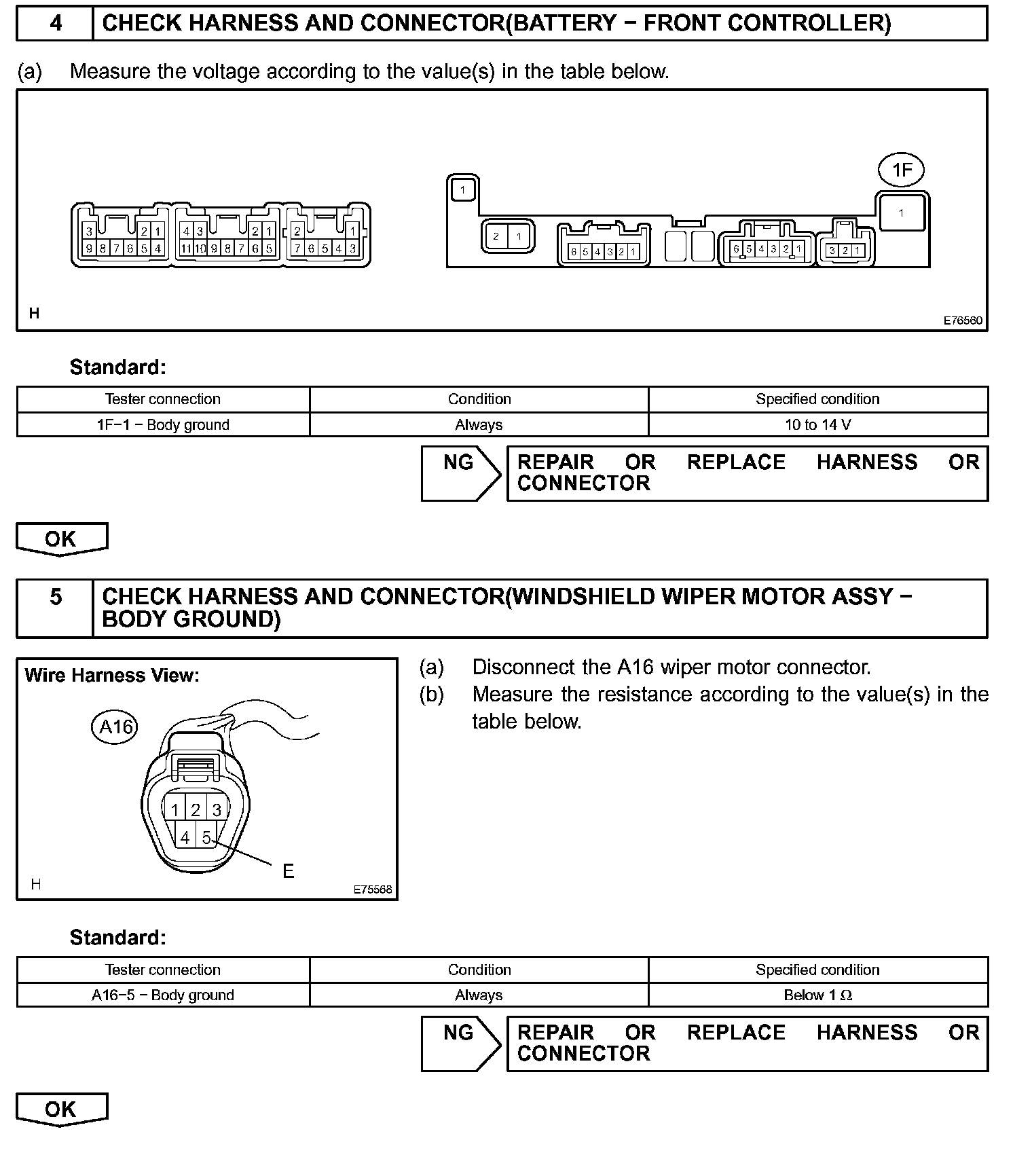

Step 4-5:

Step 6-7:

INSPECTION PROCEDURE
