Windshield Washer Spray Nozzle: Adjustments

ADJUSTMENT




1. ADJUST WINDSHIELD WASHER NOZZLE

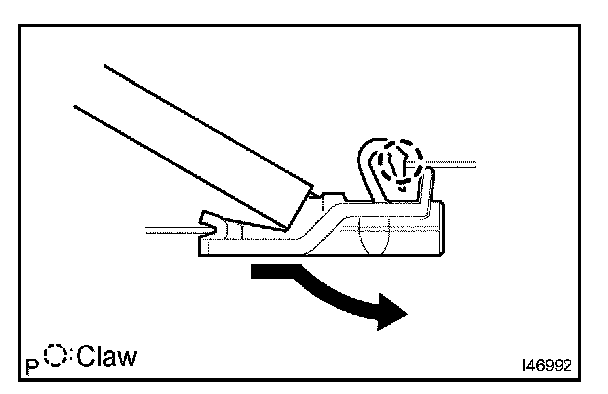

a. Using a screwdriver, separate the washer nozzle as shown in the illustration.

NOTE: Be careful not to damage the glass.

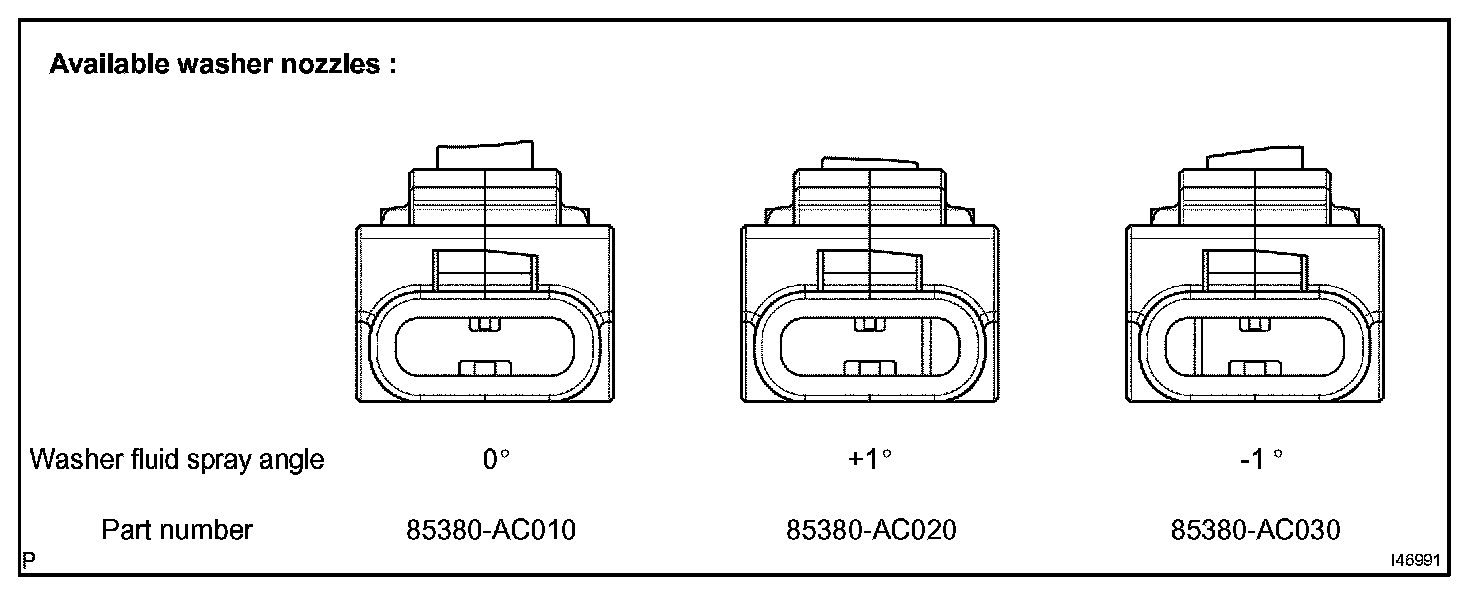

b. Select a washer nozzle so that the contact area is within the standard. Replace the nozzle with the selected one.
