B1660

DTC B1660/43 PASSENGER AIRBAG ON/OFF INDICATOR LIGHT CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The passenger airbag ON/OFF indicator light circuit consists of the airbag sensor assy center and the clock assy.

This circuit indicates the operation condition of the front passenger airbag assy and the front seat airbag assy RH.

DTC B1660/43 is recorded when a malfunction is detected in the passenger airbag ON/OFF indicator light circuit.

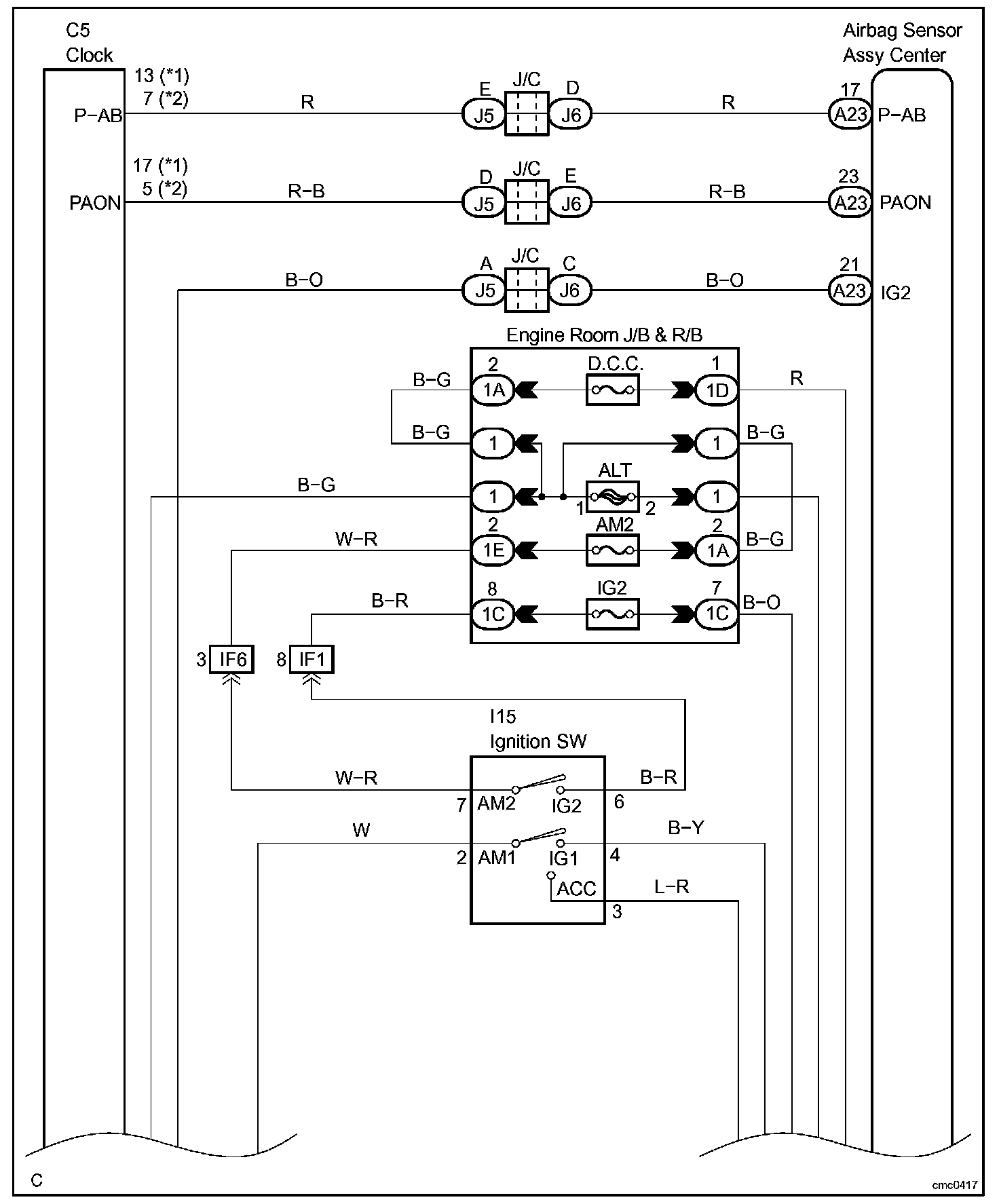

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

Step 1:

Step 2-3:

Step 4-5:

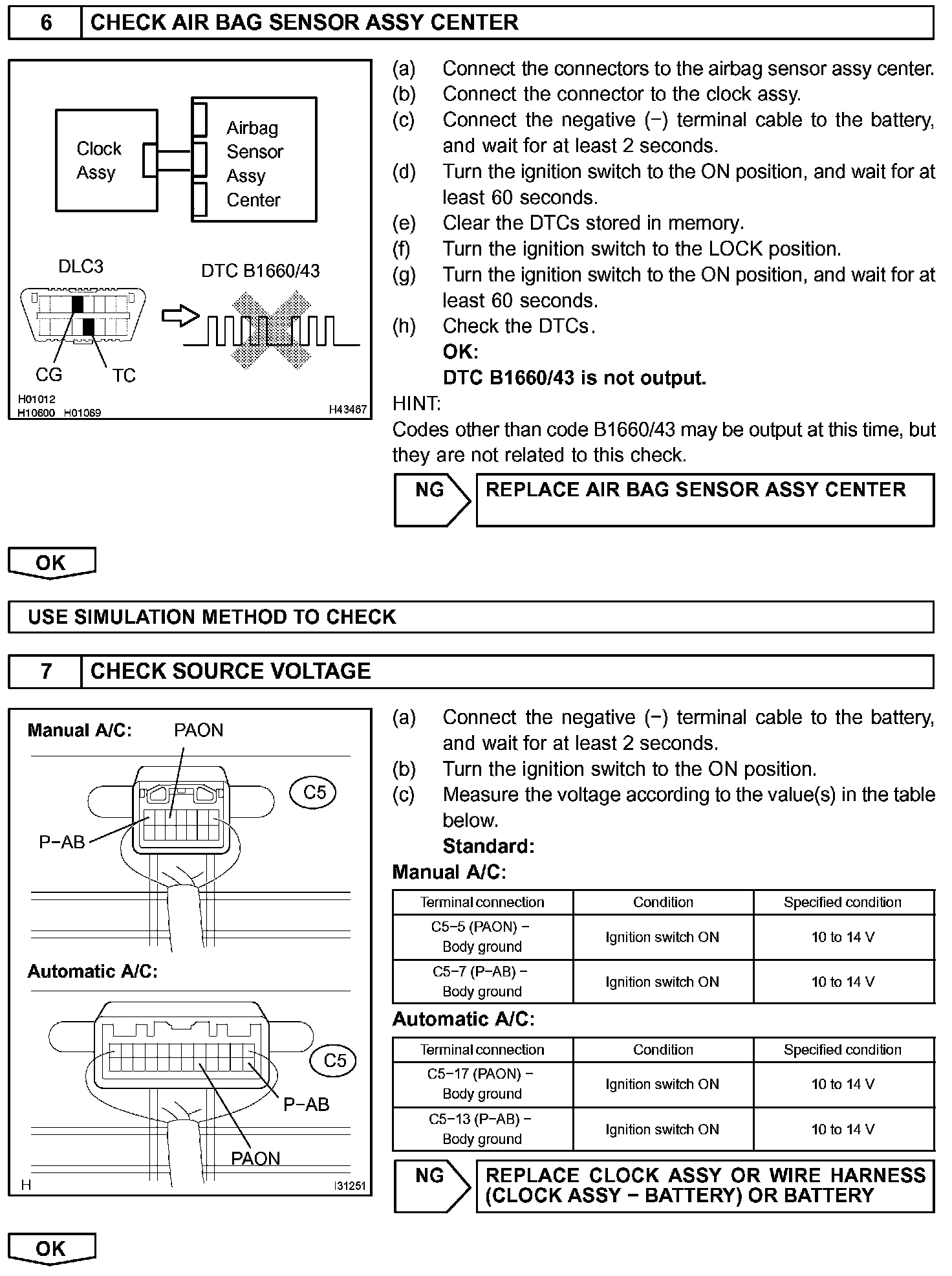

Step 6-7:

Step 8-9:

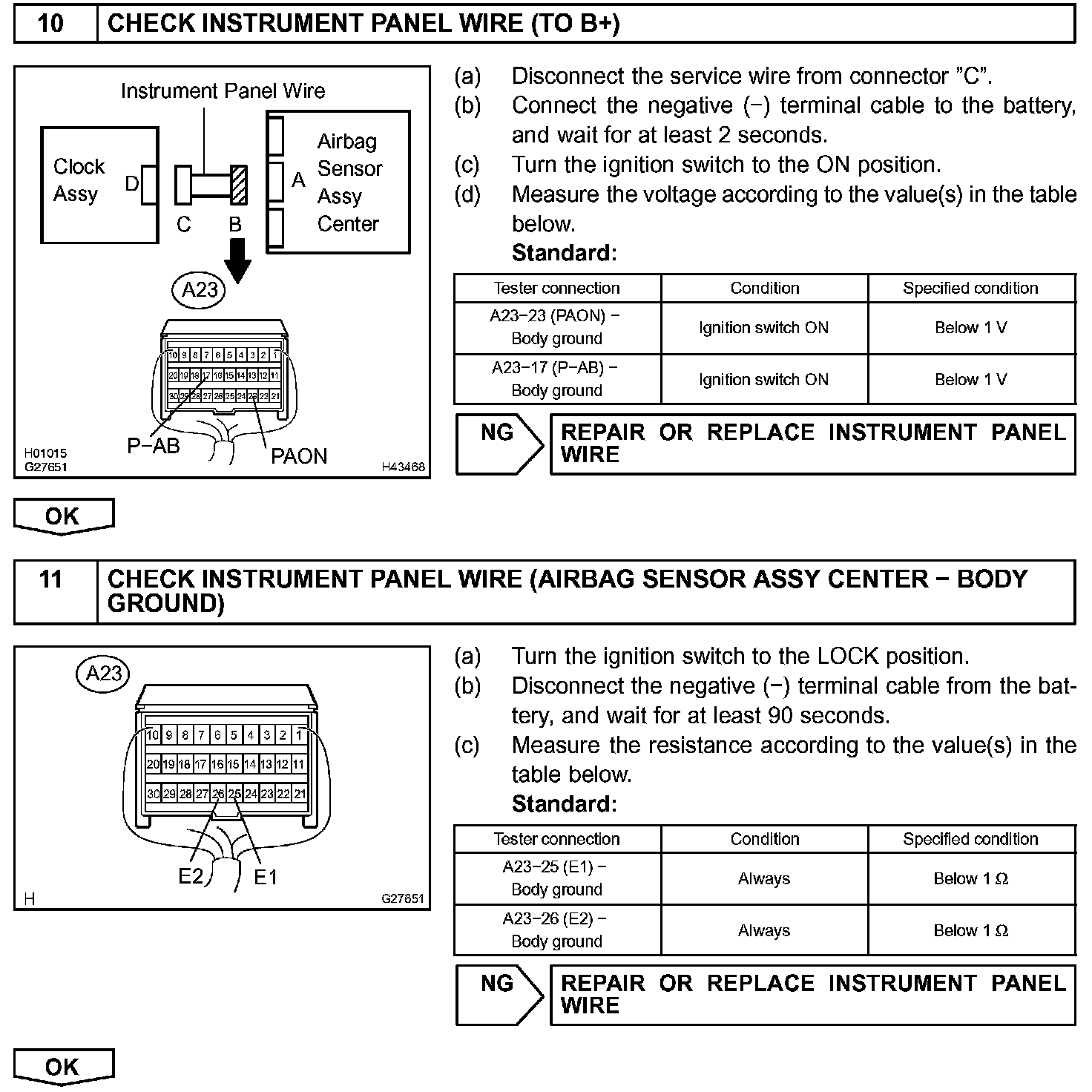

Step 10-11:

Step 12:

CIRCUIT PROCEDURE
