C1225

DTC C0226/21 SFR SOLENOID CIRCUIT
DTC C0236/22 SFL SOLENOID CIRCUIT
DTC C0246/23 SRR SOLENOID CIRCUIT
DTC C0256/24 SRL SOLENOID CIRCUIT
DTC C1225/25 SMC SOLENOID CIRCUIT

CIRCUIT DESCRIPTION

DTC Detecting Condition:

This solenoid turns on when signals are received from the ECU and controls the pressure acting on the wheel cylinders to control braking force.

Wiring Diagram:

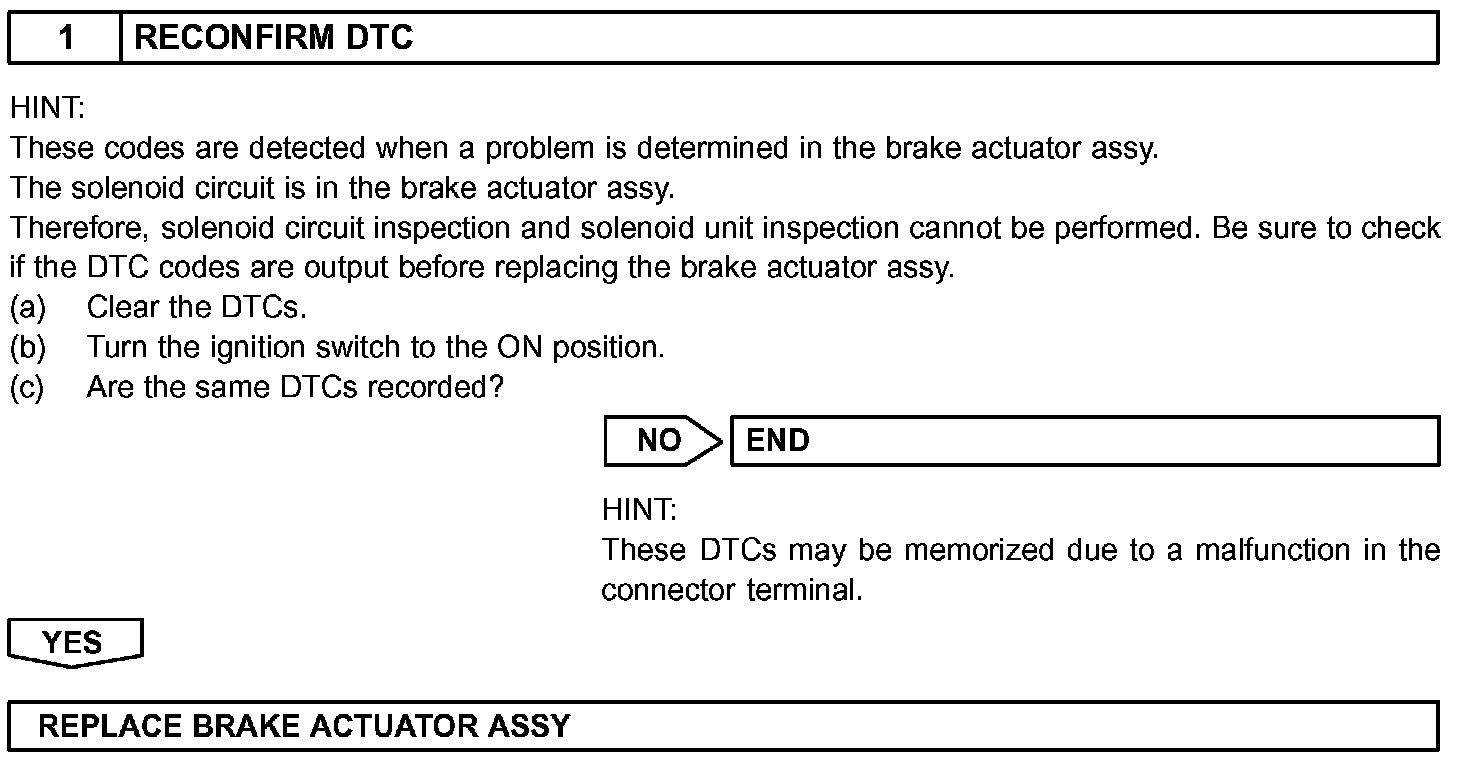

Step 1:

INSPECTION PROCEDURE

NOTE: When replacing the brake actuator assembly, perform zero point calibration.
