ABS w/ EBD & BA & TRAC & VSC System

DIAGNOSTIC TROUBLE CODE CHART

HINT: If a malfunction code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, turn to the respective "DTC No." in the DTC chart.

C0200/31-C1244/44:

C1245/45-U0124/95:

DTC chart of ABS

HINT: In some cases, the hand-held tester cannot be used when the ABS warning light remains on.

C1201/51-C1223/43:

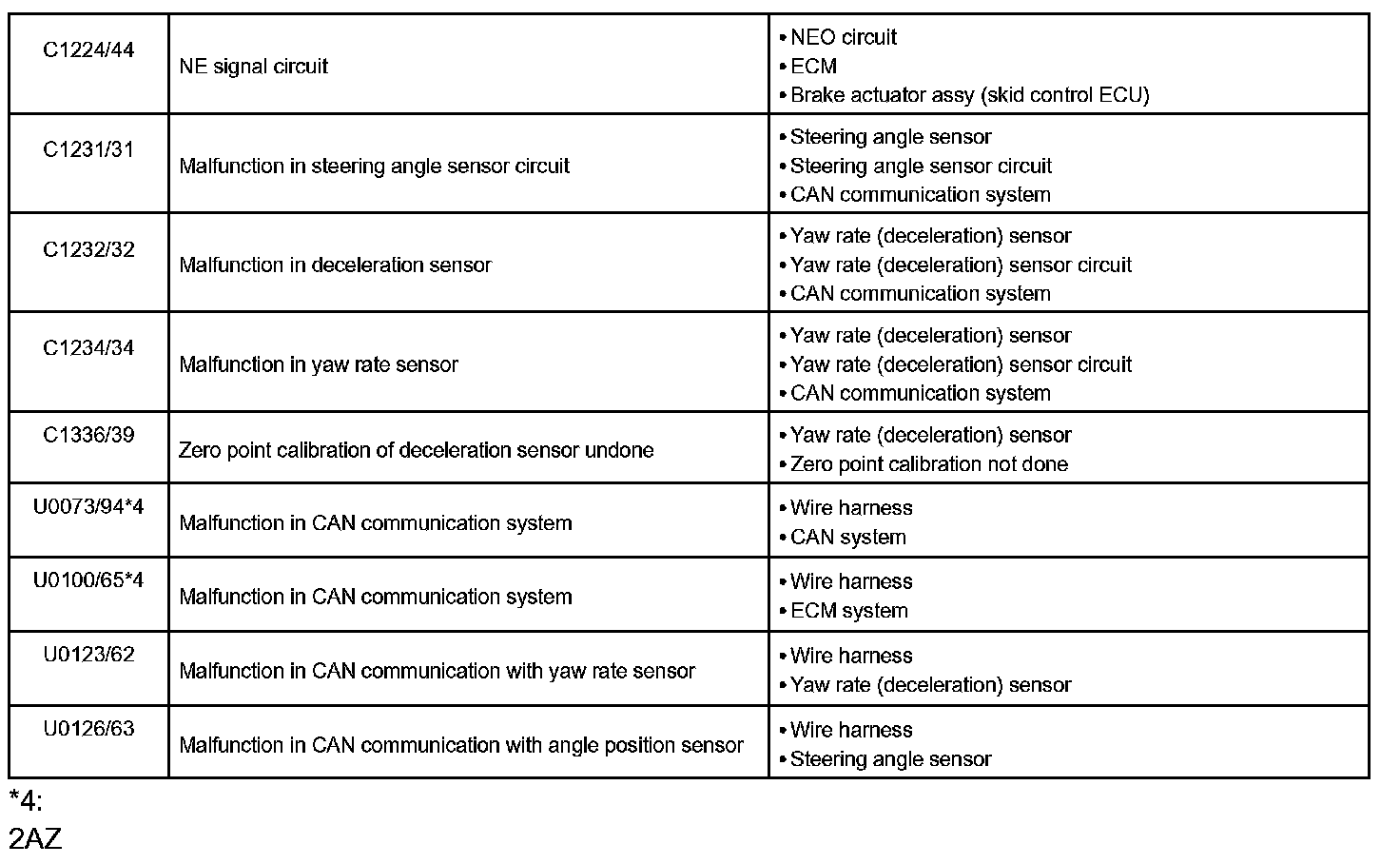

C1224/44-U0126/63:

DTC chart of VSC

HINT: In some cases, the hand-held tester cannot be used when the VSC warning light remains on.

C1271/71-C0371/71:

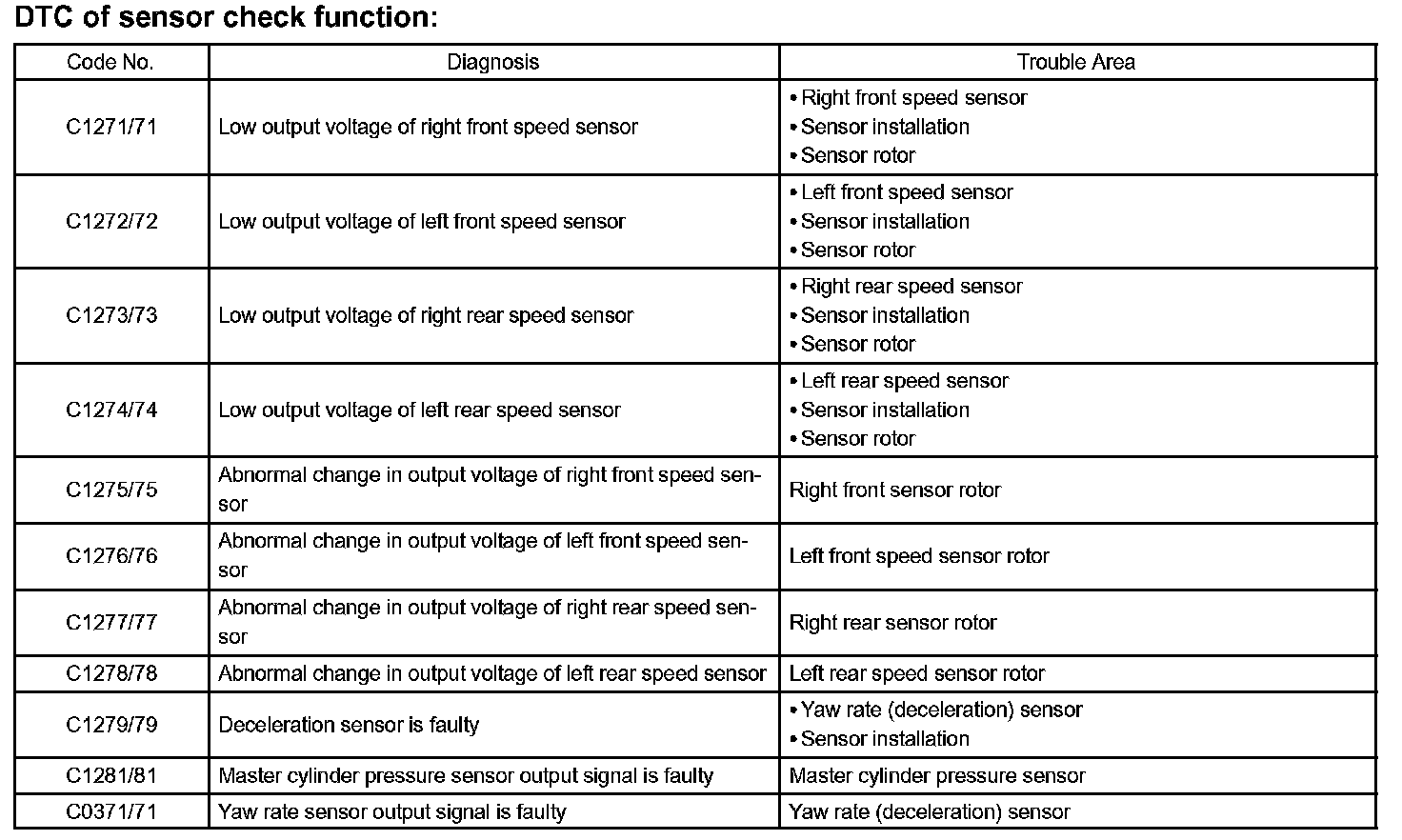

DTC of sensor check function
