Radio/Stereo: Service and Repair

Audio & Visual System Location:

RADIO RECEIVER ASSEMBLY

REPLACEMENT

1. REMOVE AIR CONDITIONER CONTROL ASSEMBLY
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER

3. REMOVE RADIO RECEIVER ASSEMBLY
a. Insert a screwdriver at indicated point and remove the radio receiver assembly from instrument cluster finish panel sub-assembly center.

4. REMOVE RADIO BRACKET NO.1

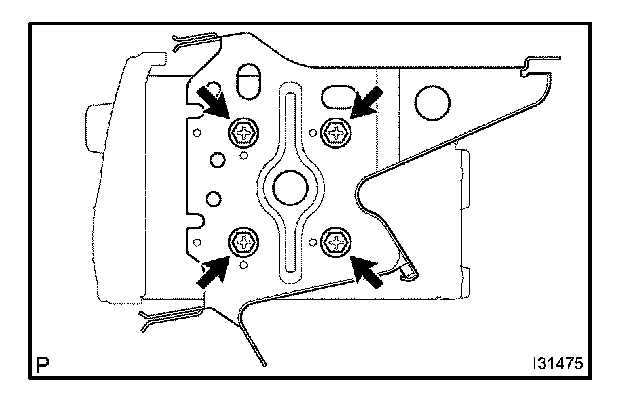

a. Remove the 4 screws and radio bracket No.1.

5. REMOVE RADIO BRACKET NO.2
a. Remove the 4 screws and radio bracket No.2.
