Pinout Values and Diagnostic Parameters

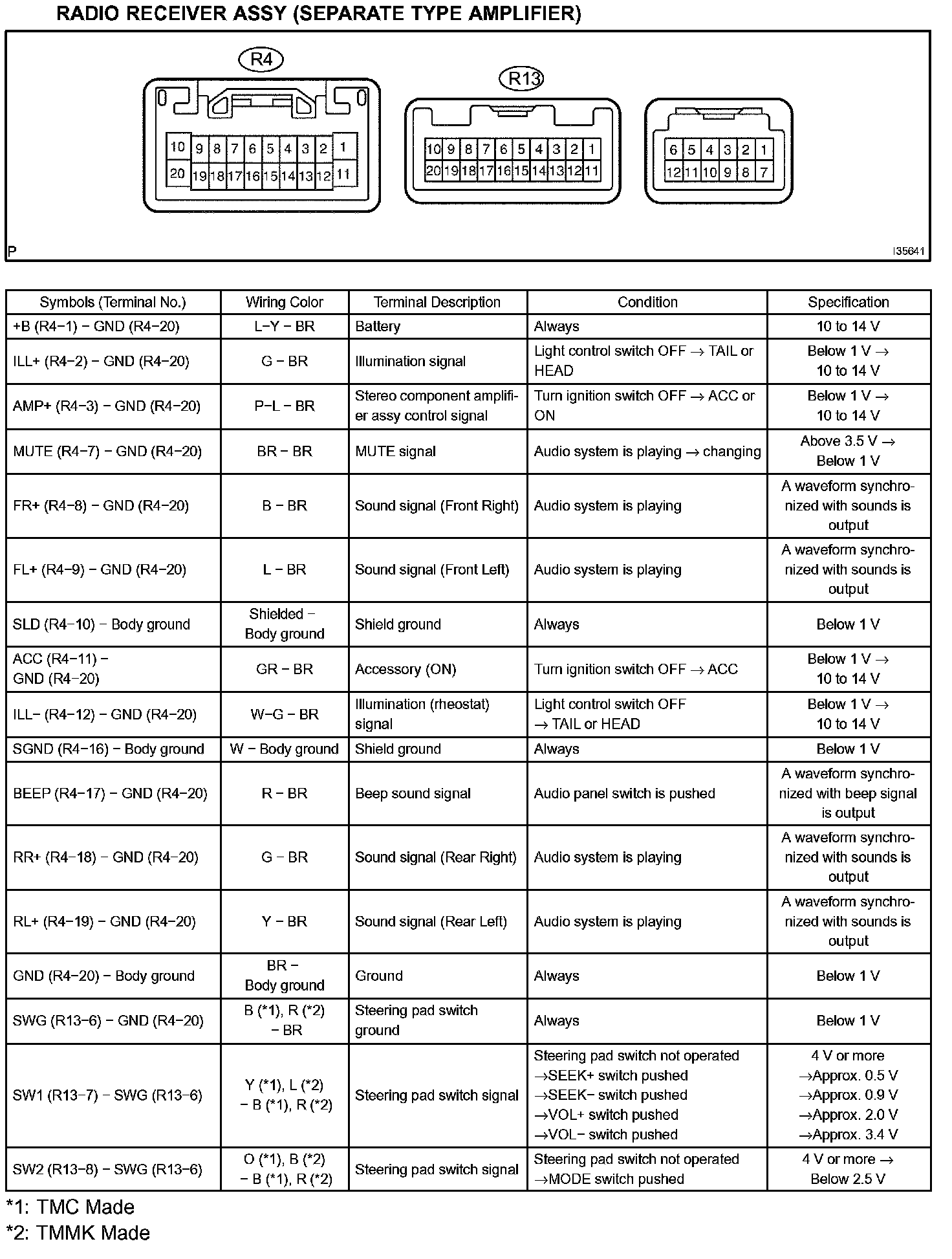

Terminals Of Control Module/Pinouts - Radio Receiver Assy (Separate Type Amplifier):

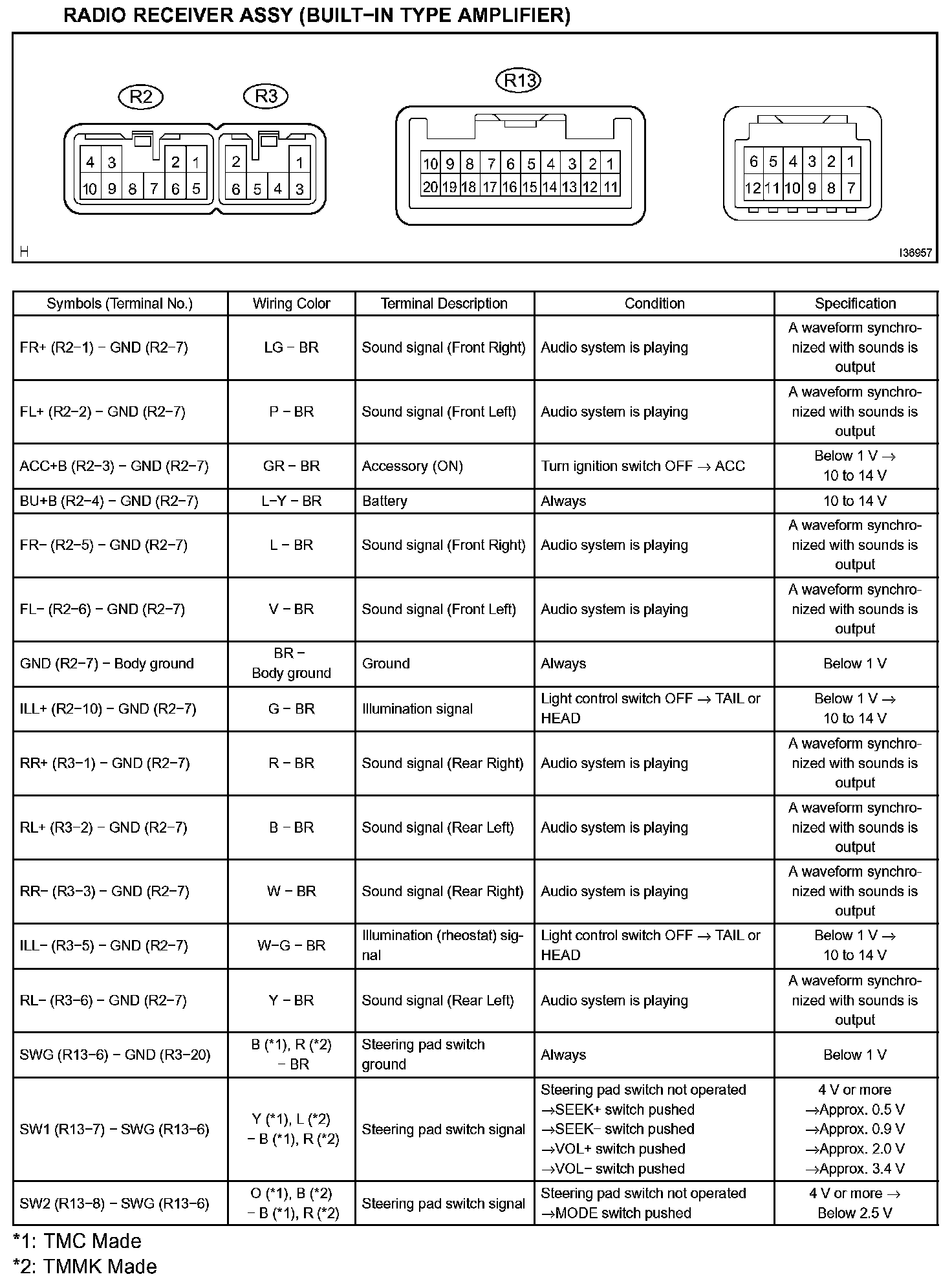

Terminals Of Control Module/Pinouts - Radio Receiver Assy (Built-in Type Amplifier):



Terminals Of Control Module/Pinouts - Stereo Component Amplifier Assy (Part 1):



Terminals Of Control Module/Pinouts - Stereo Component Amplifier Assy (Part 2):
