Trunk / Liftgate: Adjustments
ADJUSTMENT1. INSPECT LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY
a. Check that the clearance is within the standard value.
2. REMOVE LUGGAGE COMPARTMENT DOOR COVER
3. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
4. REMOVE SPARE WHEEL COVER ASSEMBLY
5. REMOVE LUGGAGE COMPARTMENT SIDE COVER SUB-ASSEMBLY RH
6. REMOVE LUGGAGE COMPARTMENT TRIM HOOK NO.1
7. REMOVE REAR FLOOR FINISH PLATE
8. ADJUST LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY

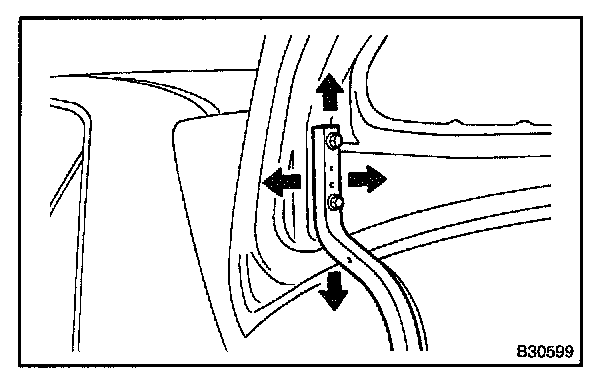

a. For forward/rearward and right/left adjustments, loosen the bolts.
b. For a vertical adjustment of the door front end, increase or decrease the number of the washers between the hinge and door.
c. Tighten the bolts after adjustment.
Torque: 8.0 N.m (82 kgf.cm, 71 ft.lbf)

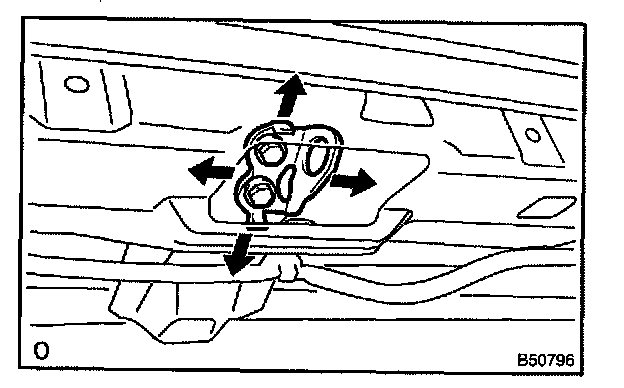

d. Using a hammer and a brass bar, tap the striker to adjust it.
e. Tighten the bolts after adjustment.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
