Outer Rear View Mirror Sub-Assy LH
REPLACEMENTHINT: In the RH side, work in the same procedure as in the LH side.
1. REMOVE OUTER REAR VIEW MIRROR SUB-ASSEMBLY LH (TMC made)
a. Tape the lower part of outer mirror body with protection tape.

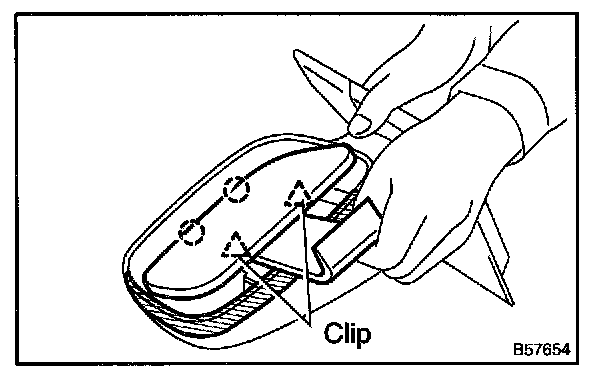

b. Using a roof-molding remover, disengage the clips placed in the lower part of mirror.
c. Pull out the outer rear view mirror.
2. REMOVE OUTER REAR VIEW MIRROR SUB-ASSEMBLY LH (TMMK made)
a. Tape the upper part of outer mirror body with protection tape.
b. Using a roof-moulding remover, disengage the clips placed in the upper part of the mirror.
c. Pull out the outer rear view mirror.
3. INSTALL OUTER REAR VIEW MIRROR SUB-ASSEMBLY LH (TMC made)

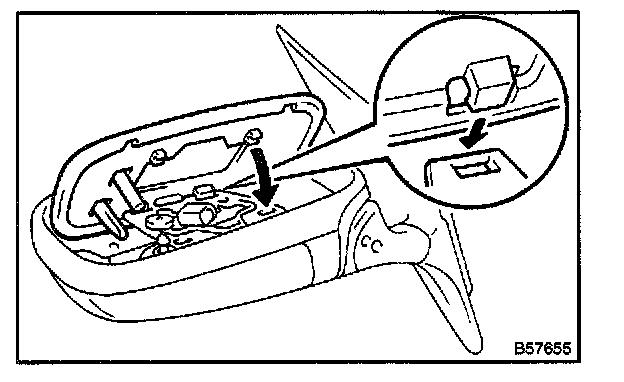

a. Insert the claws placed in the upper part of backside of the mirror into the actuator hole.
b. Set the mirror in the actuator.
c. Insert the lower portion of mirror to engage the 2 clips securely.
4. INSTALL OUTER REAR VIEW MIRROR SUB-ASSEMBLY LH (TMMK made)
a. Insert the claws placed in the lower part of backside of the mirror into the actuator hole.
b. Set the mirror in the actuator.
c. Insert the upper portion of mirror to engage the 2 clips securely.
