Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2006
>>
Camry V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Diagrams
>>
Exploded Views
Exploded Views

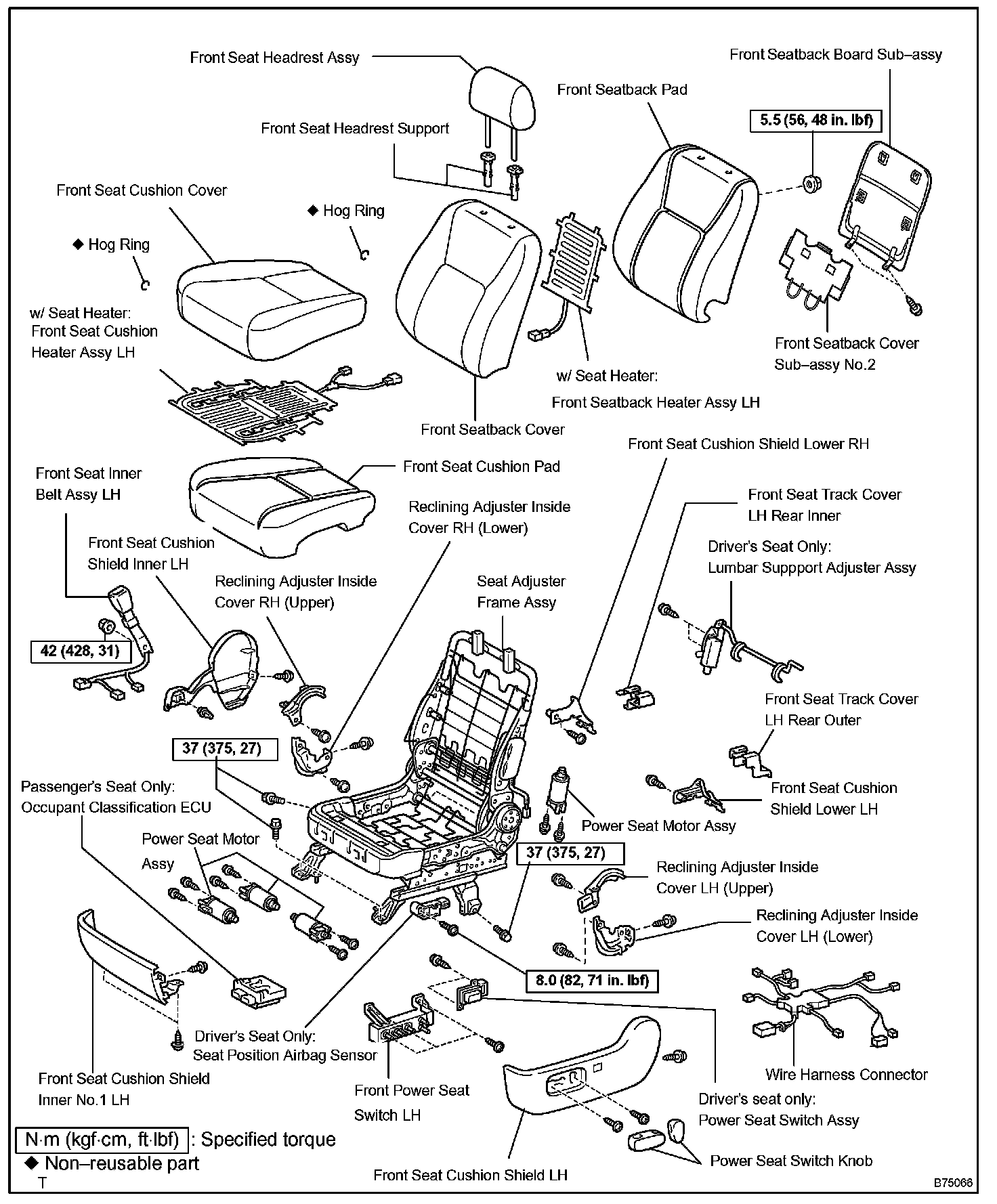

Front Seat Assembly (Power Seat Type):

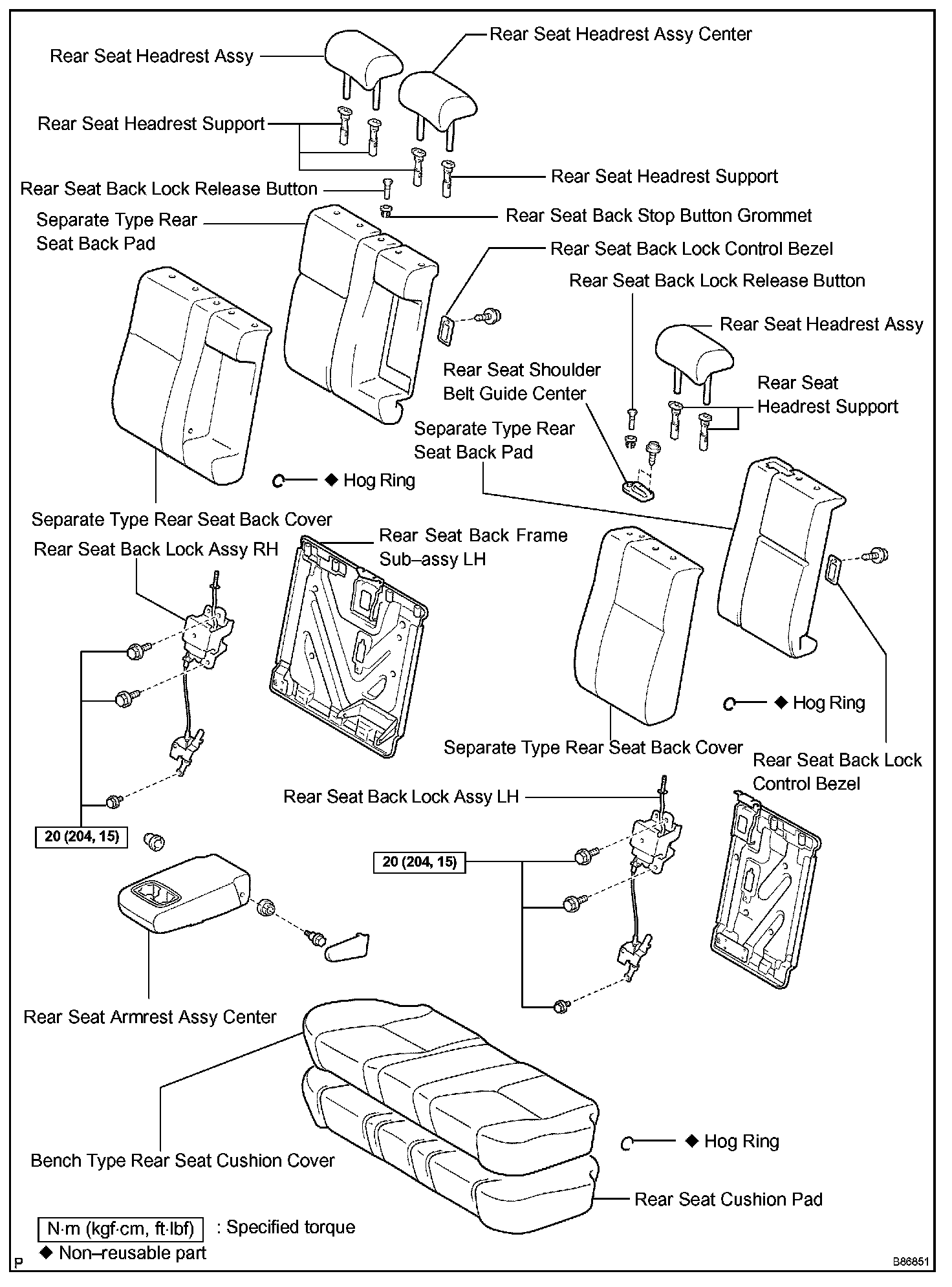

Rear Seat Assembly:
Front Seat Assembly (Manual Seat Type):
Rear Seat Assembly:
