Rear Seat Assembly

Rear Seat Assembly:

Rear Seat Assembly:

OVERHAUL

HINT:
- Installation is in the reverse order of removal.
- Only installation procedures requiring additional information are included.
- A bolt without a torque specification is shown in the standard bolt chart.

1. REMOVE REAR DOOR SCUFF PLATE LH
2. REMOVE REAR DOOR SCUFF PLATE RH




3. REMOVE REAR SEAT CUSHION ASSEMBLY

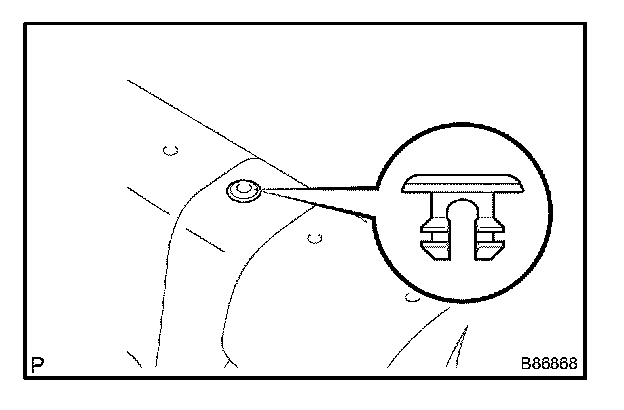

a. Pull up the 2 portions of the rear seat cushion assembly as shown in the illustration and remove it.

A: 100 mm (3.94 in.) or less

NOTE: In this case, hold the base of the clip up to prevent the cushion frame from being distorted.

4. REMOVE REAR SEAT BACK ASSEMBLY LH

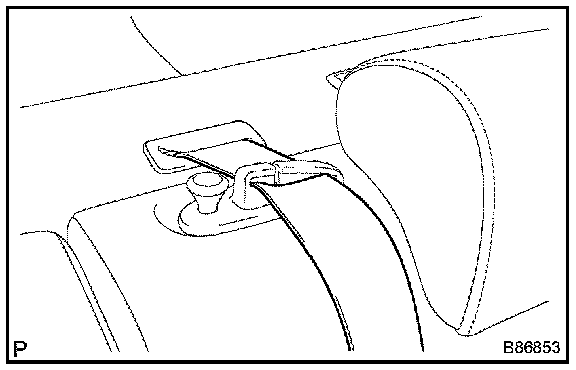

a. Remove the rear seat belt from the rear seat shoulder belt guide center.

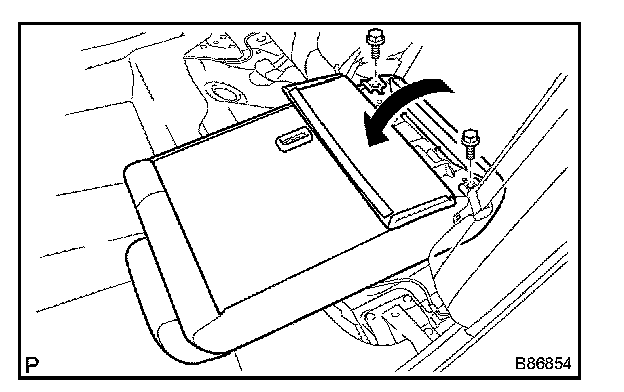

b. Fold the rear seat assembly LH forward and open the separate type rear seat back cover.
c. Remove the 2 bolts and the rear seat back assembly LH.

5. REMOVE REAR SEAT BACK ASSEMBLY RH

HINT: Use the same procedures for the RH side and LH side.




6. REMOVE REAR SIDE SEAT BACK ASSEMBLY LH
a. Remove the bolt and the rear side seat back assembly LH as shown in the illustration.

7. REMOVE REAR SIDE SEAT BACK ASSEMBLY RH

HINT: Use the same procedures for the RH side and LH side.




8. REMOVE REAR SEAT BACK HINGE SUB-ASSEMBLY LH

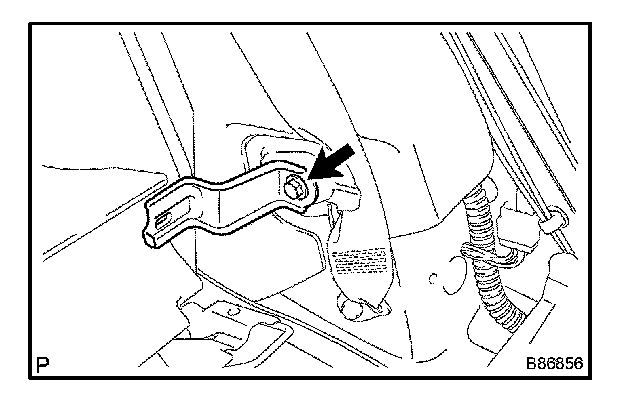

a. Remove the bolt and the rear seat back hinge sub-assembly LH.

9. REMOVE REAR SEAT BACK HINGE SUB-ASSEMBLY RH

HINT: Use the same procedures for the RH side and LH side.




10. REMOVE REAR SEAT BACK HINGE SUB-ASSEMBLY CENTER

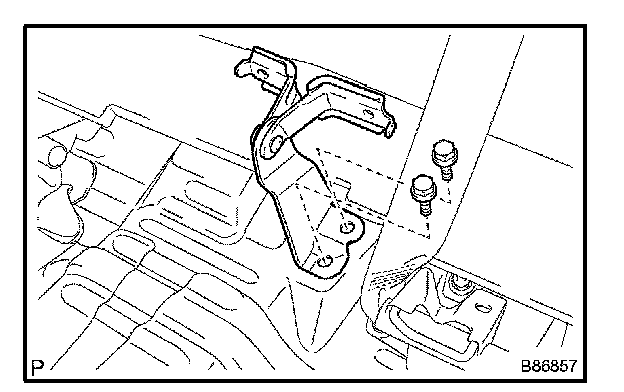

a. Remove the 2 bolts and the rear seat back hinge sub-assembly center.







11. REMOVE BENCH TYPE REAR SEAT CUSHION COVER

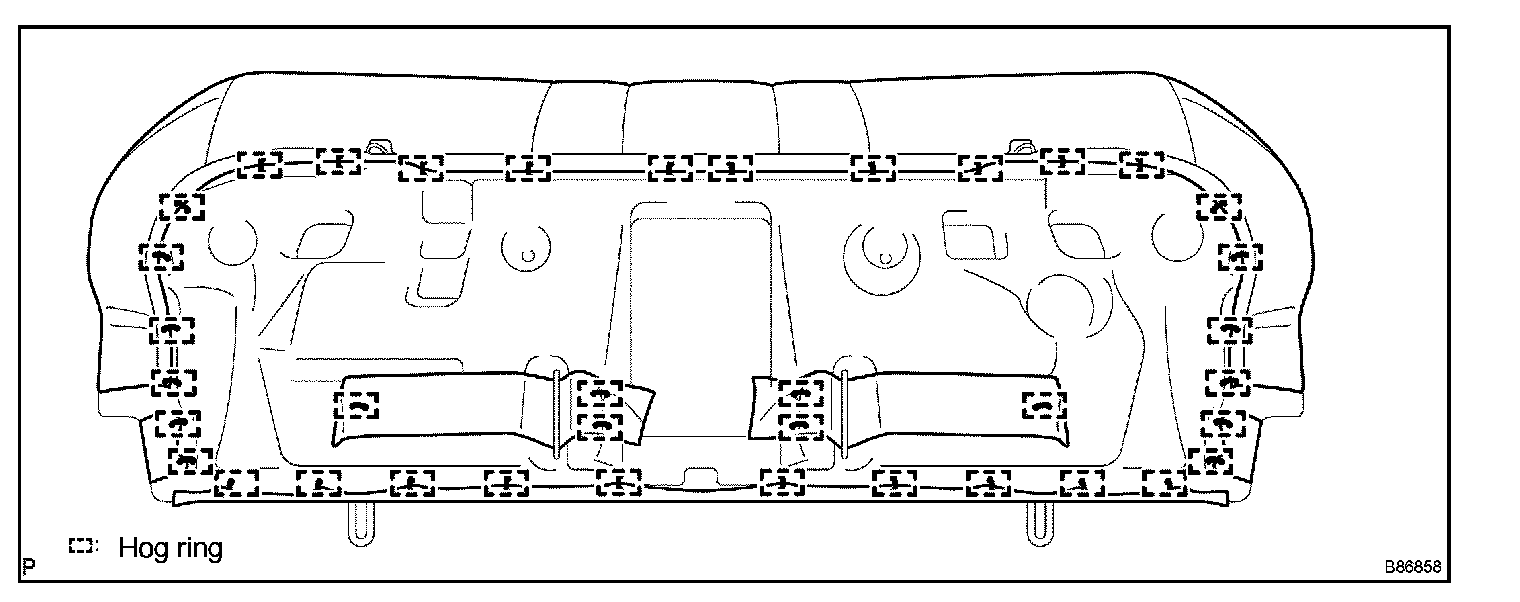

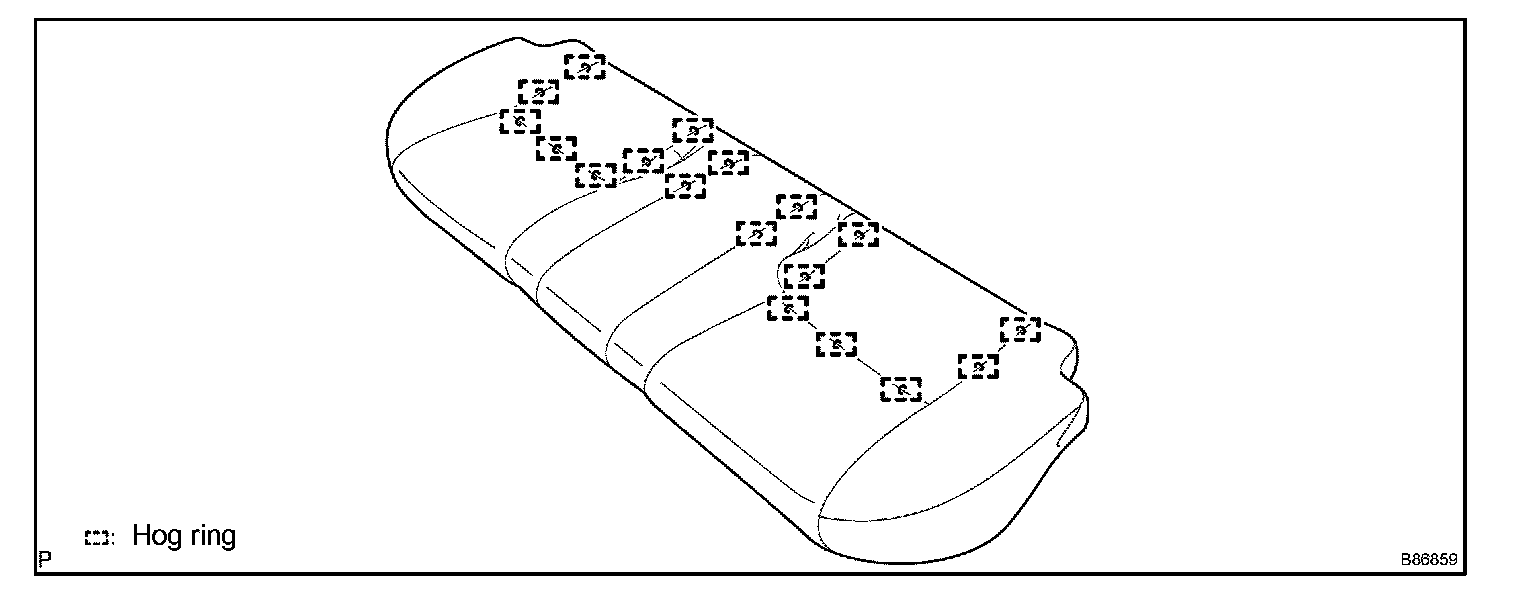

a. Remove the 56 hog rings and the bench type rear seat cushion cover.

12. REMOVE REAR SEAT HEADREST ASSEMBLY
13. REMOVE REAR SEAT HEADREST ASSEMBLY CENTER




14. REMOVE REAR SEAT BACK LOCK RELEASE BUTTON
a. Remove the rear seat back lock release button as shown in the illustration.

HINT: Use the same procedures for the RH side and LH side.




15. REMOVE REAR SEAT SHOULDER BELT GUIDE CENTER

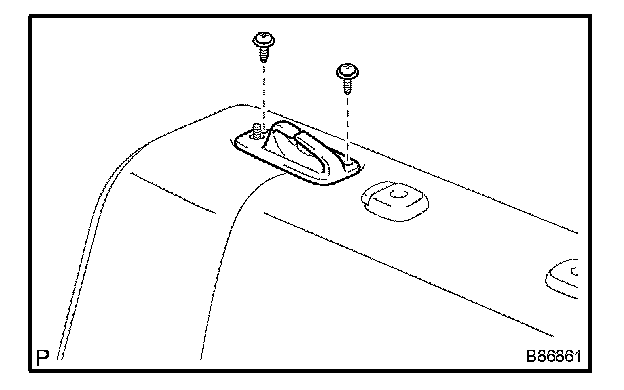

a. Remove the 2 screws and the rear seat shoulder belt guide center.

HINT: Use the same procedures for the RH side and LH side.




16. REMOVE REAR SEAT BACK LOCK CONTROL BEZEL
a. Remove the screw and the rear seat back lock control bezel.

HINT: Use the same procedures for the RH side and LH side.




17. REMOVE REAR SEAT BACK HINGE COVER
a. Remove the rear seat back hinge cover.




18. REMOVE REAR SEAT ARMREST ASSEMBLY CENTER
a. Remove the bolt and the rear seat armrest assembly center.




19. REMOVE REAR SEAT BACK STOP BUTTON GROMMET
a. Remove the rear seat back stop button grommet.

20. REMOVE REAR SEAT HEADREST SUPPORT

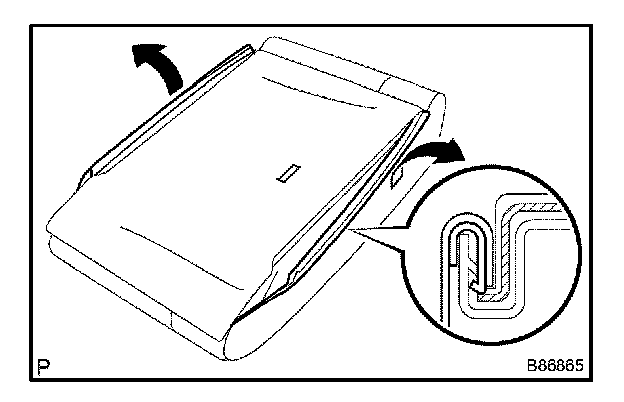

a. Disengage the separate type rear seat back cover and turn back the sides of the cover.




b. Turn back the separate type rear seat back cover and remove the 13 hog rings.




c. Disengage the 6 claws and remove the 3 rear seat headrest supports.

21. REMOVE REAR SEAT HEADREST SUPPORT

HINT: Use the same procedures for the RH side and LH side.




22. REMOVE SEPARATE TYPE REAR SEAT BACK COVER
a. Remove the 5 hog rings and the separate type rear seat back cover.







23. REMOVE SEPARATE TYPE REAR SEAT BACK COVER
a. Remove the 12 hog rings and the separate type rear seat back cover.




24. REMOVE REAR SEAT BACK LOCK ASSEMBLY LH

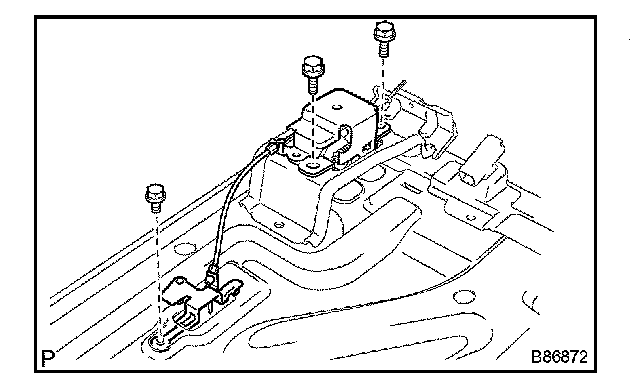

a. Remove the 3 bolts and the rear seat back lock assembly LH.

25. REMOVE REAR SEAT BACK LOCK ASSEMBLY RH

HINT: Use the same procedures for the RH side and LH side.




26. INSTALL REAR SEAT BACK LOCK ASSEMBLY LH
a. Install the rear seat back lock assembly LH with the 3 bolts.

Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

27. INSTALL REAR SEAT BACK LOCK ASSEMBLY RH

Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

HINT: Use the same procedures for the RH side and LH side.

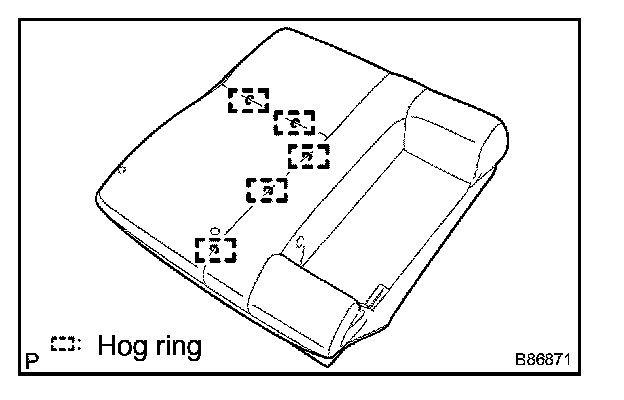

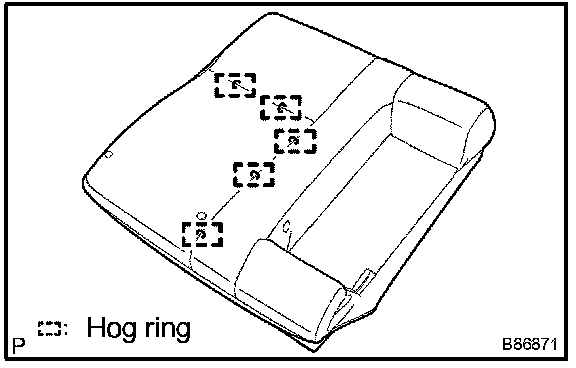

28. INSTALL SEPARATE TYPE REAR SEAT BACK COVER

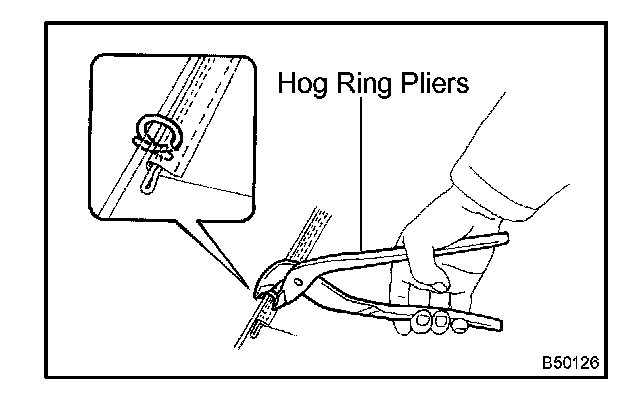

a. Using hog ring pliers, install the separate type rear seat back cover with 12 new hog rings.

NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

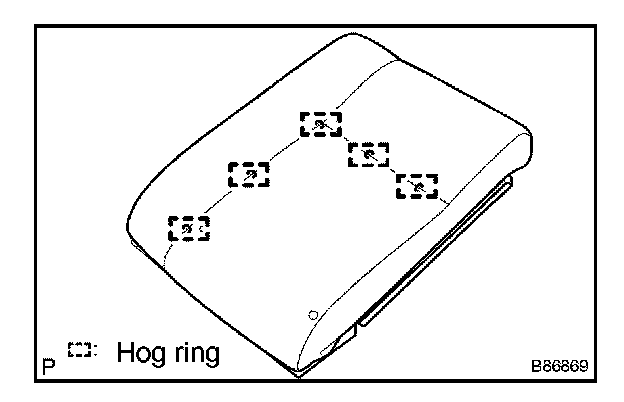

29. INSTALL SEPARATE TYPE REAR SEAT BACK COVER
a. Using hog ring pliers, install the separate type rear seat back cover with 5 new hog rings.

NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.










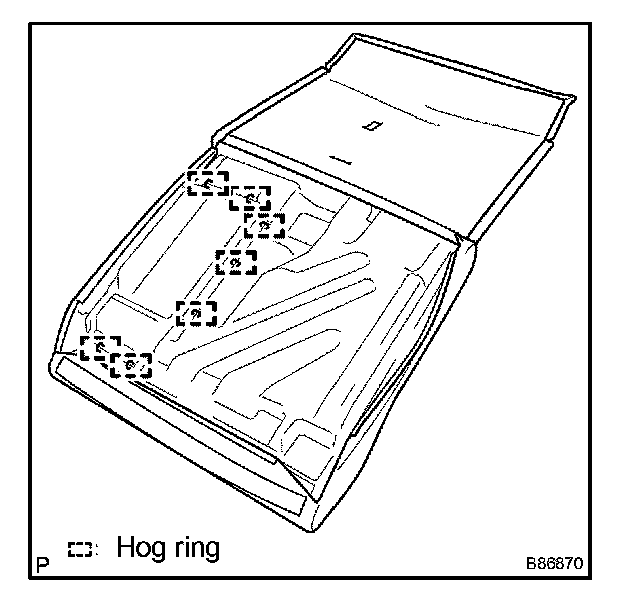

30. INSTALL BENCH TYPE REAR SEAT CUSHION COVER

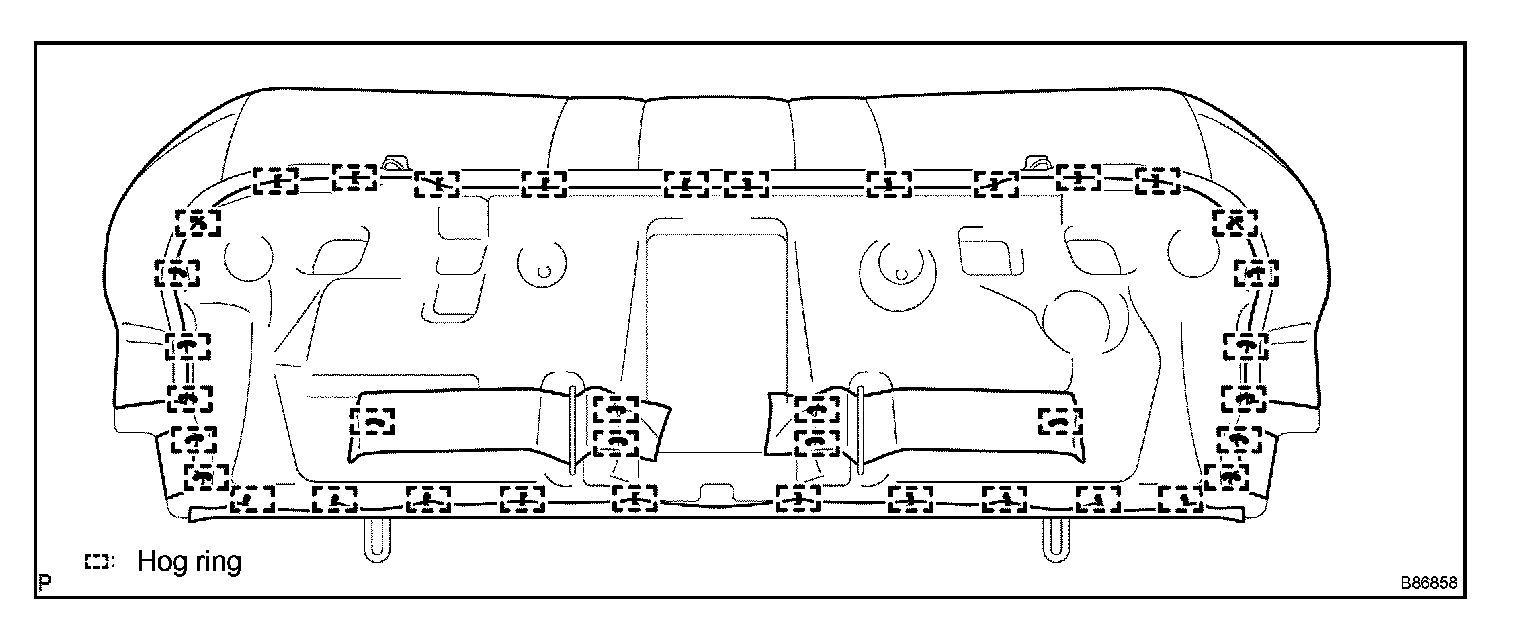

a. Using hog ring pliers, install the bench type rear seat cushion cover with 56 new hog rings.

NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

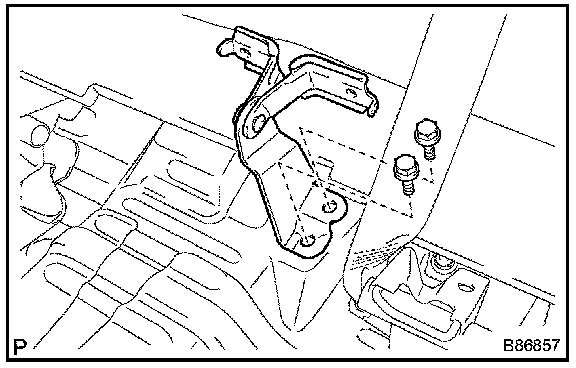

31. INSTALL REAR SEAT BACK HINGE SUB-ASSEMBLY CENTER
a. Install the rear seat back hinge sub-assembly center with the 2 bolts.

Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)




32. INSTALL REAR SEAT BACK HINGE SUB-ASSEMBLY LH

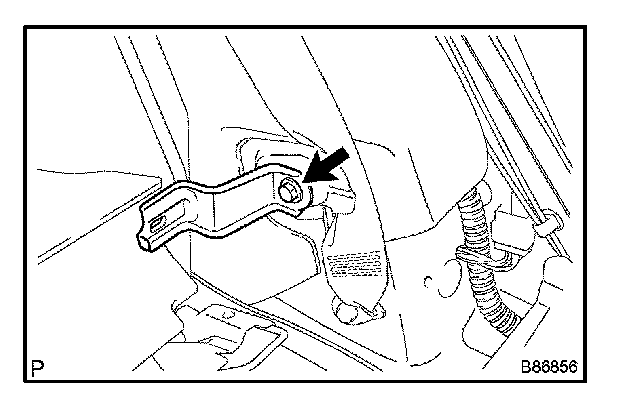

a. Install the rear seat back hinge sub-assembly LH with the bolt.

Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)

33. INSTALL REAR SEAT BACK HINGE SUB-ASSEMBLY RH

Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)

HINT: Use the same procedures for the RH side and LH side.




34. INSTALL REAR SIDE SEAT BACK ASSEMBLY LH
a. Install the rear side seat back assembly LH with the bolt.

Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)

35. INSTALL REAR SIDE SEAT BACK ASSEMBLY RH

Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)

HINT: Use the same procedures for the RH side and LH side.

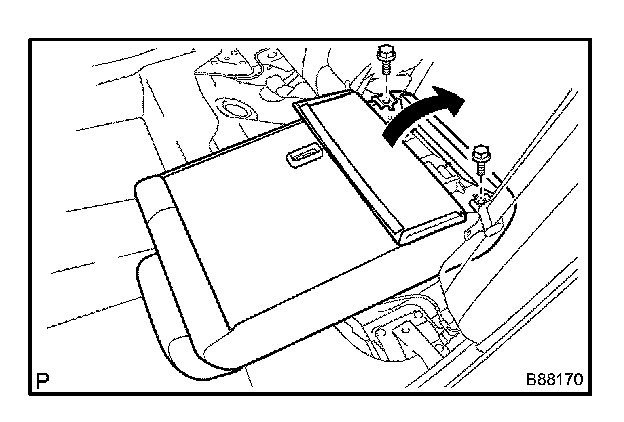

36. INSTALL REAR SEAT BACK ASSEMBLY LH




a. Install the rear seat back assembly LH with the 2 bolts.

Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)

b. Close the separate type rear seat back cover and put back the rear seat back assembly LH.

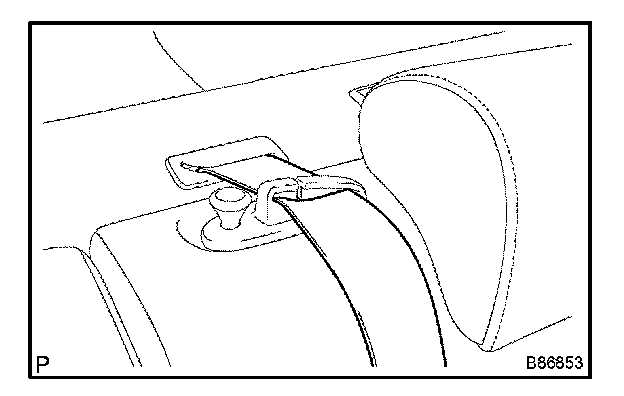

c. Install the rear seat belt to the rear seat shoulder belt guide center.

37. INSTALL REAR SEAT BACK ASSEMBLY RH

Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)

HINT: Use the same procedures for the RH side and LH side.
