Cruise Main Indicator Light Circuit

CRUISE MAIN INDICATOR LIGHT CIRCUIT

CIRCUIT DESCRIPTION
When the cruise control main switch is turned ON, CRUISE MAIN indicator light comes on.

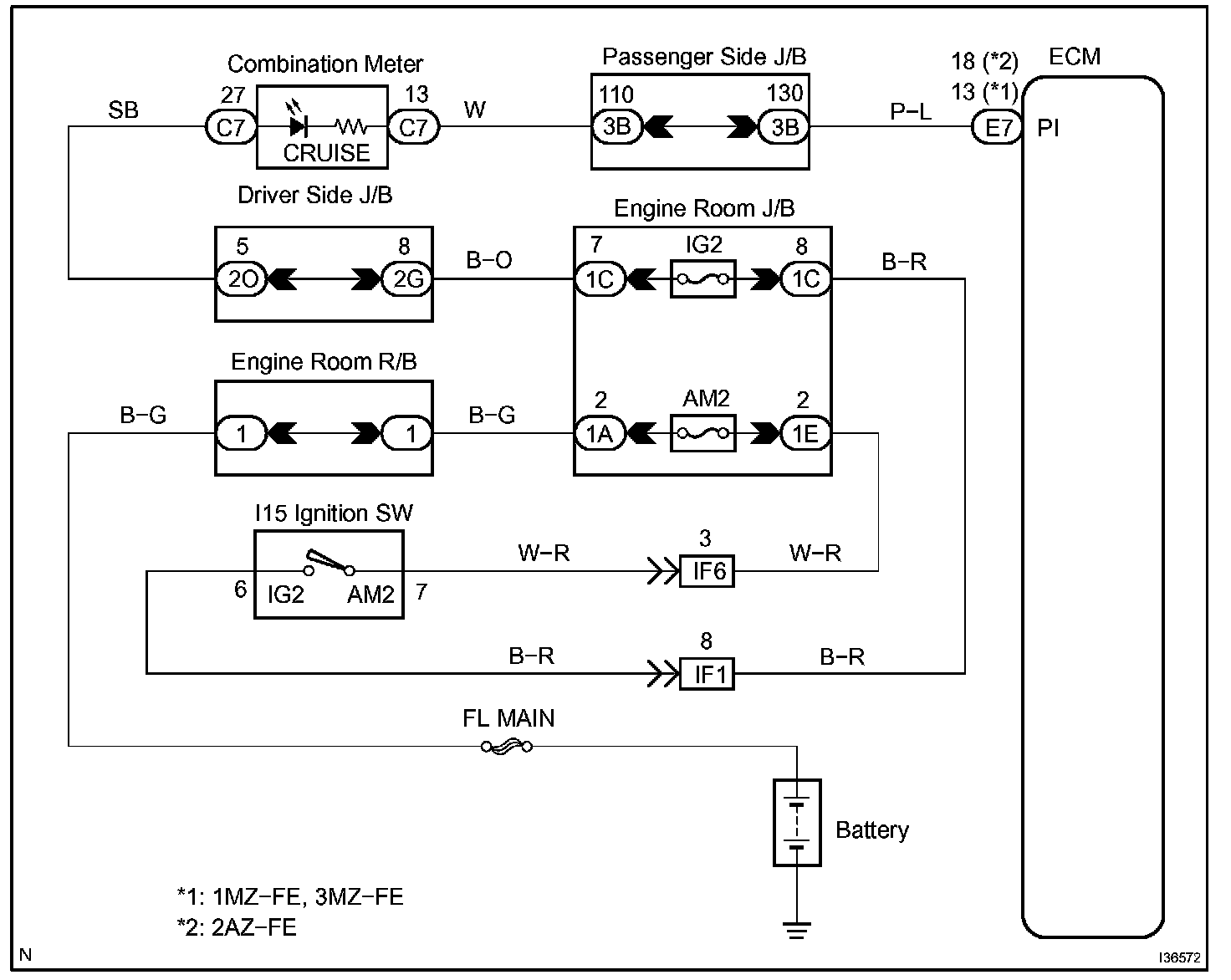

Wiring Diagram:

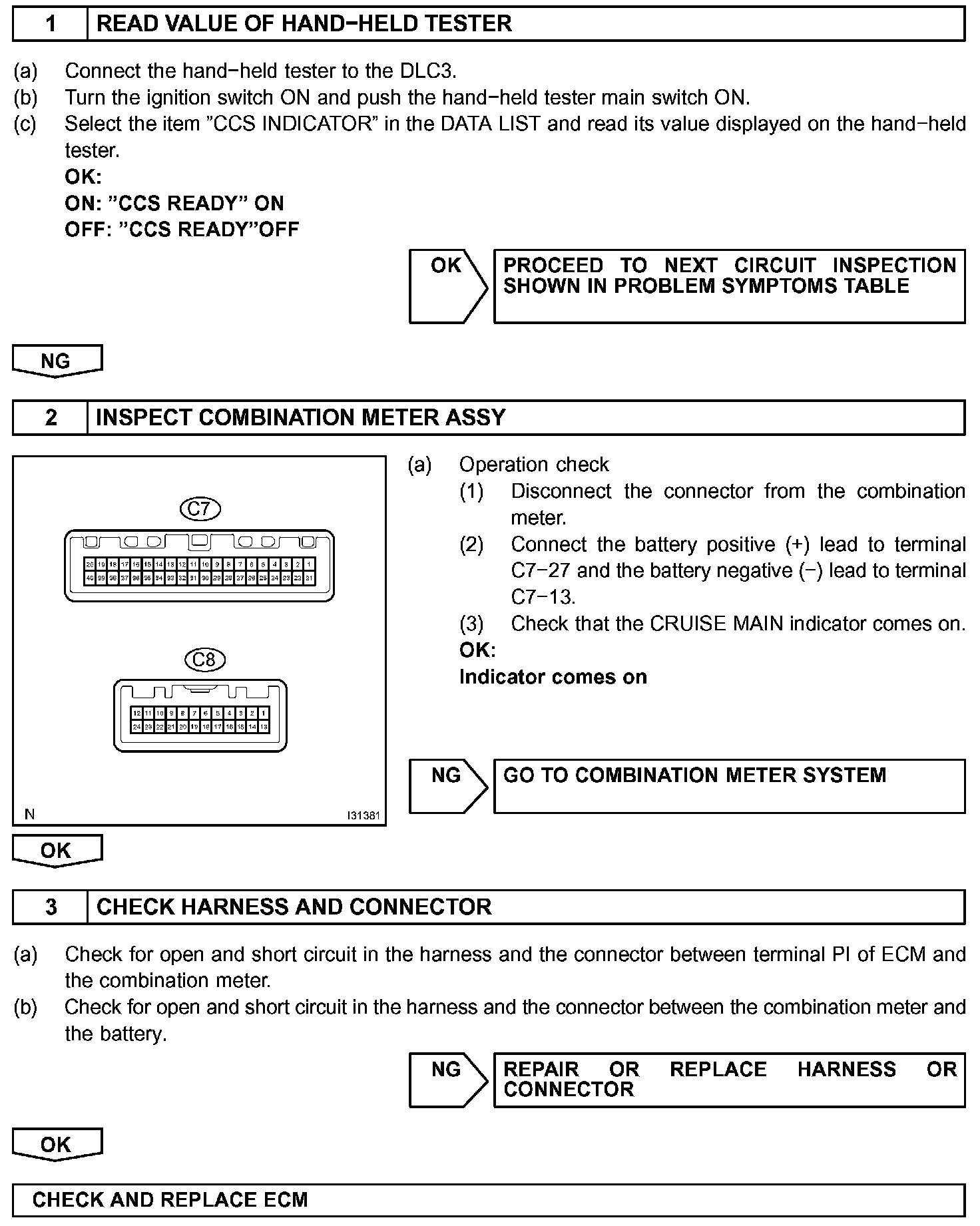

Step 1-3:

INSPECTION PROCEDURE
