Park/Neutral Position Switch Circuit
PARK/NEUTRAL POSITION SWITCH CIRCUITCIRCUIT DESCRIPTION
When the shift position is put in except D position, a signal is sent from the park/neutral position switch to the ECM. When this signal is input during the cruise control driving, ECM cancels the cruise control.
Wiring Diagram:

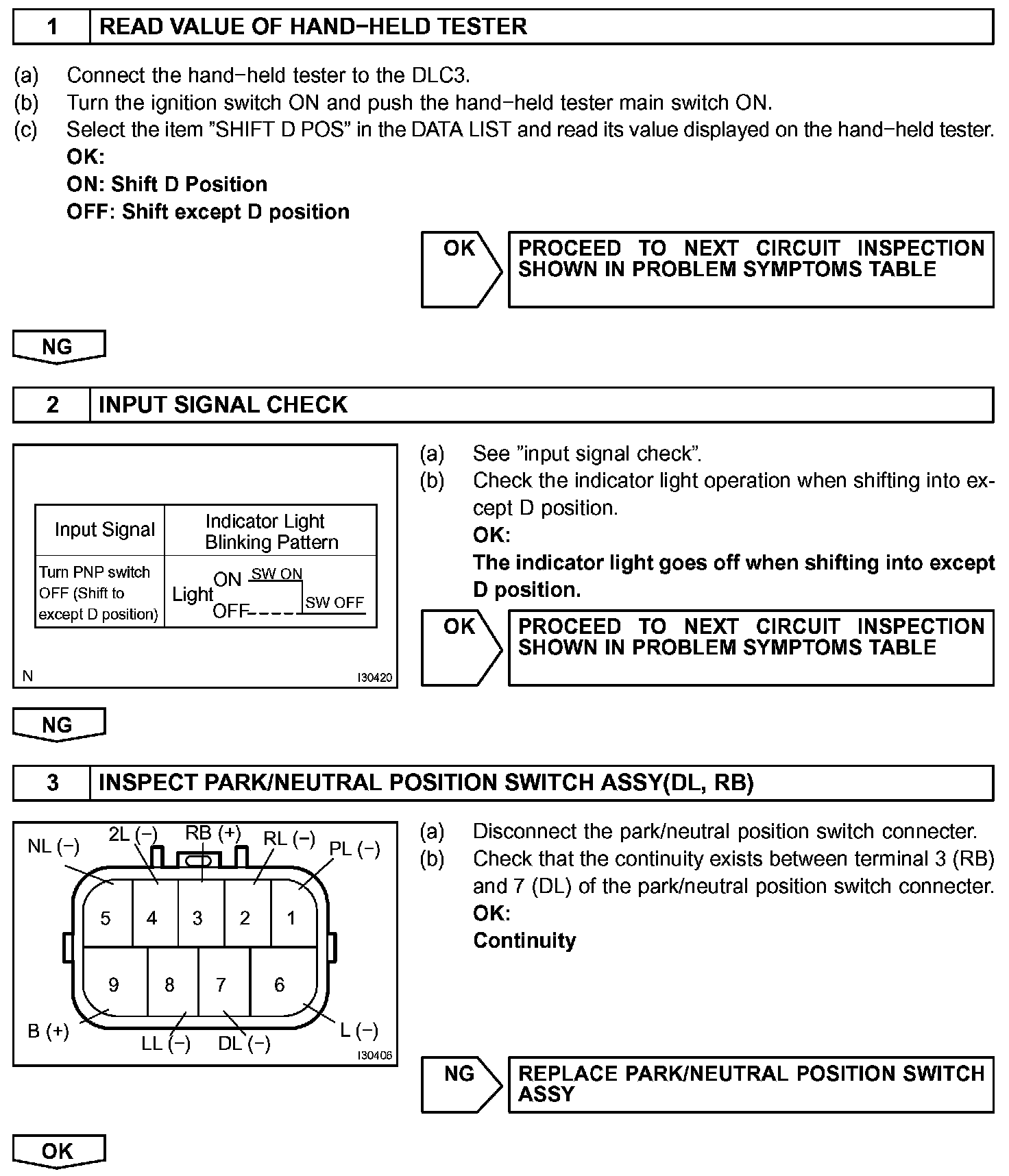

Step 1-3:
Step 4:
INSPECTION PROCEDURE
