Camry V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

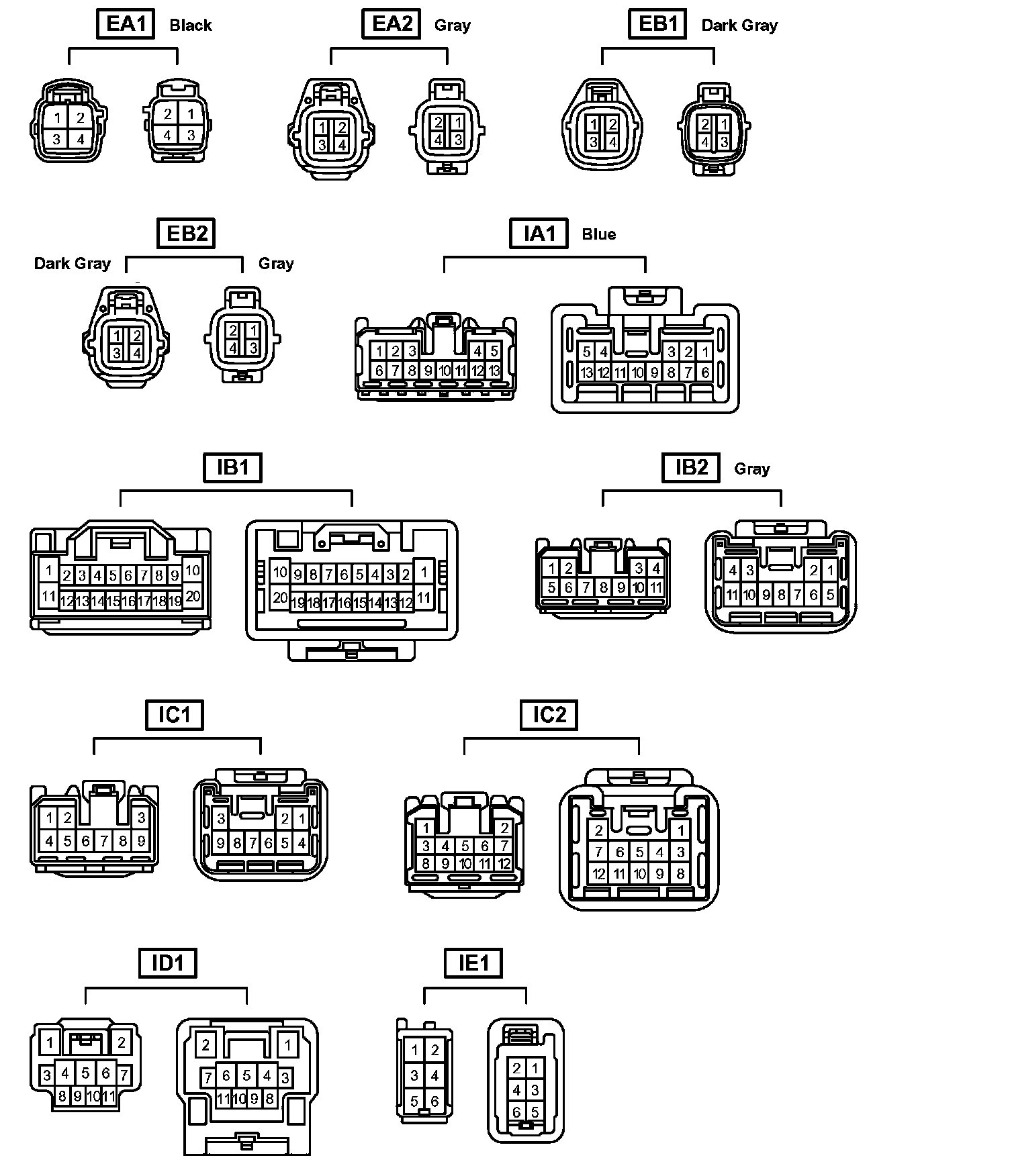

EA1 - IE1
EA1 - IE1
EA1 - IE1:
