Power and Ground Distribution
>>
Relay Box
Relay Box
Engine Room J/B Inner Circuit:

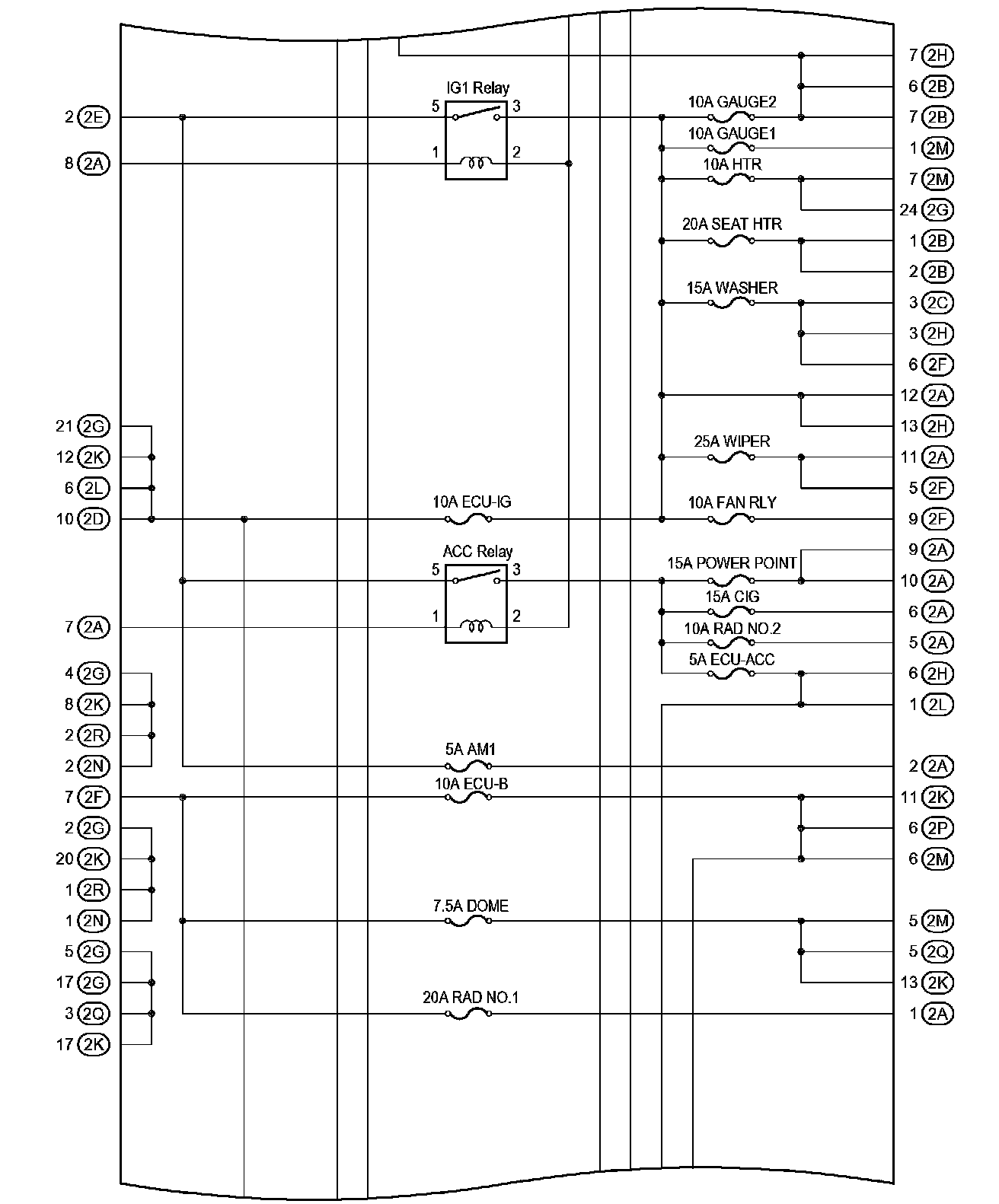

Drive Side J/B Inner Circuit:

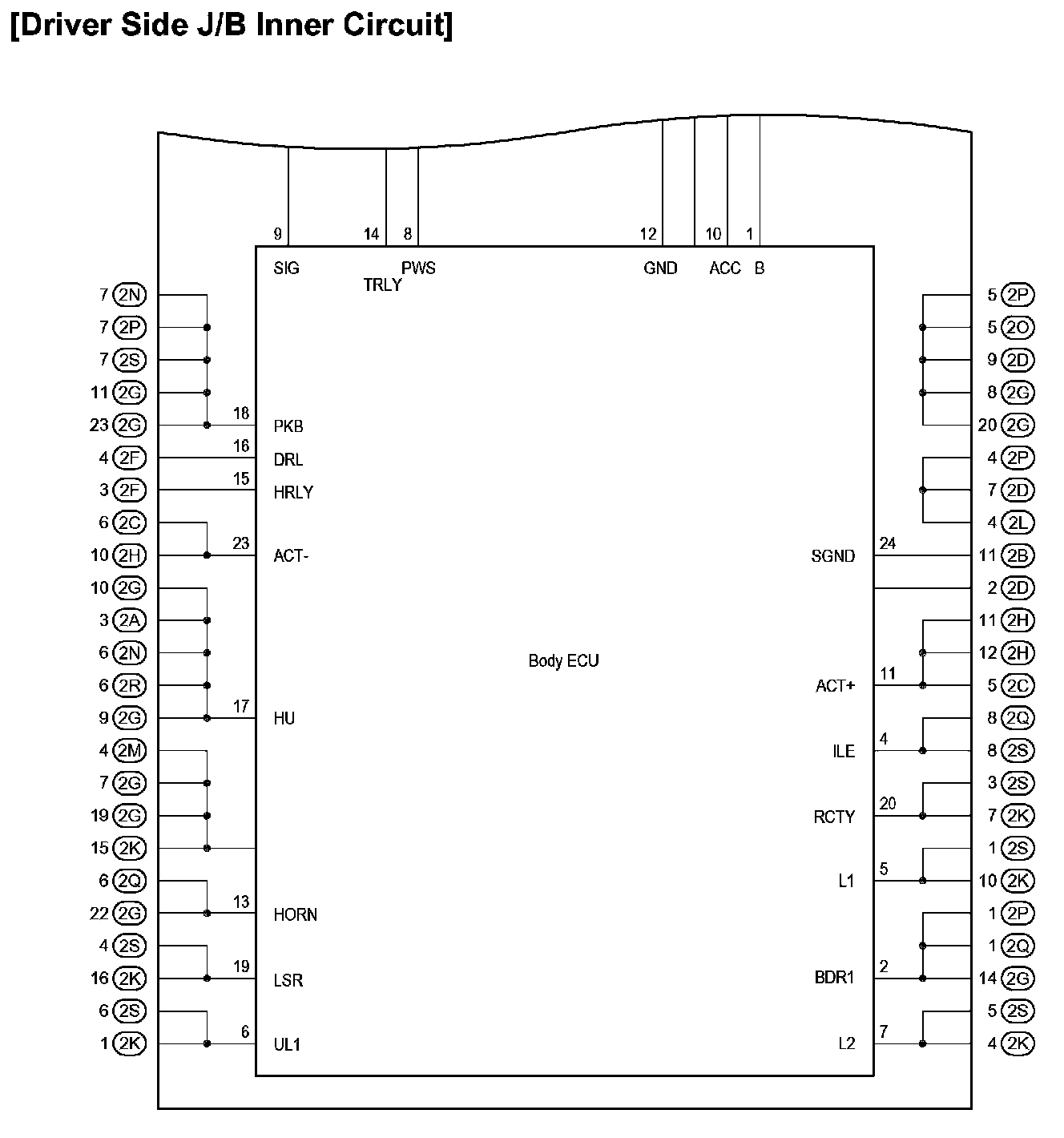

Drive Side J/B Inner Circuit:

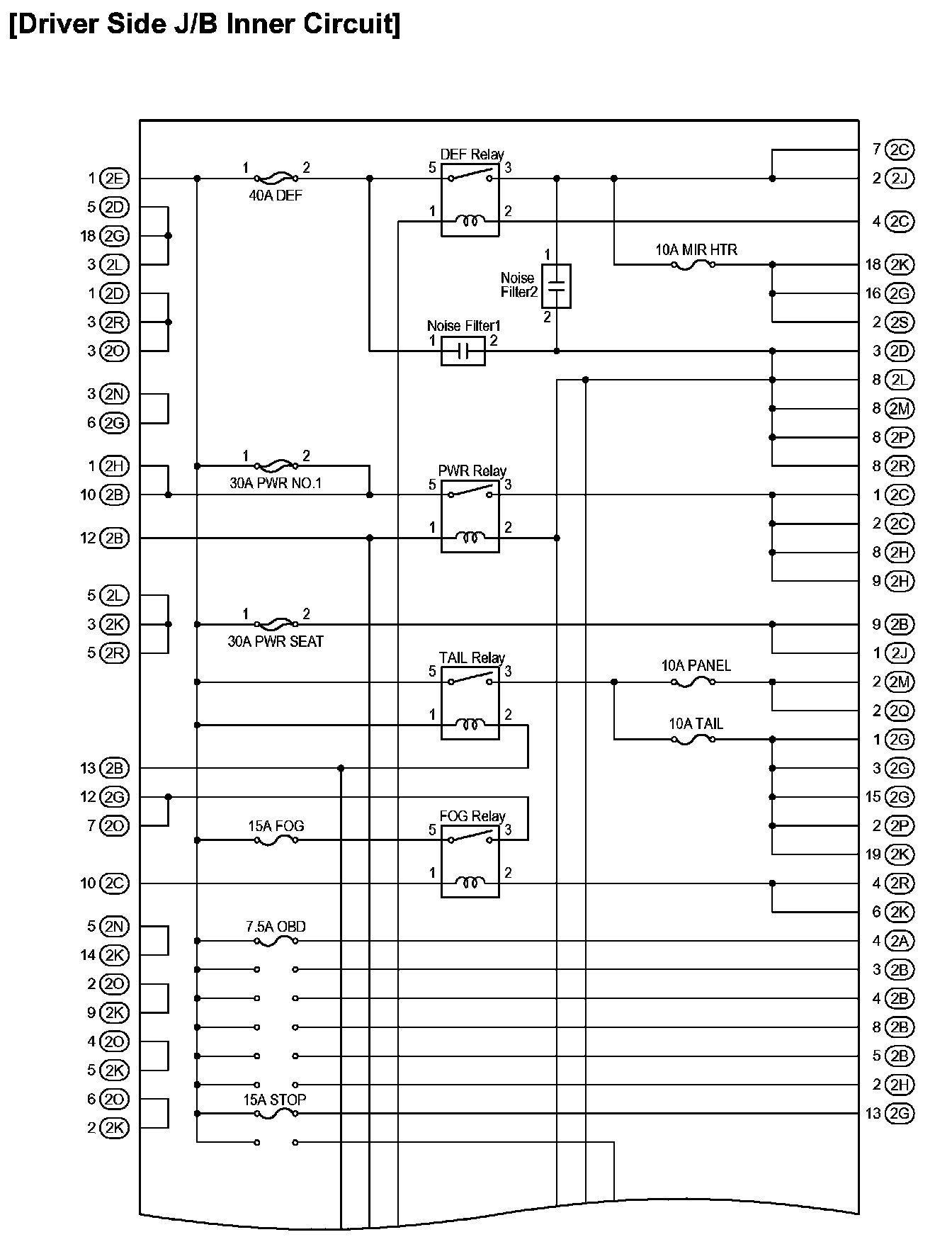

Drive Side J/B Inner Circuit:
Junction Connector Inner Circuit:
