Home >> Toyota >> 2006 >> Camry V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Radiator

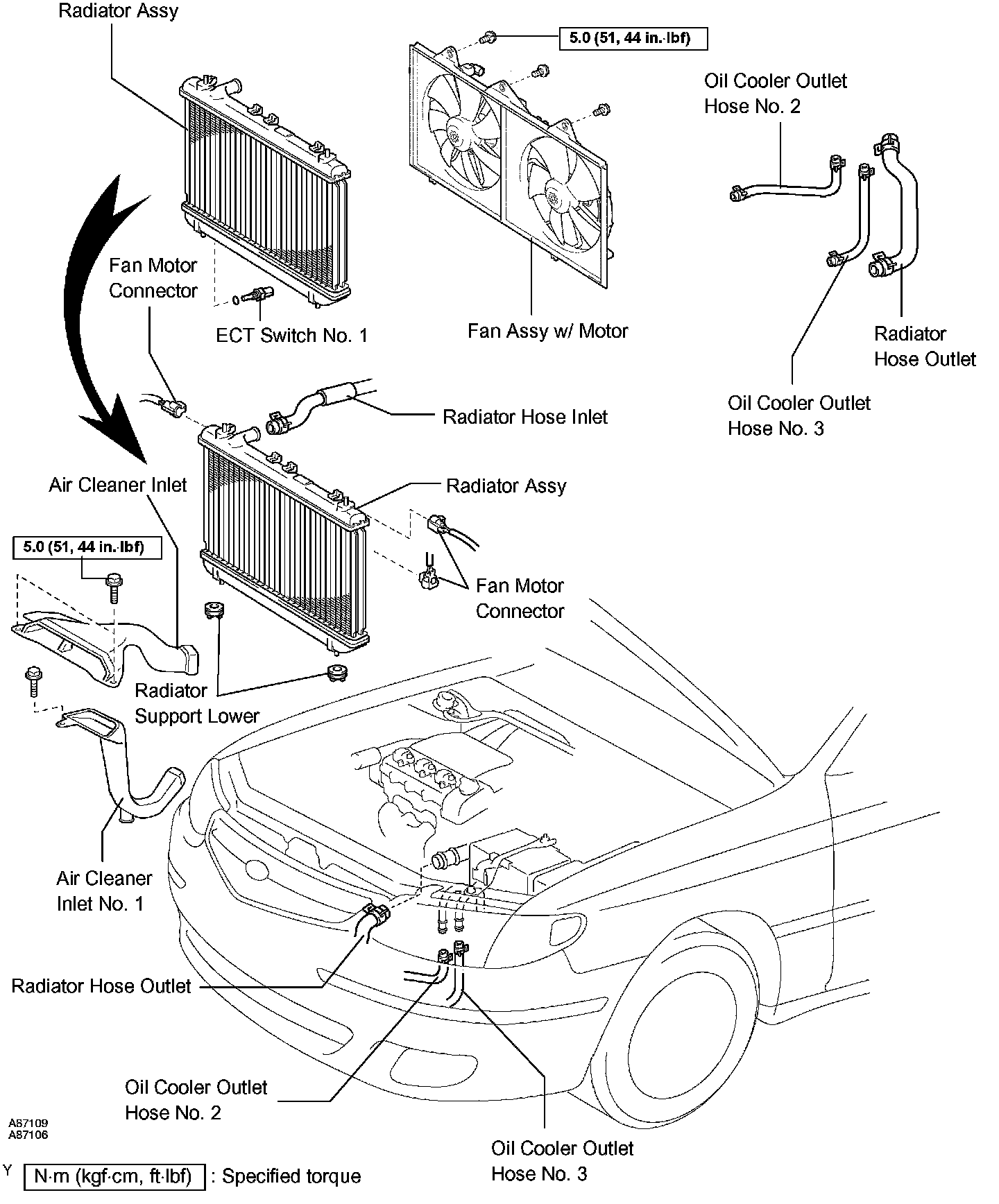

Radiator

Part 1 Of 2:



Part 2 Of 2:
