Compressor Circuit

COMPRESSOR CIRCUIT

CIRCUIT DESCRIPTION
The A/C amplifier outputs the magnetic clutch ON signal from terminal AC1 to the ECM receives this signal, it sends a signal from terminal ACMG (MGCR)and switches the magnetic clutch relay ON, thus turning on the magnetic clutch.

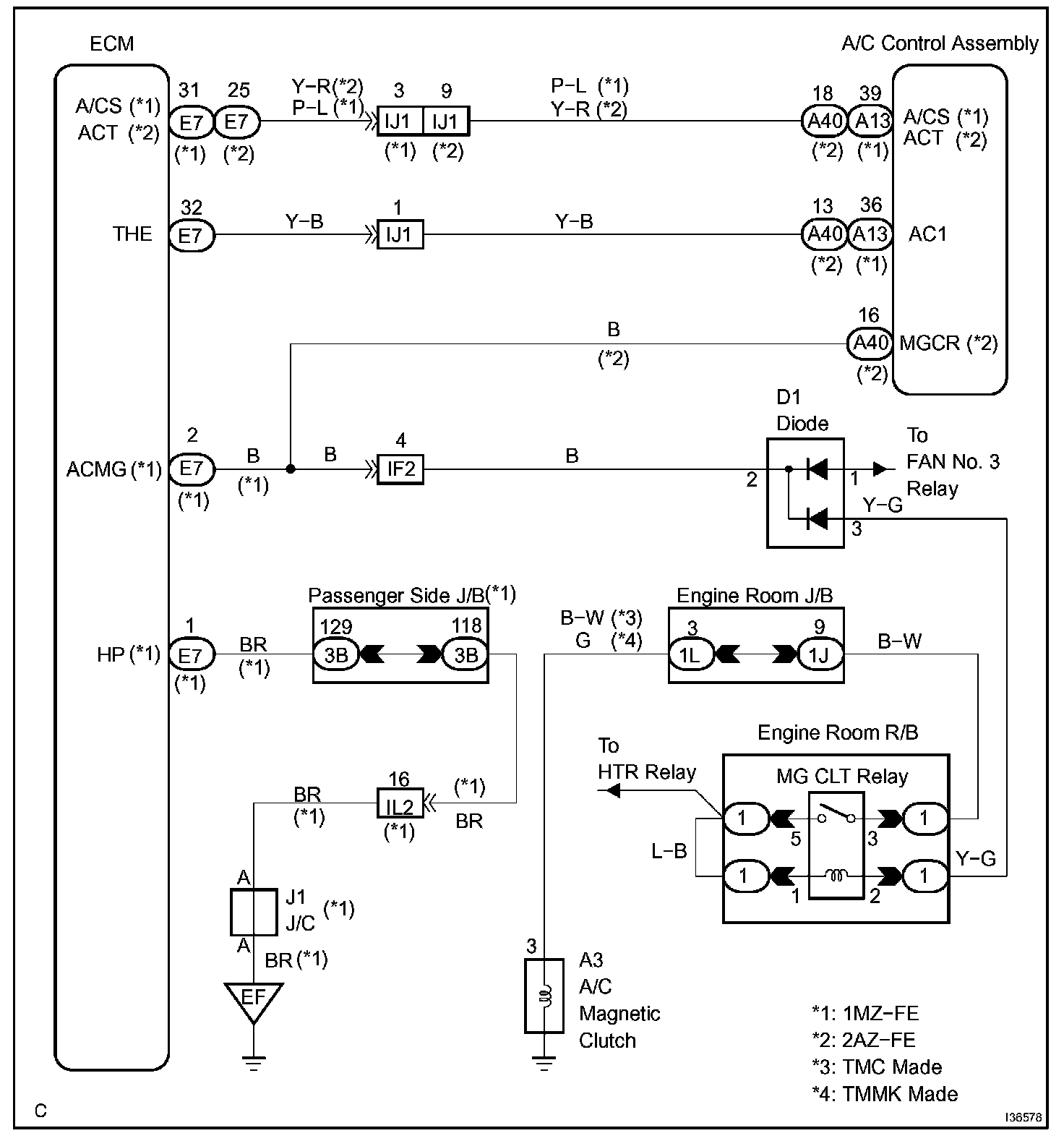

Wiring Diagram:

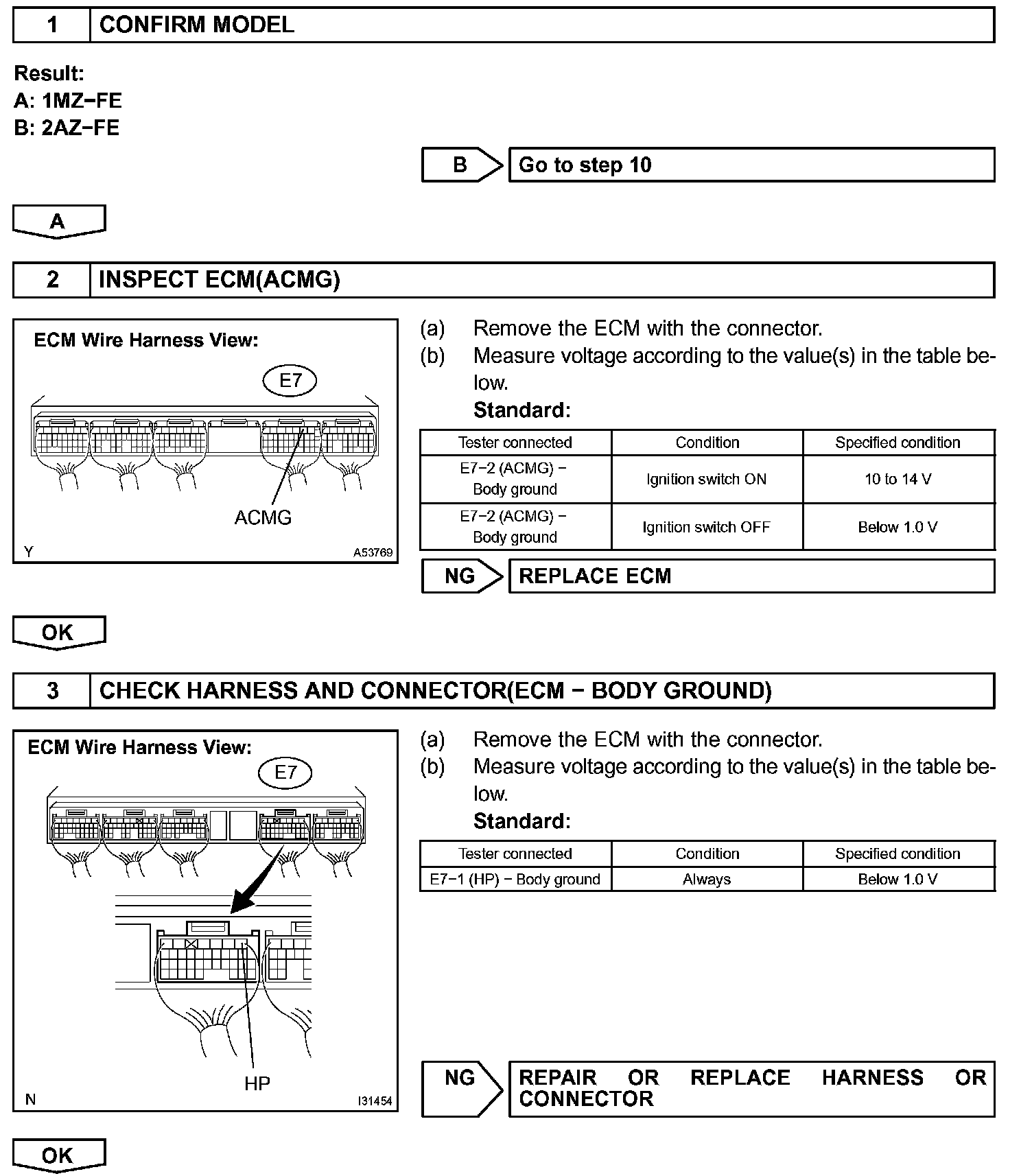

Step 1-3:

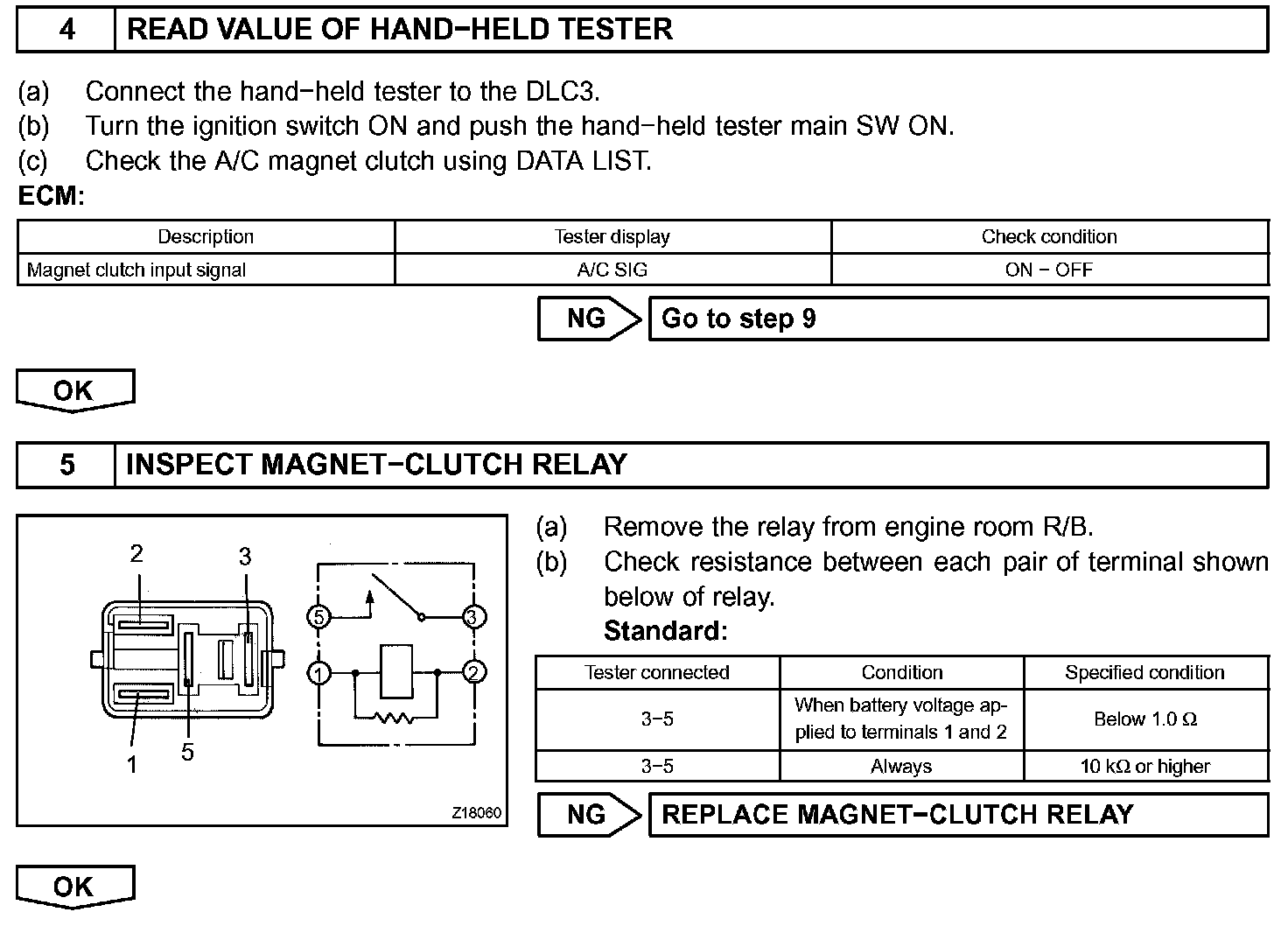

Step 4-5:

Step 6-8:

Step 9:

Step 10:

INSPECTION PROCEDURE
