Heater Main Relay Circuit
HEATER RELAY CIRCUITCIRCUIT DESCRIPTION
The heater relay is switched on by signals from the A/C amplifier. It supplies power to the blower motor.
Wiring Diagram:
Step 1-2:

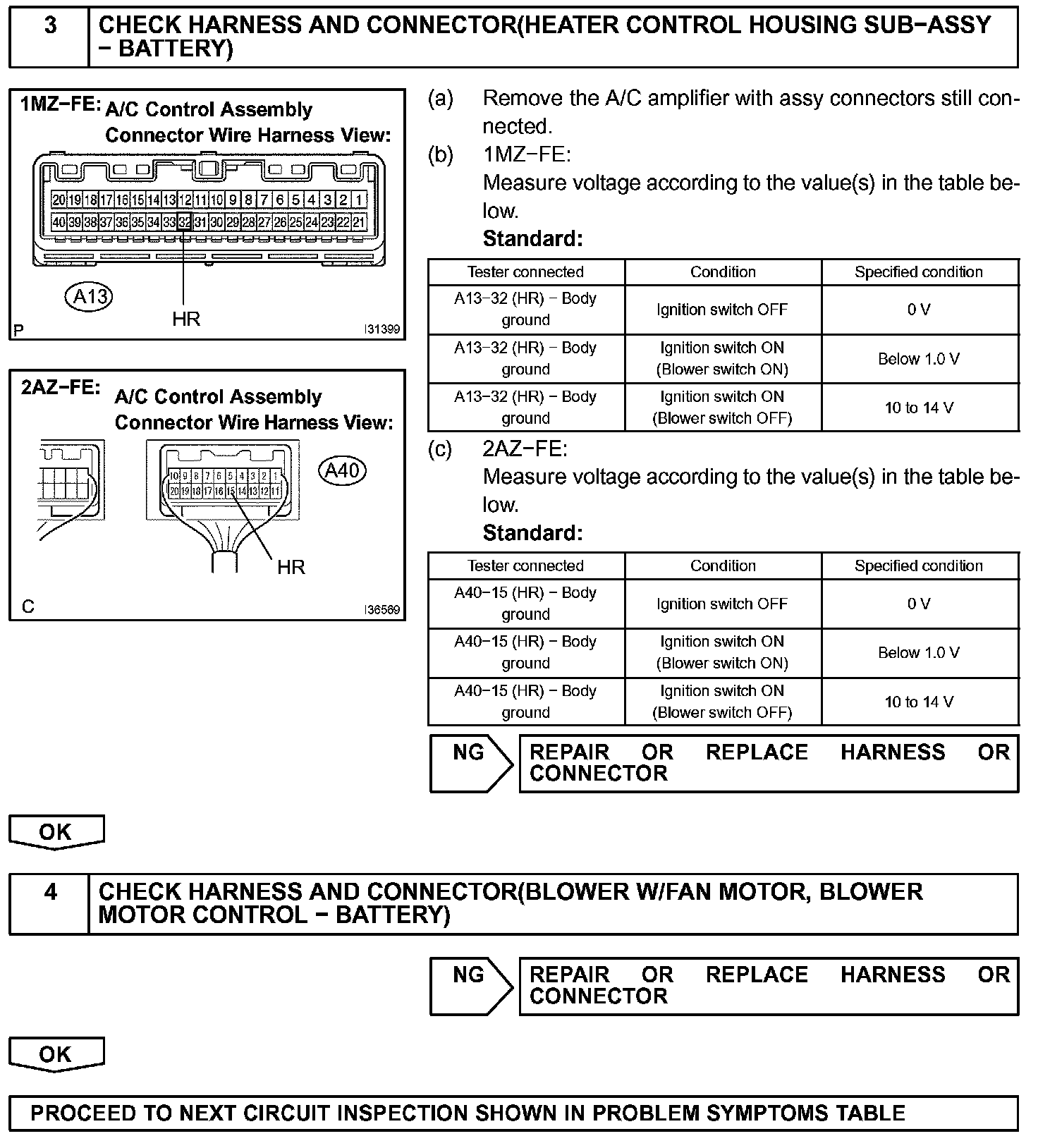

Step 3-4:
INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
The heater relay is switched on by signals from the A/C amplifier. It supplies power to the blower motor.
INSPECTION PROCEDURE
