Malfunction In Average Fuel Consumption/Instantaneous Fuel Consumption Display
MALFUNCTION IN AVERAGE FUEL CONSUMPTION/INSTANTANEOUS FUEL CONSUMPTION DISPLAYCIRCUIT DESCRIPTION
This circuit is used only in the vehicle equipped with the automatic A/C.
Wiring Diagram:

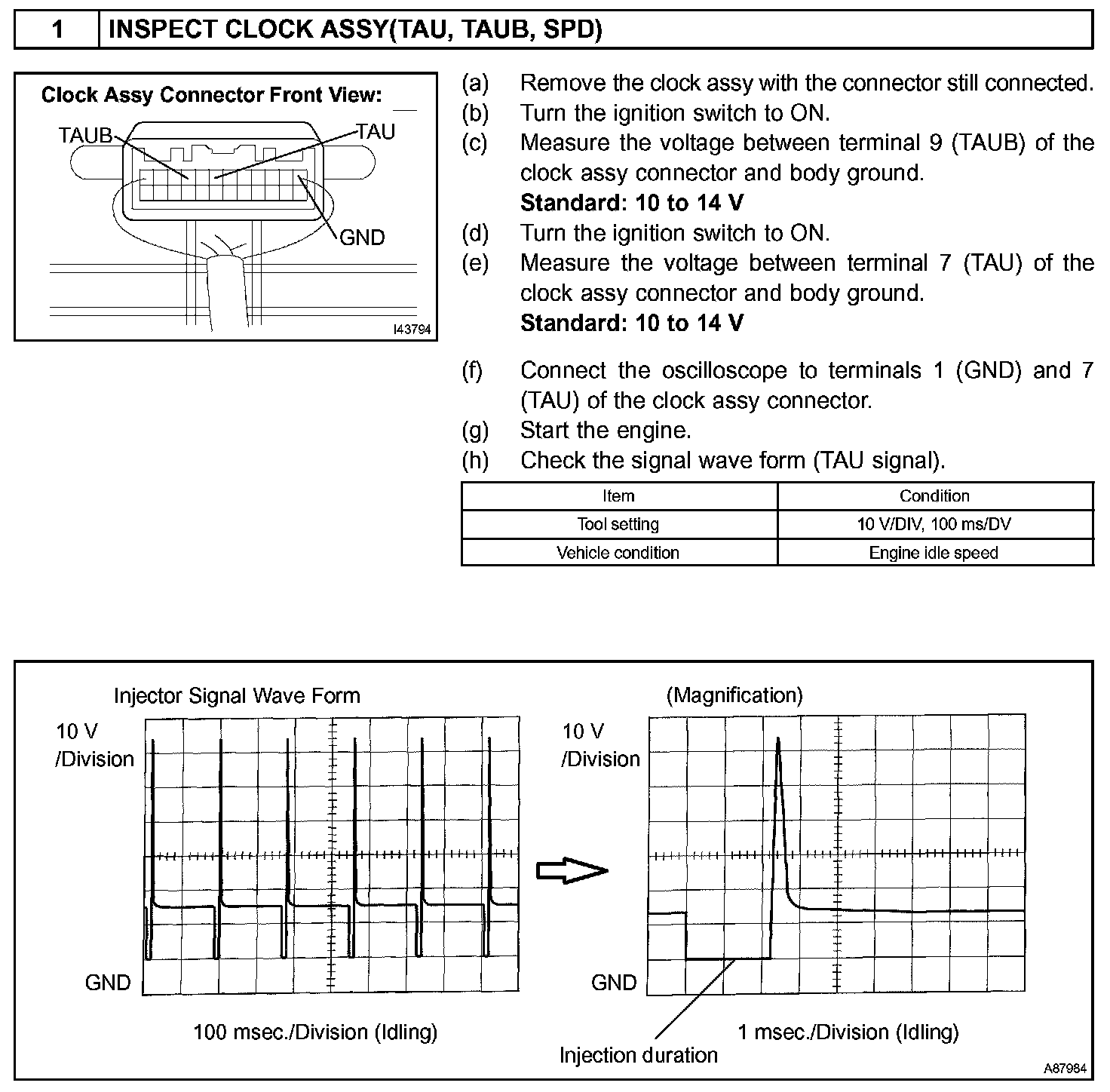

Step 1:
Step 1(Continued)-2:

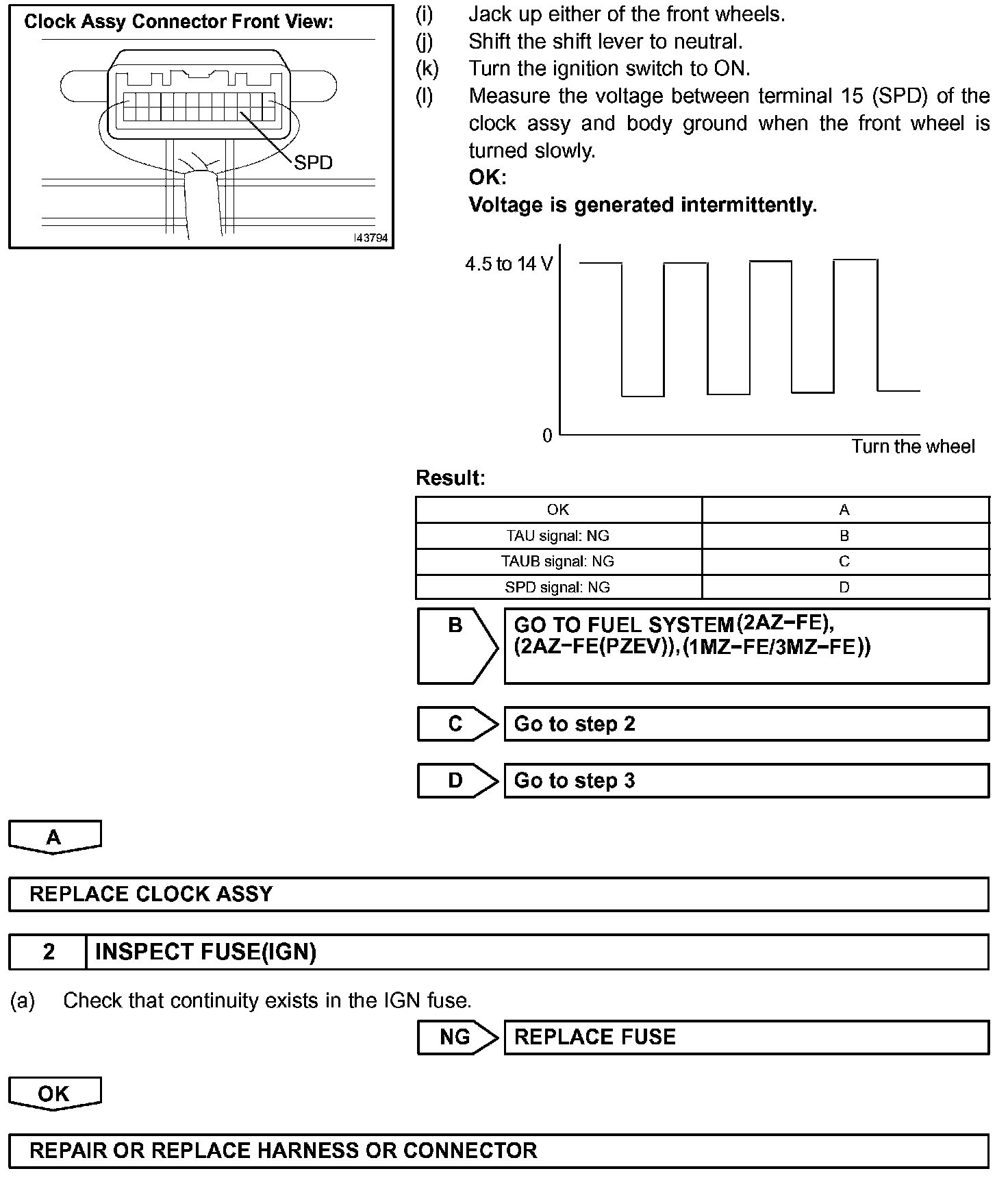

Step 3:
INSPECTION PROCEDURE
