Malfunction In Speedometer
Malfunction In Speedometer
MALFUNCTION IN SPEEDOMETER
Wiring Diagram:

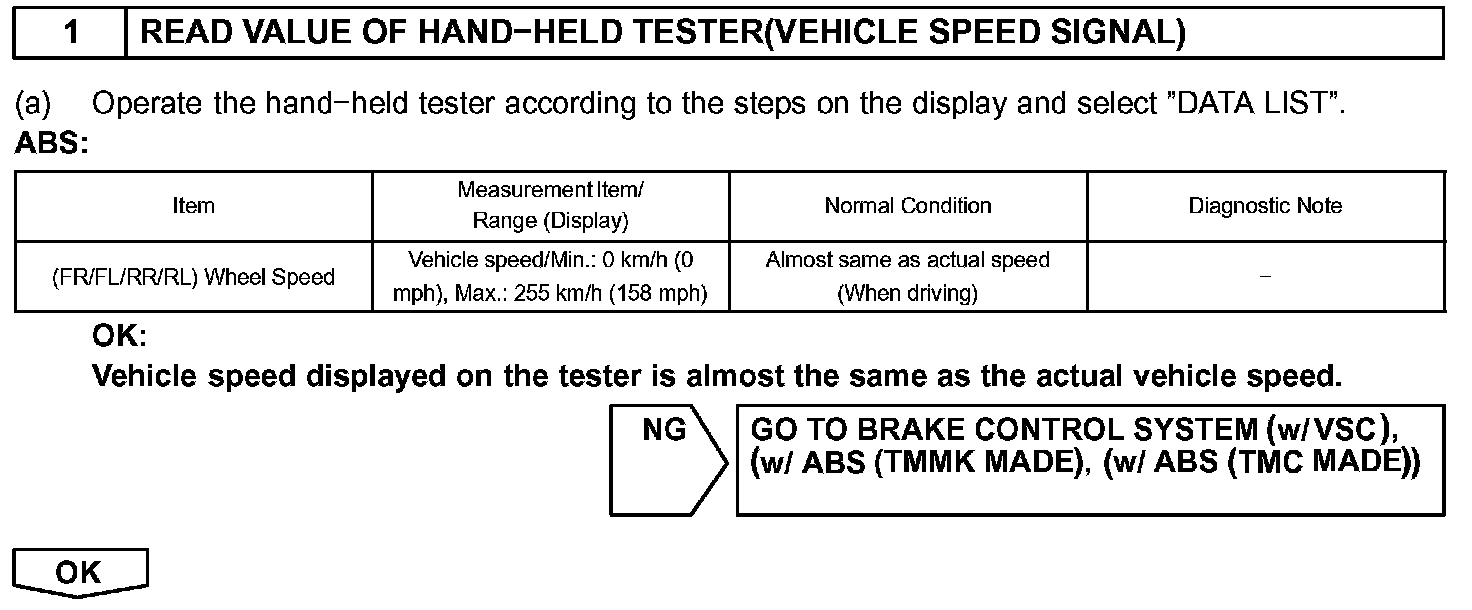

Step 1:
Step 2-3:

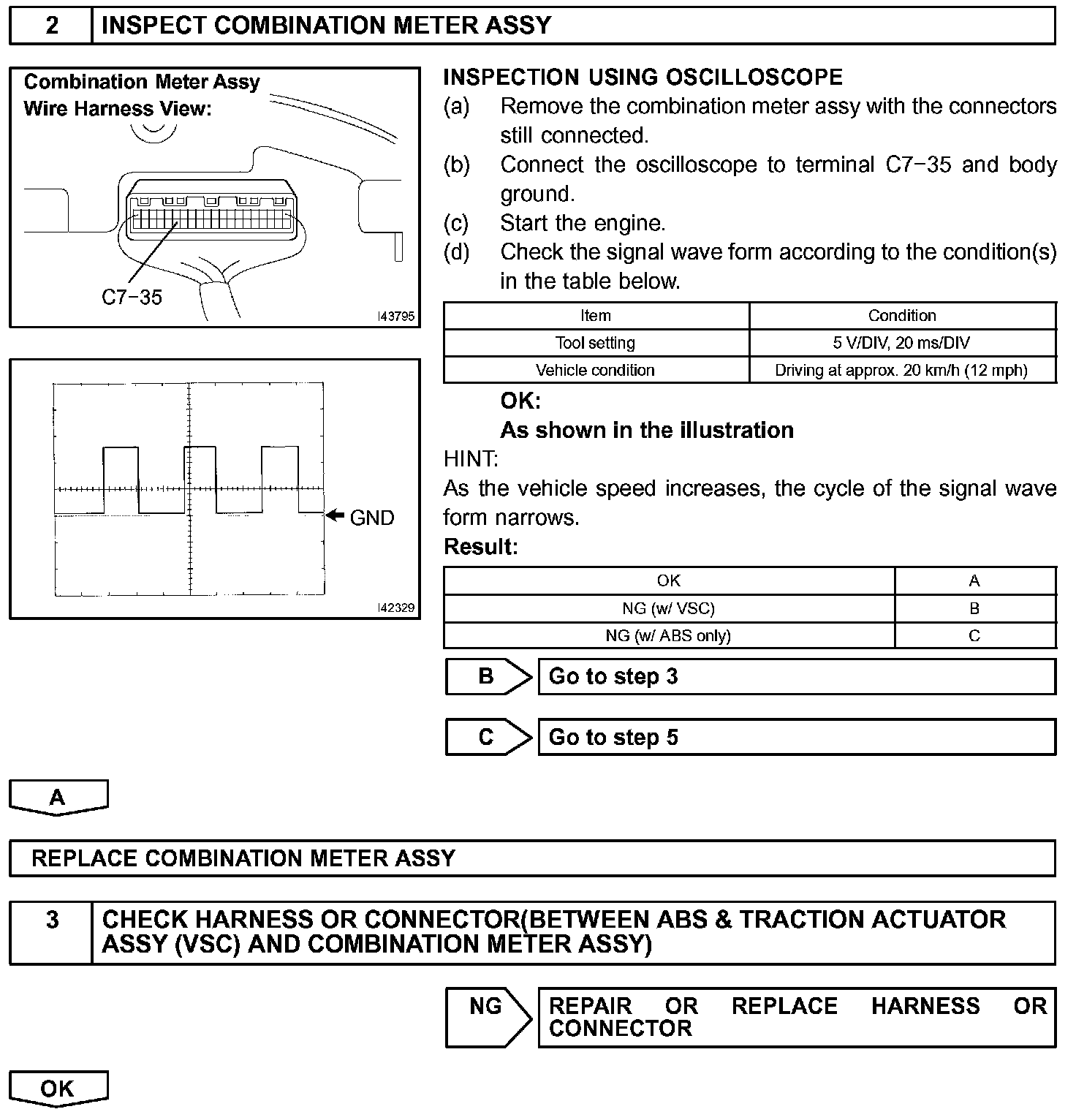

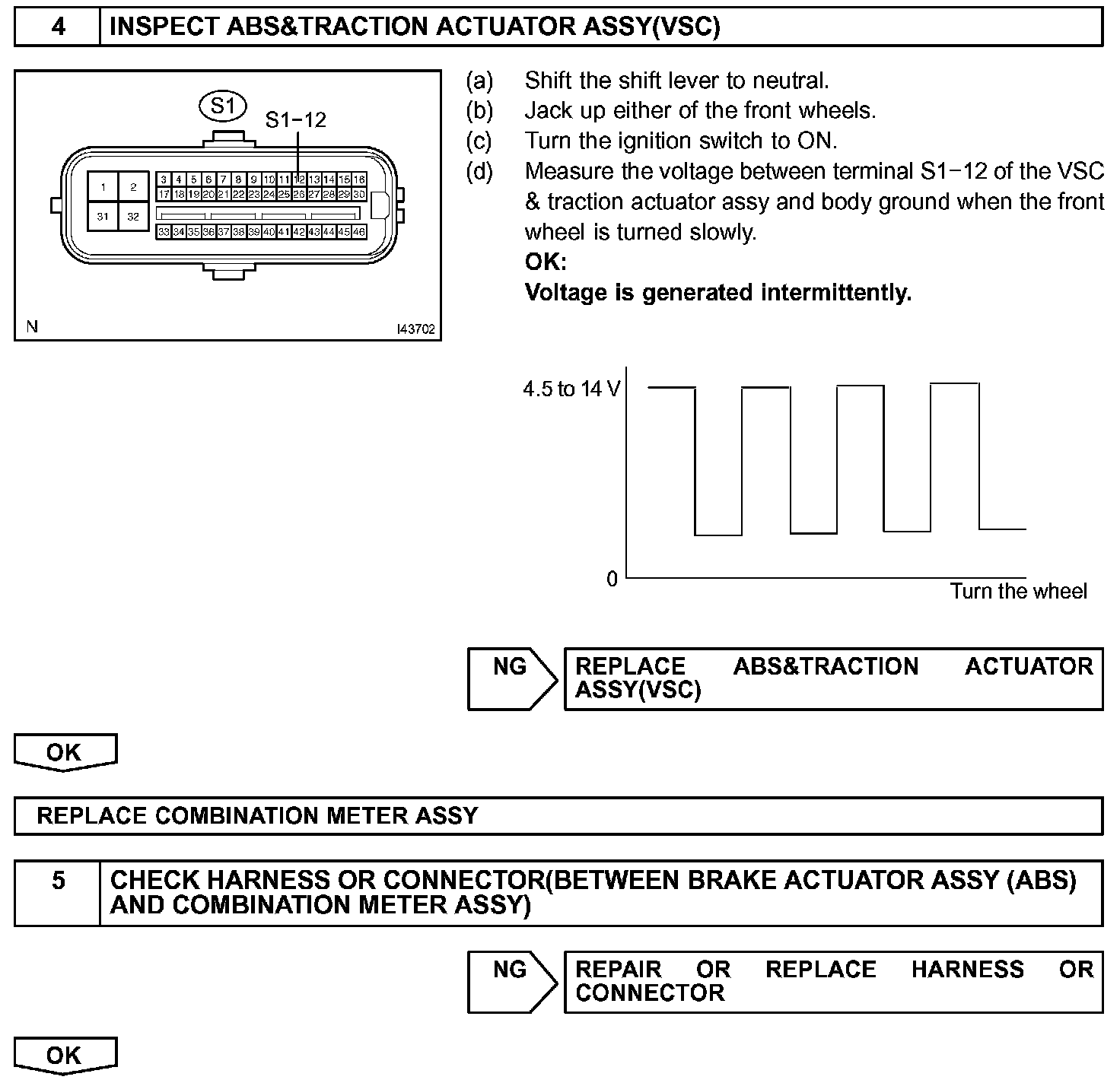

Step 4-5:

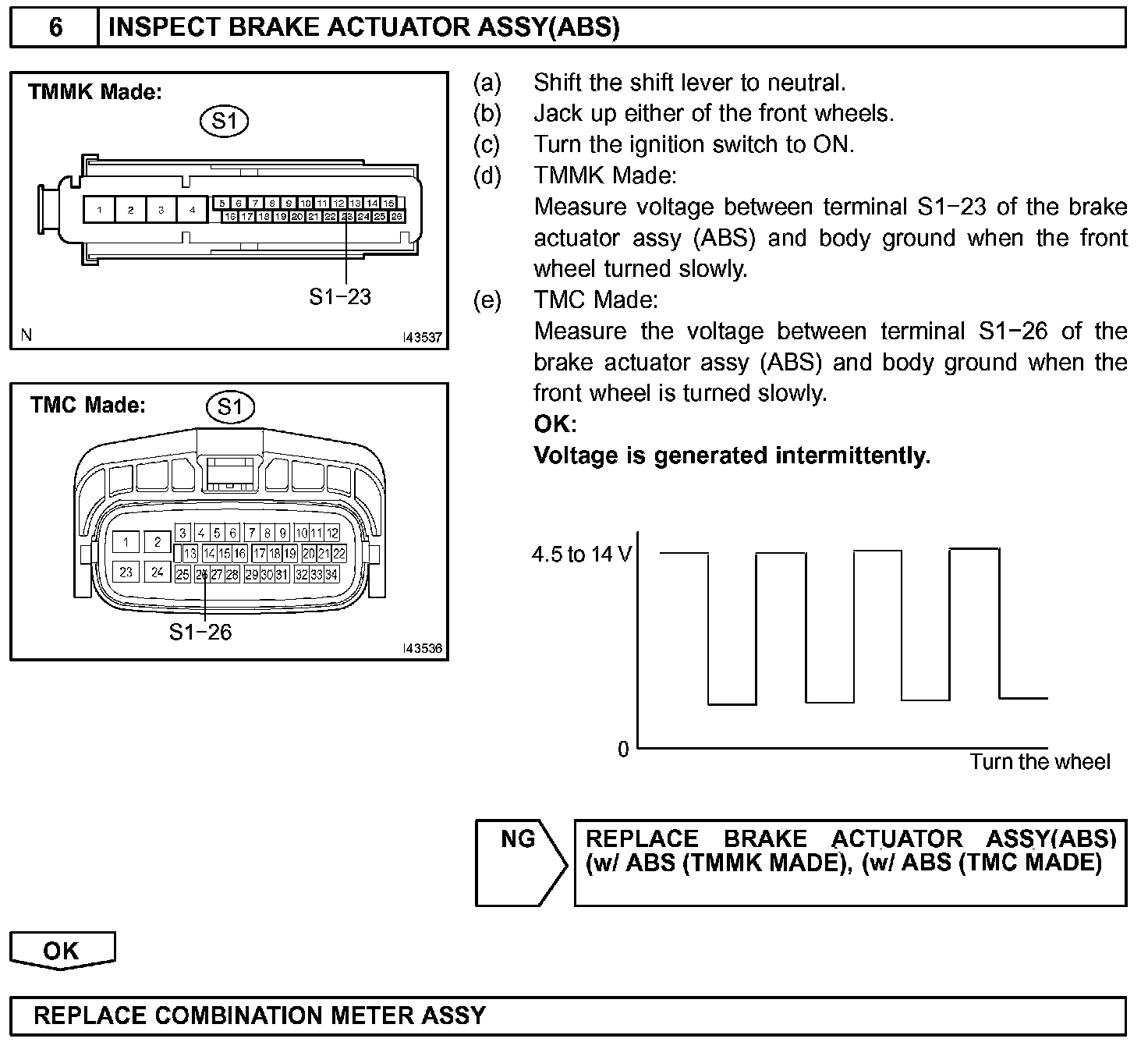

Step 6:
INSPECTION PROCEDURE
