Malfunction in Driving Time Display
MALFUNCTION IN DRIVING TIME DISPLAYCIRCUIT DESCRIPTION
This circuit is used only in the vehicle equipped with the automatic A/C.

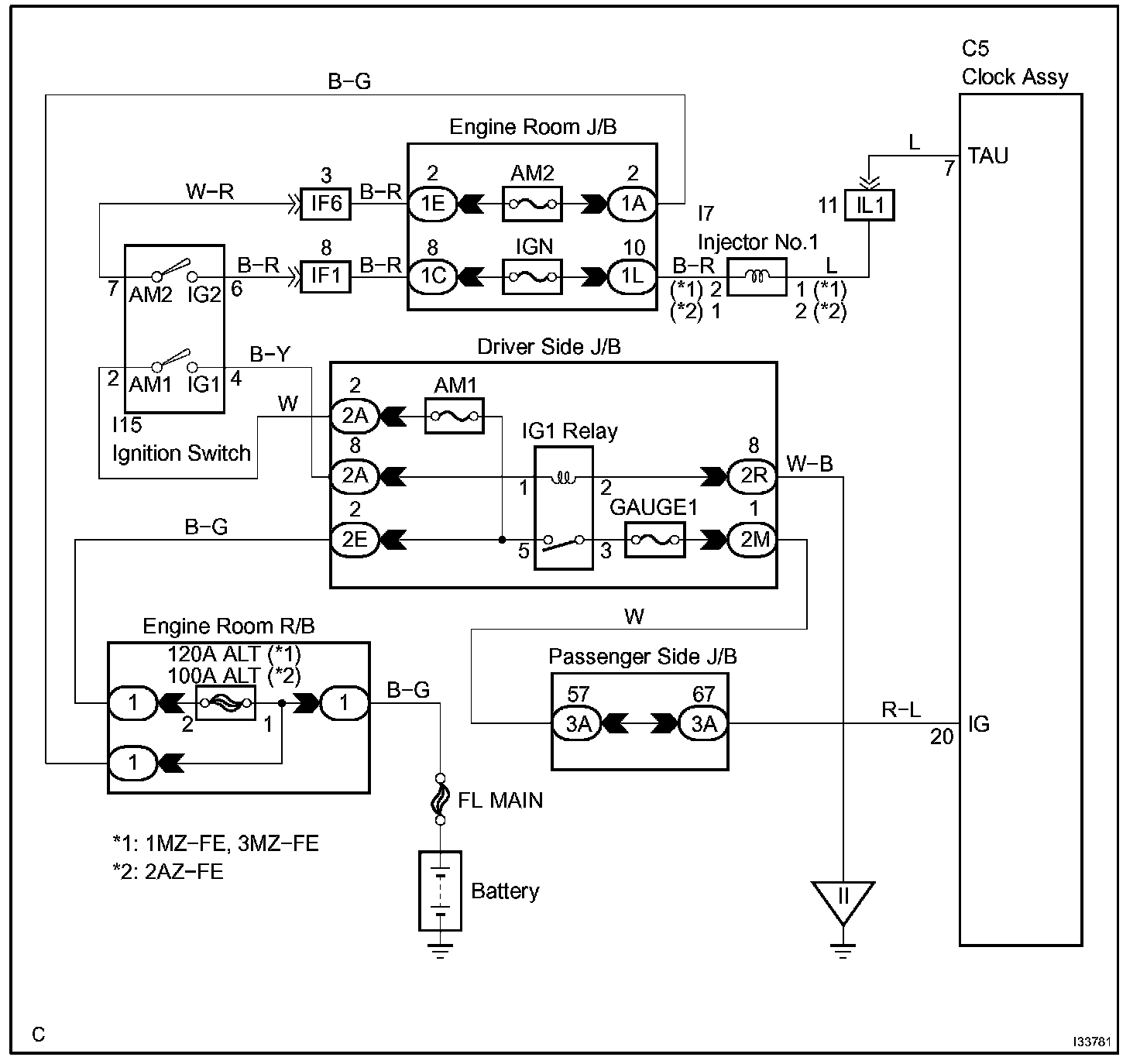

Wiring Diagram:

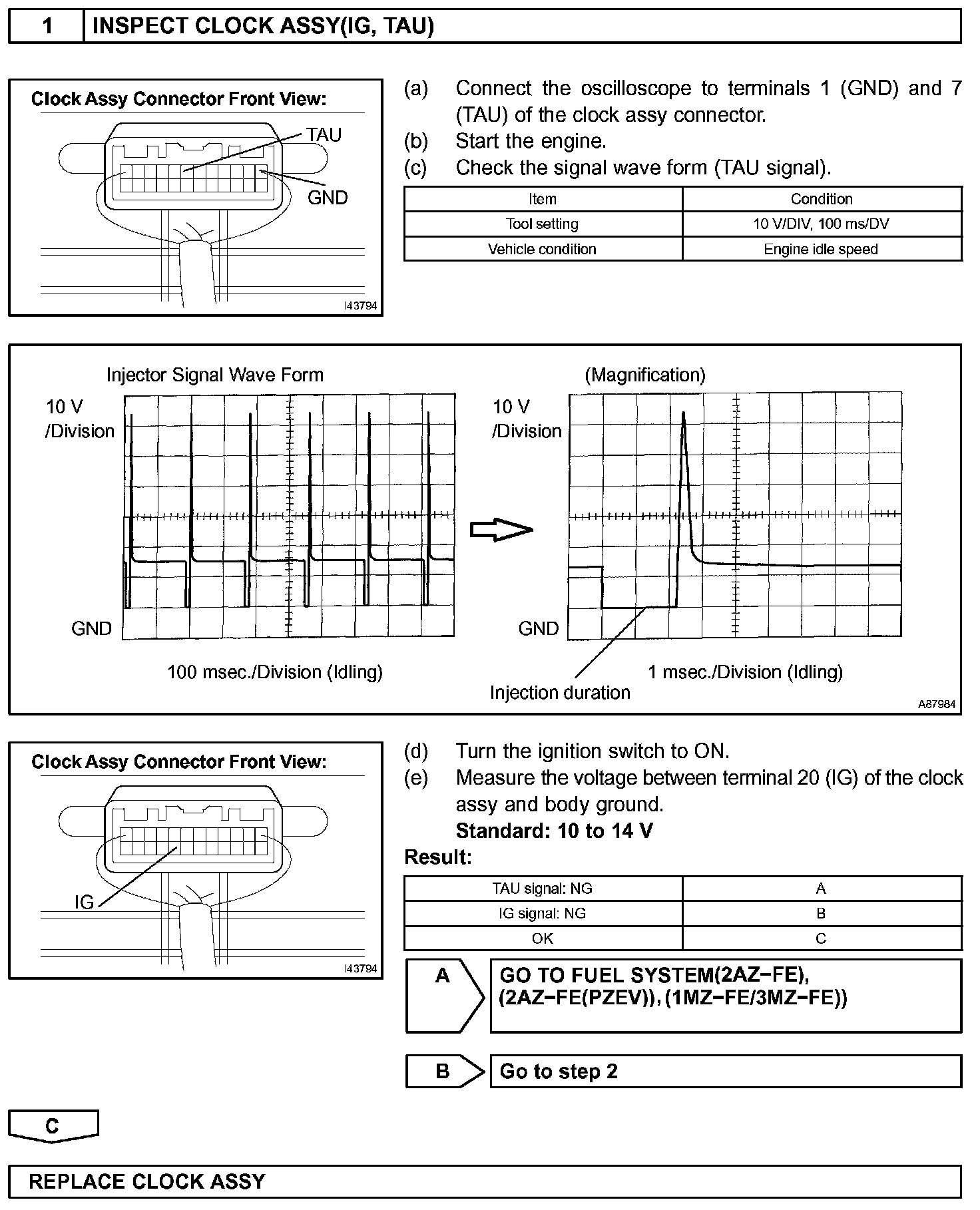

Step 1:
Step 2:
INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
This circuit is used only in the vehicle equipped with the automatic A/C.
INSPECTION PROCEDURE
