Fog/Driving Lamp: Service and Repair
FOG LAMP ASSEMBLY LHOVERHAUL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.
1. REMOVE FRONT BUMPER ASSEMBLY
2. REMOVE FOG LAMP ASSEMBLY LH

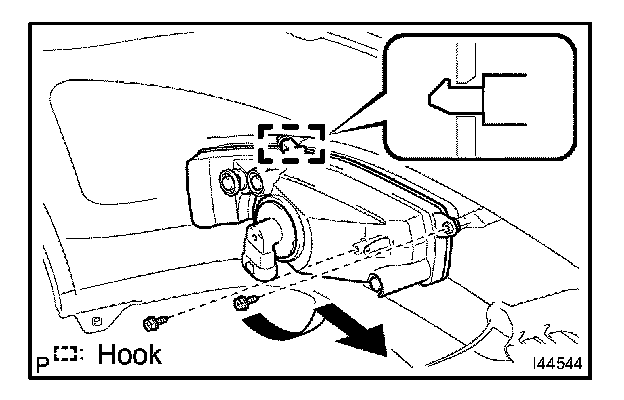

a. Remove the 2 screws.
b. Move the fog lamp assembly LH in the direction indicated by the arrow, disengage the hook, and remove the fog lamp assembly LH.
3. REMOVE FOG LAMP BULB
a. Turn the fog lamp bulb in the direction as shown in the illustration and remove the fog lamp bulb.
4. VEHICLE PREPARATION FOR FOG LAMP AIM ADJUSTMENT
5. PREPARATION FOR FOG LAMP AIMING
6. FOG LAMP AIMING INSPECTION
7. FOG LAMP AIMING ADJUSTMENT
