Overhaul

Headlamp Assy LH:

OVERHAUL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.

1. REMOVE FRONT BUMPER ASSEMBLY




2. REMOVE HEADLAMP ASSEMBLY LH
a. Remove the 2 bolts and disengage the pin.
b. Pull the headlamp assembly LH in the direction indicated by the arrow and remove the headlamp assembly LH.

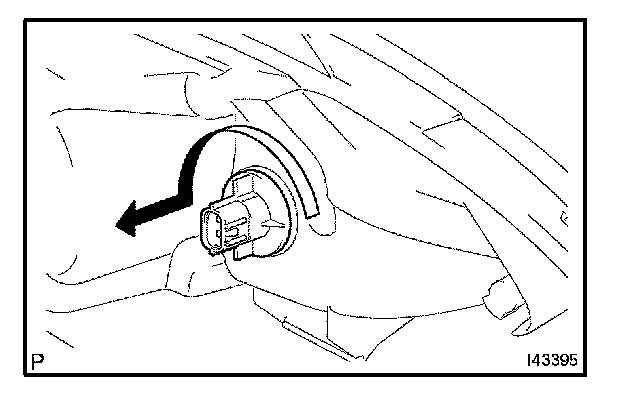

3. REMOVE HEADLAMP, NO.2 BULB
a. Turn in the direction indicated by the arrow and remove the headlamp, No.2 bulb.




4. REMOVE HEADLAMP, NO.1 BULB
a. Turn in the direction indicated by the arrow and remove the headlamp, No.1 bulb.

5. REMOVE FRONT TURN SIGNAL LAMP BULB




a. Turn in the direction indicated by the arrow and remove the socket plug assembly and the front turn signal lamp bulb as a unit.




b. Turn in the direction indicated by the arrow and remove the front turn signal lamp bulb.
c. Remove the socket plug assembly.

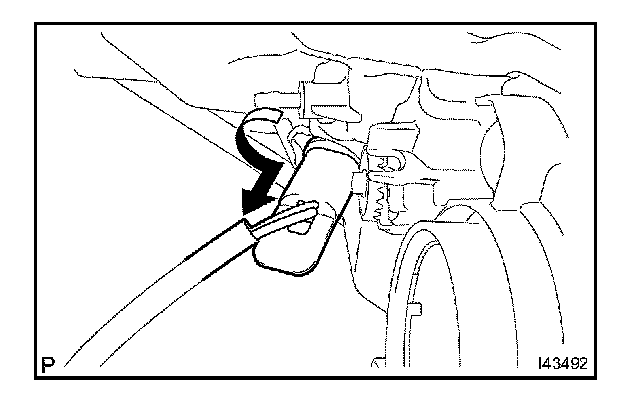

6. REMOVE CLEARANCE LAMP BULB
a. Turn in the direction indicated by the arrow and remove the headlamp housing RH and the clearance lamp bulb as a unit.
b. Remove the clearance lamp bulb from the headlamp housing RH.

7. VEHICLE PREPARATION FOR HEADLAMP AIM ADJUSTMENT
8. PREPARATION FOR HEADLAMP AIMING (Using a screen)
9. HEADLAMP AIMING INSPECTION
10. HEADLAMP AIMING ADJUSTMENT
11. VEHICLE PREPARATION FOR FOG LAMP AIM ADJUSTMENT
12. PREPARATION FOR FOG LAMP AIMING
13. FOG LAMP AIMING INSPECTION
14. FOG LAMP AIMING ADJUSTMENT
