Removal and Replacement

Headlamp Assy LH:

HEADLAMP ASSEMBLY LH

REPAIR

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- If the area where the headlamp unit LH is installed is broken, the repairs listed below can be performed inexpensively through the use of a repair use bracket. This may only be done if the headlamp assembly LH itself is not damaged.

1. REMOVE FRONT BUMPER ASSEMBLY
2. REMOVE HEADLAMP ASSEMBLY LH
3. INSTALL HEADLAMP PROTECTOR RETAINER UPPER LH

HINT:
- If the installation area of the headlamp assembly LH is damaged, use the supply bracket for low-cost repair.
- Ensure that the headlamp assembly LH is not damaged.

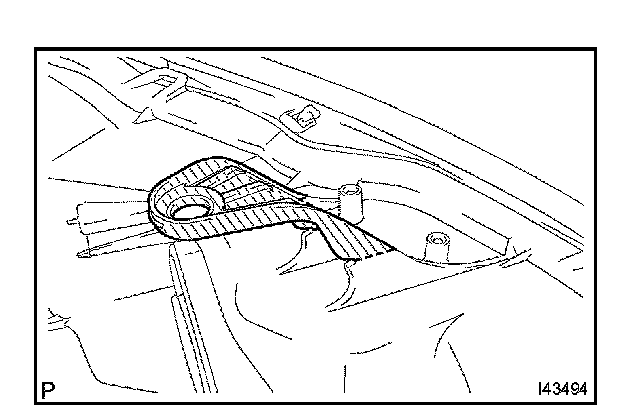

a. Cut off the part shaded in the illustration and sand smooth with sandpaper.

NOTE: After cutting off the part, place the headlamp protector retainer UPPER LH against the bosses and gradually file away until installation is possible.




b. Install the headlamp protector retainer UPPER LH with the 2 screws.

4. VEHICLE PREPARATION FOR HEADLAMP AIM ADJUSTMENT
5. PREPARATION FOR HEADLAMP AIMING (Using a screen)
6. HEADLAMP AIMING INSPECTION
7. HEADLAMP AIMING ADJUSTMENT
8. VEHICLE PREPARATION FOR FOG LAMP AIM ADJUSTMENT
9. PREPARATION FOR FOG LAMP AIMING
10. FOG LAMP AIMING INSPECTION
11. FOG LAMP AIMING ADJUSTMENT
