Operation CHARM: Car repair manuals for everyone.
Home >> Toyota >> 2006 >> Camry V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Component Tests and General Diagnostics >> Headlight Does Not Light Up

Headlight Does Not Light Up

HEADLIGHT DOES NOT LIGHT UP

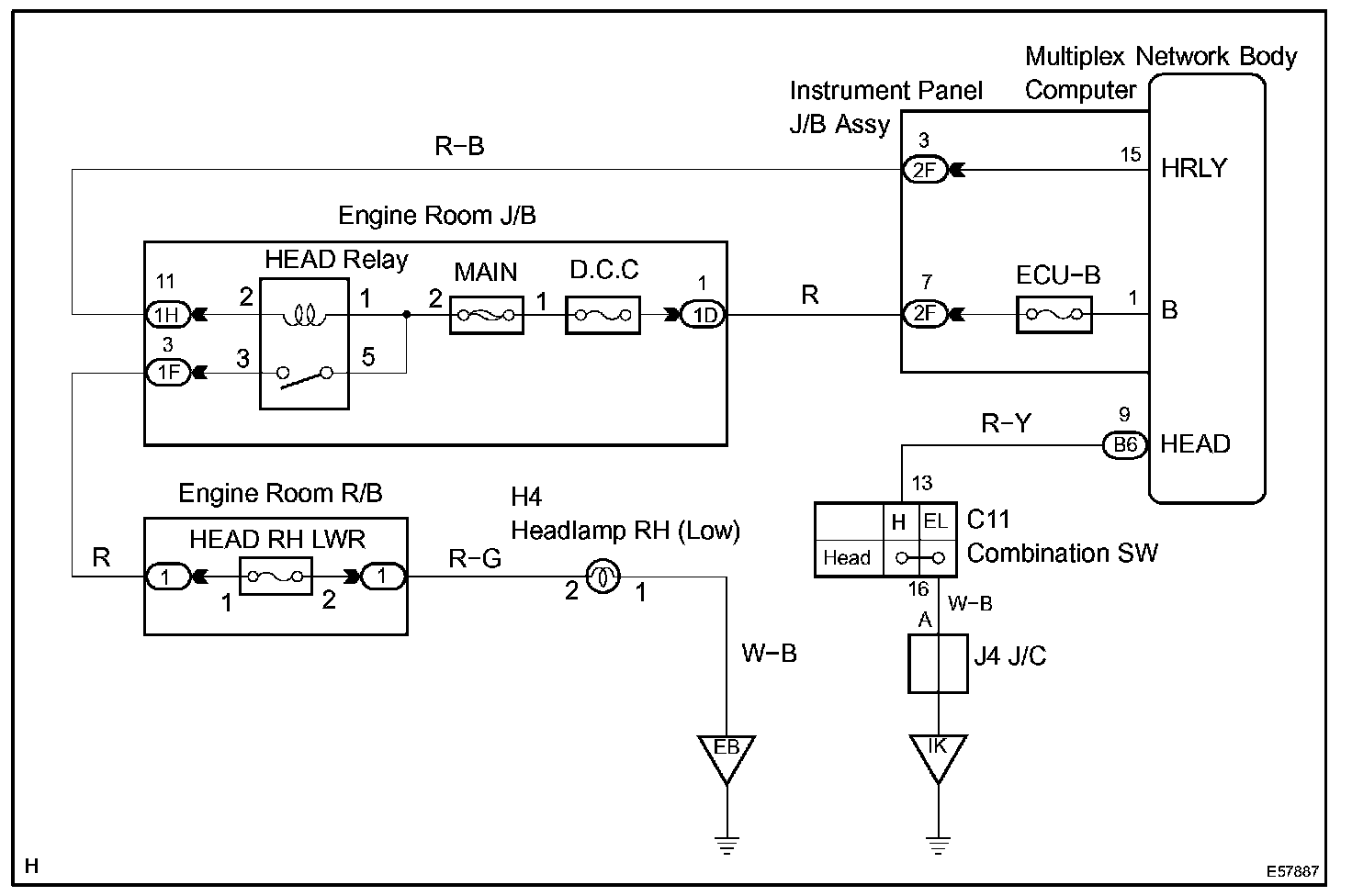

Wiring Diagram:






Step 1-2:




INSPECTION PROCEDURE
