Room Lamp ASSY No.1 Does Not Light Up
Room Lamp ASSY No.1 Does Not Light Up
ROOM LAMP ASSY NO.1 DOES NOT LIGHT UP
Wiring Diagram:

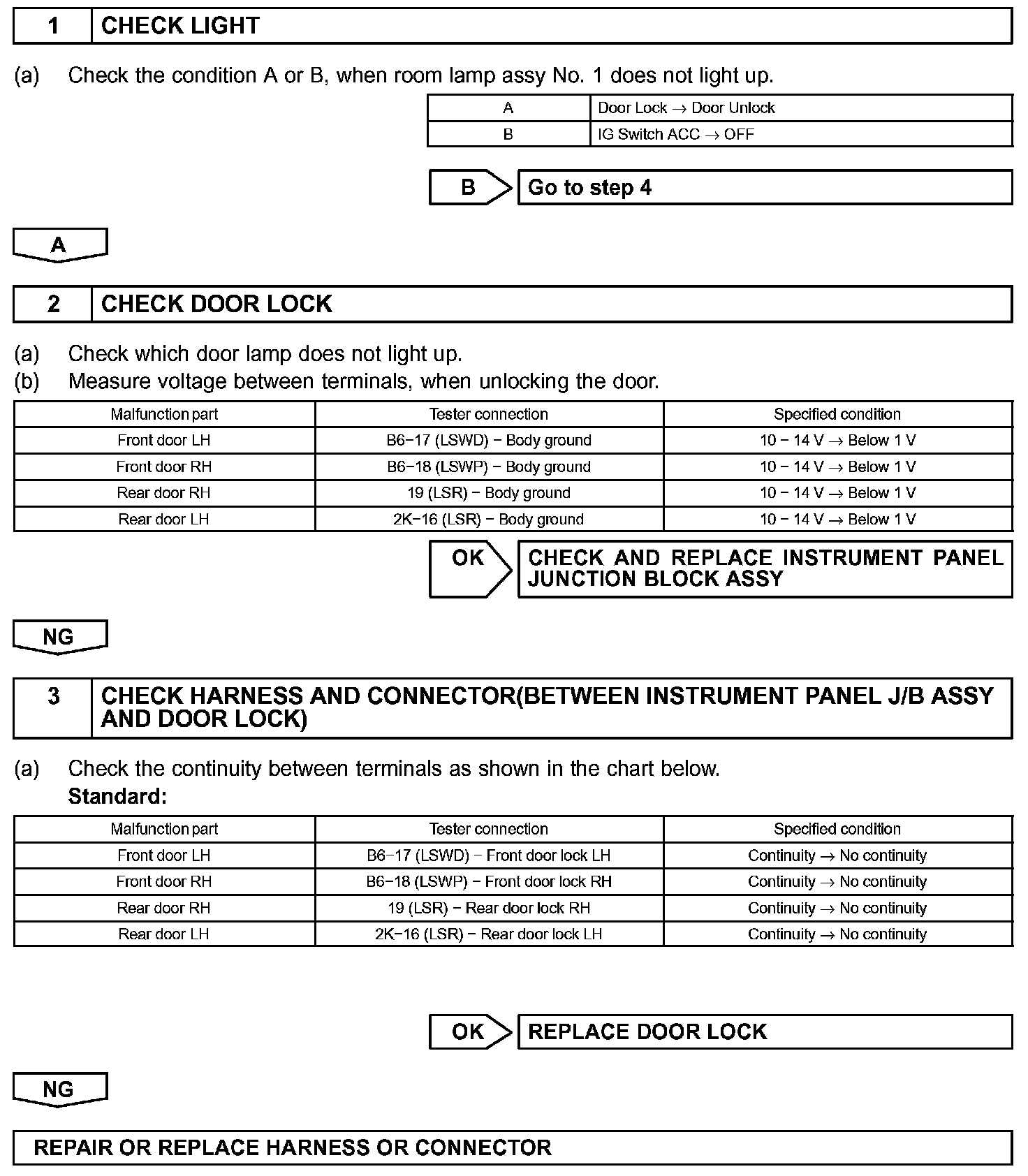

Step 1-3:

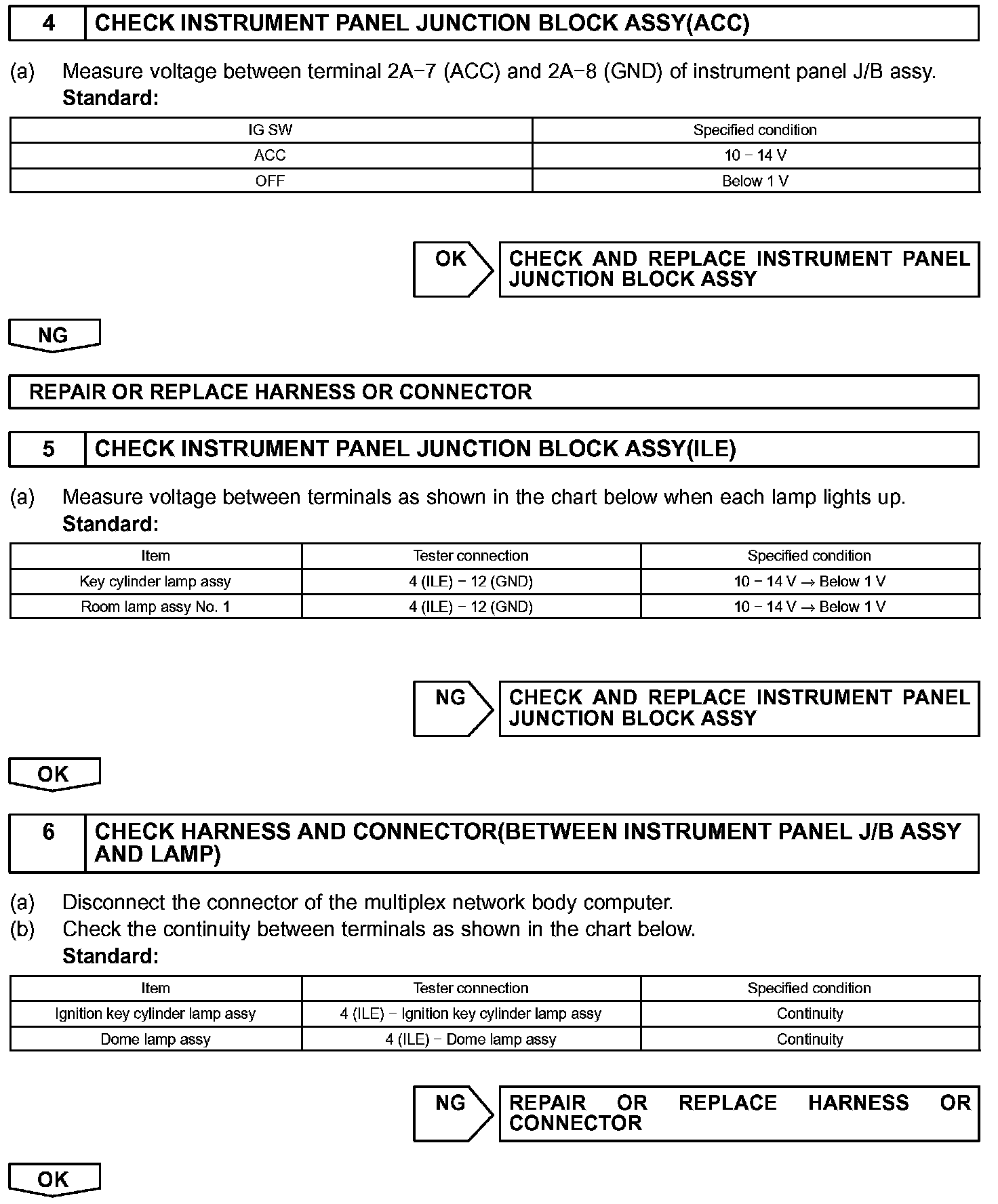

Step 4-6:

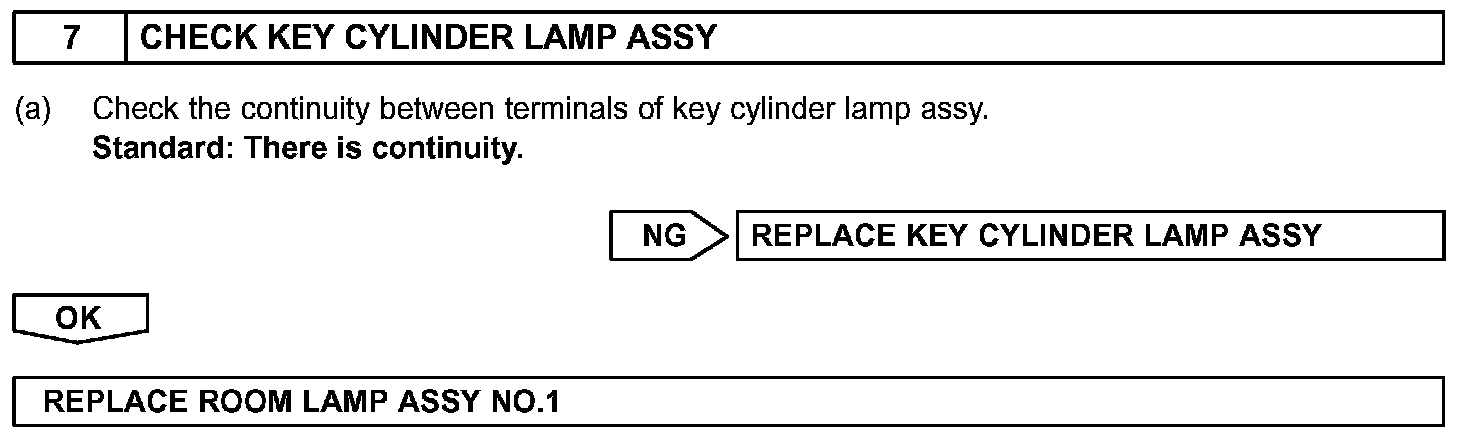

Step 7:
INSPECTION PROCEDURE
