Taillight Does Not Light Up

TAILLIGHT DOES NOT LIGHT UP

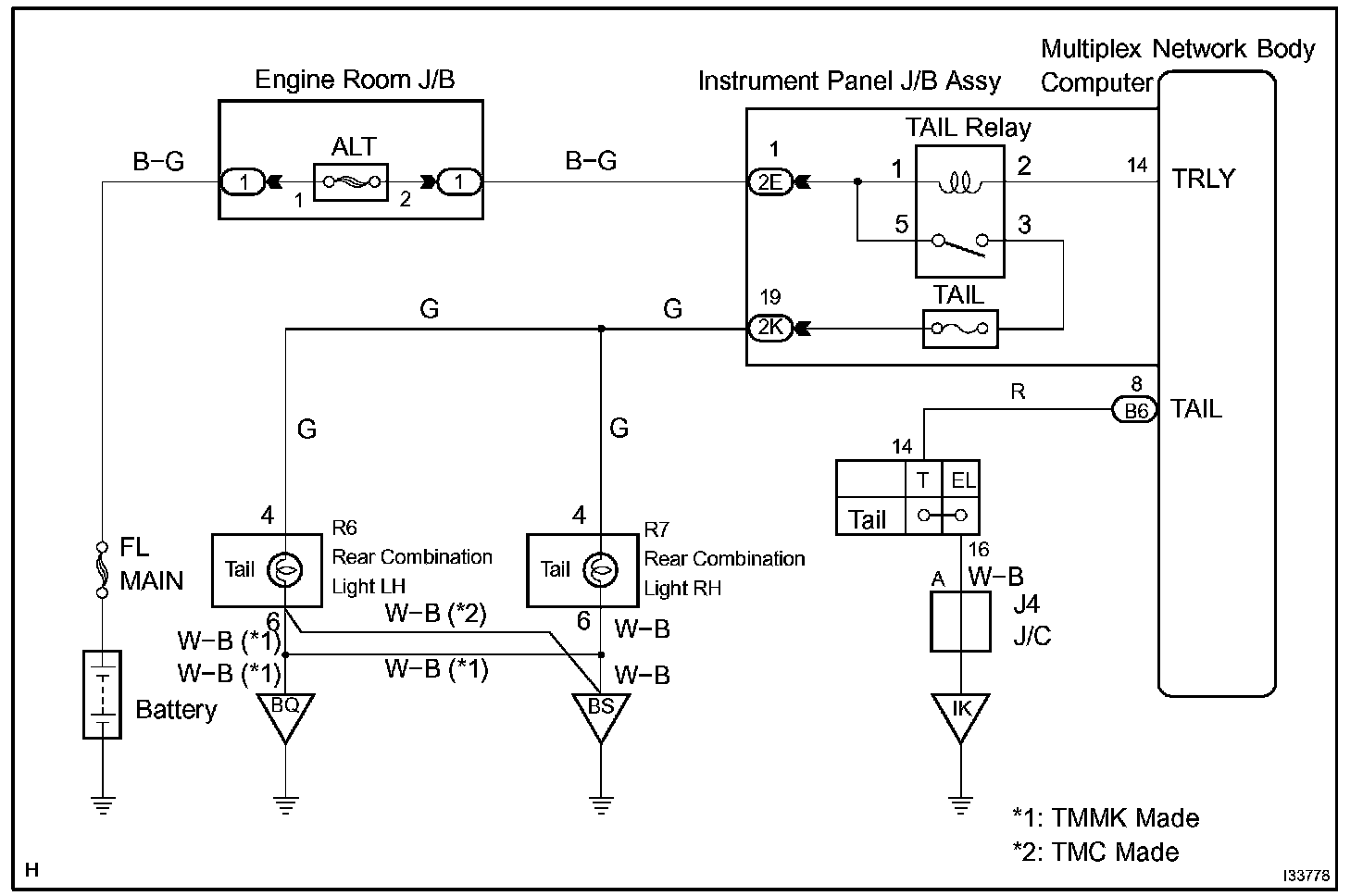

Wiring Diagram:






Step 1-2:




INSPECTION PROCEDURE
