Component Tests and General Diagnostics
INSPECTION1. INSPECT TIRE
a. Check the tires for wear and proper inflation pressure.
Cold tire inflation pressure:
b. Using a dial indicator, check the tire runout. Tire runout: 1.0 mm (0.039 in.) or less

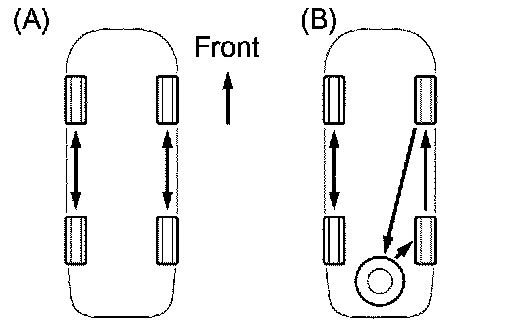

2. ROTATE TIRES
HINT:
- Rotate tires as shown in the illustration.
- Rotate as shown in (B) if the spare tire is included in the rotation.
3. INSPECT WHEEL BALANCE
a. Check and adjust the Off-the-car balance.
b. If necessary, check and adjust the On-the-car balance.
Imbalance after adjustment: 8.0 g (0.018 lb) or less
4. INSPECT BEARING LOOSENESS
5. INSPECT AXLE HUB RUNOUT
