Multiple Junction Connector: Locations

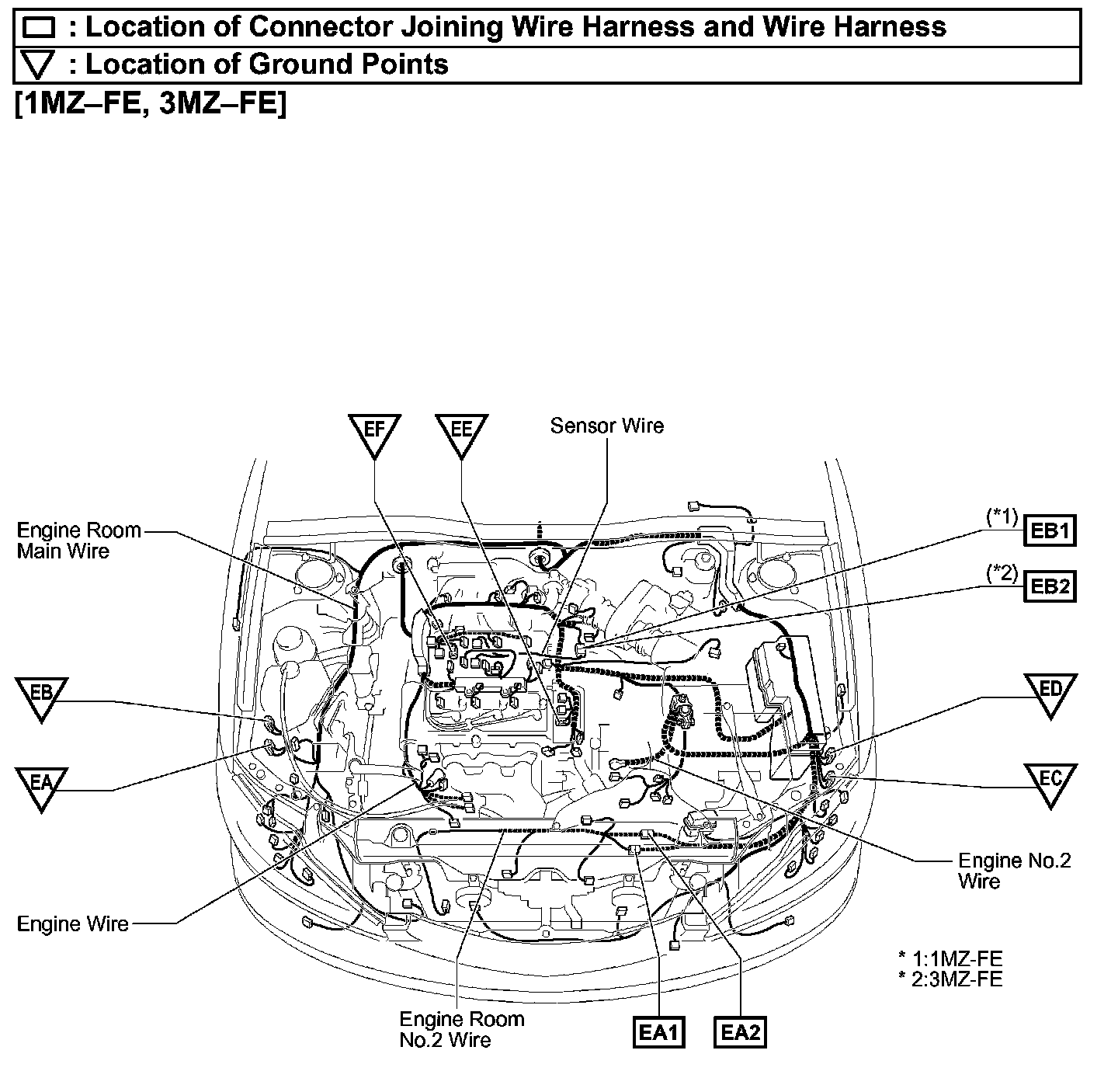

EA1 - EB2, EA - EF:

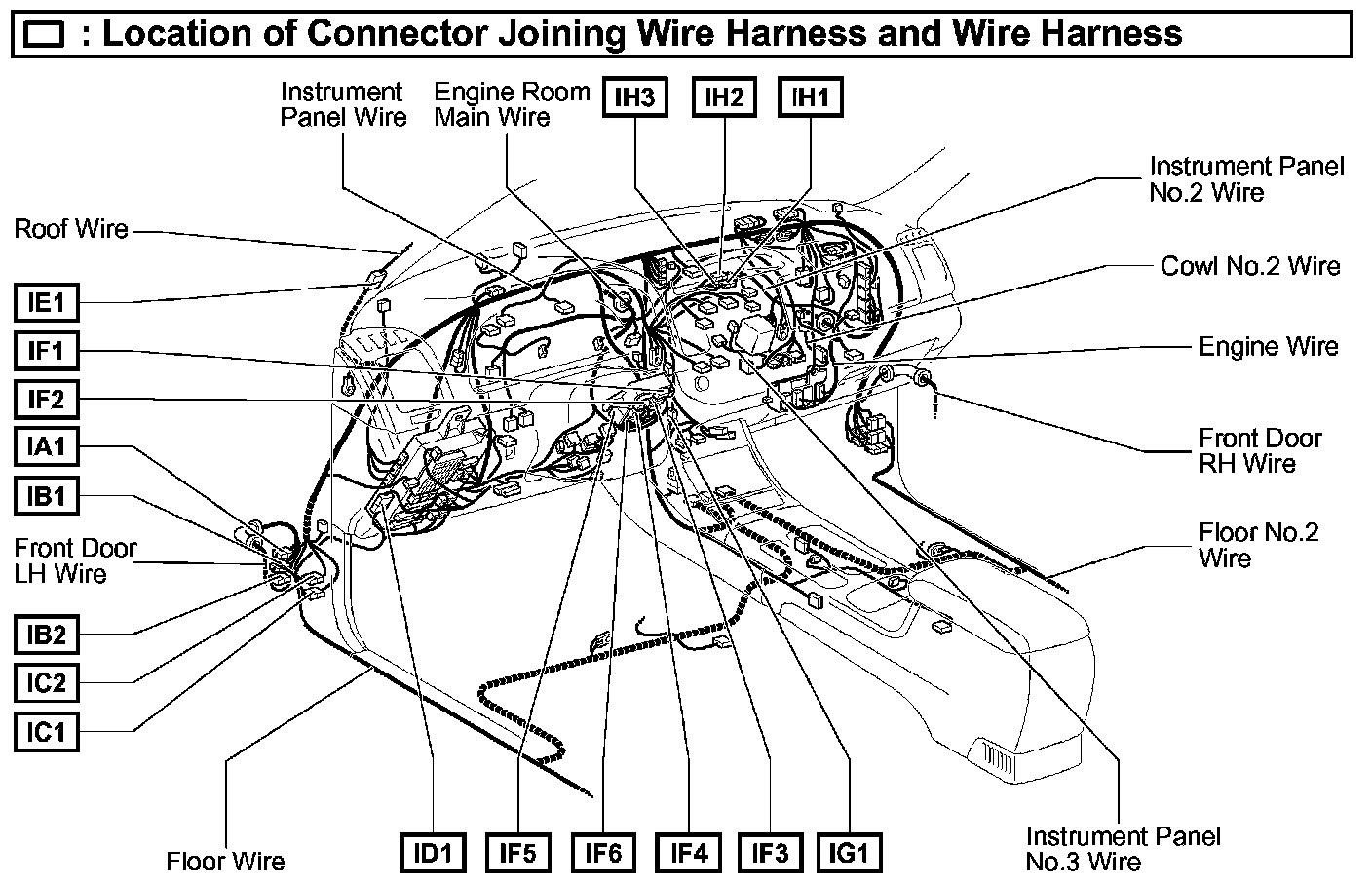

IA1 - IH3:

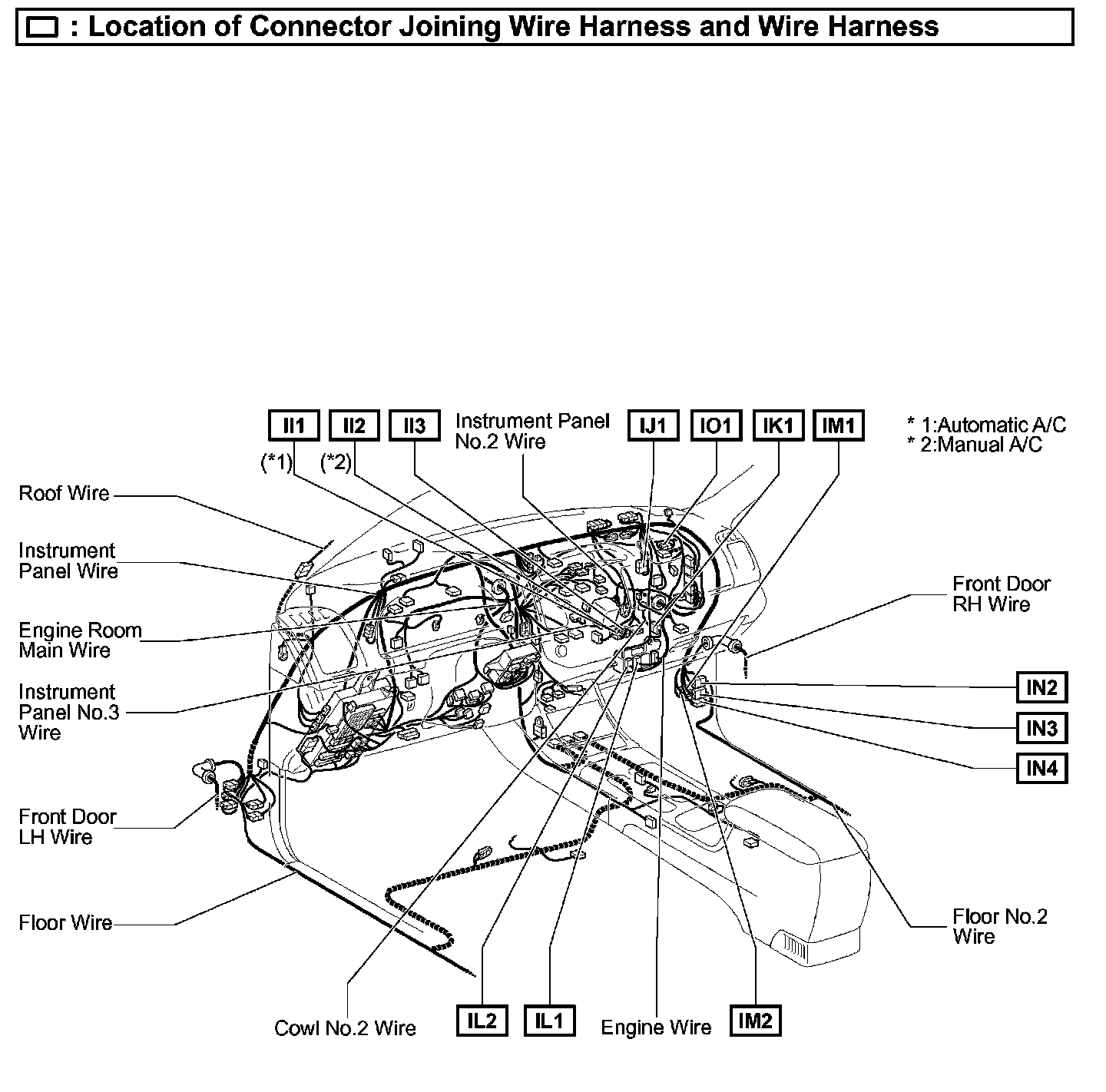

II1 - IO1:

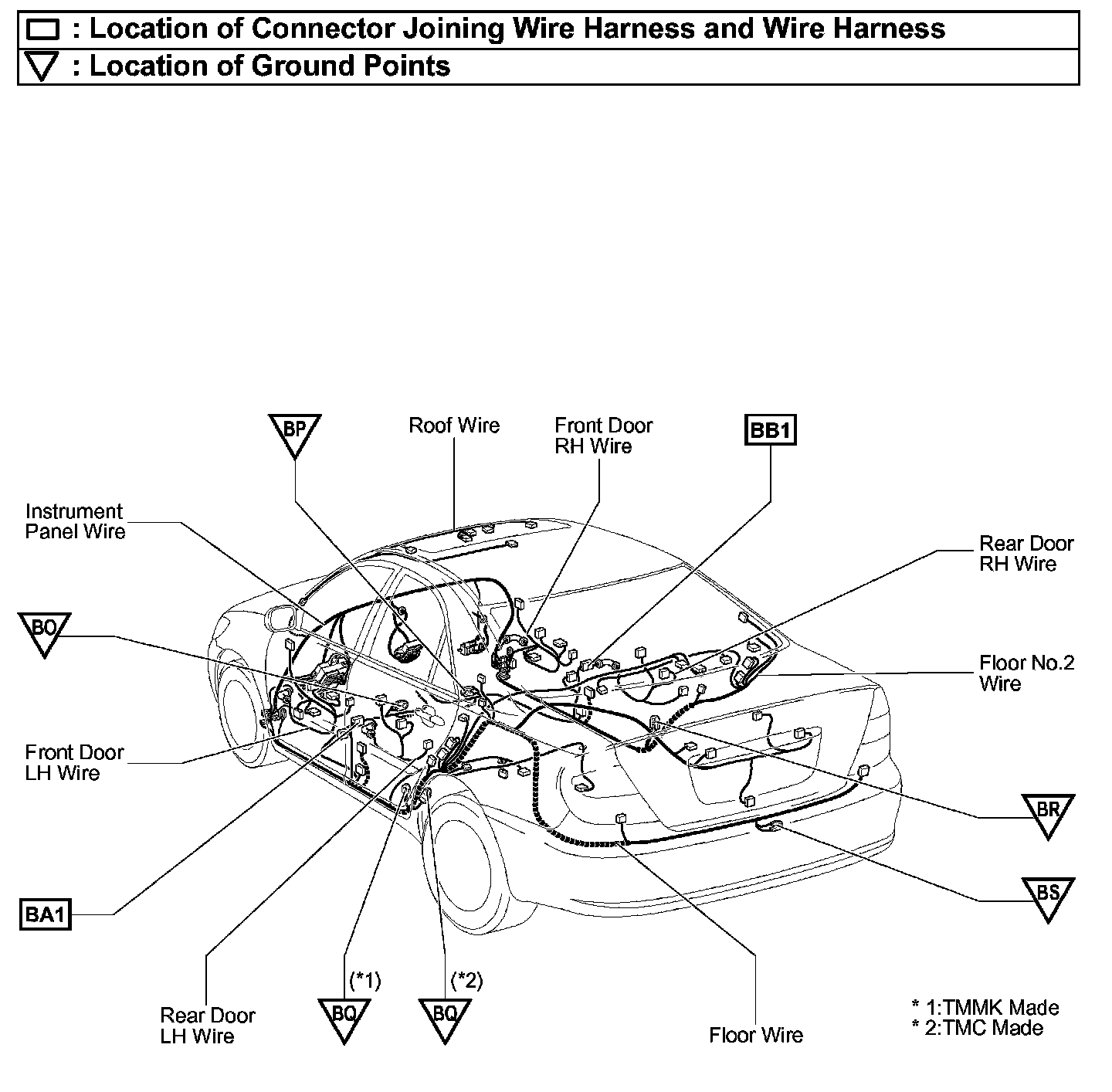

BA1 - BB1, BO - BS:



BE1:
