Air Bag Control Module: Testing and Inspection

Terminals Of Control Module/Pinouts - Airbag Sensor Assy Center (Part 1):

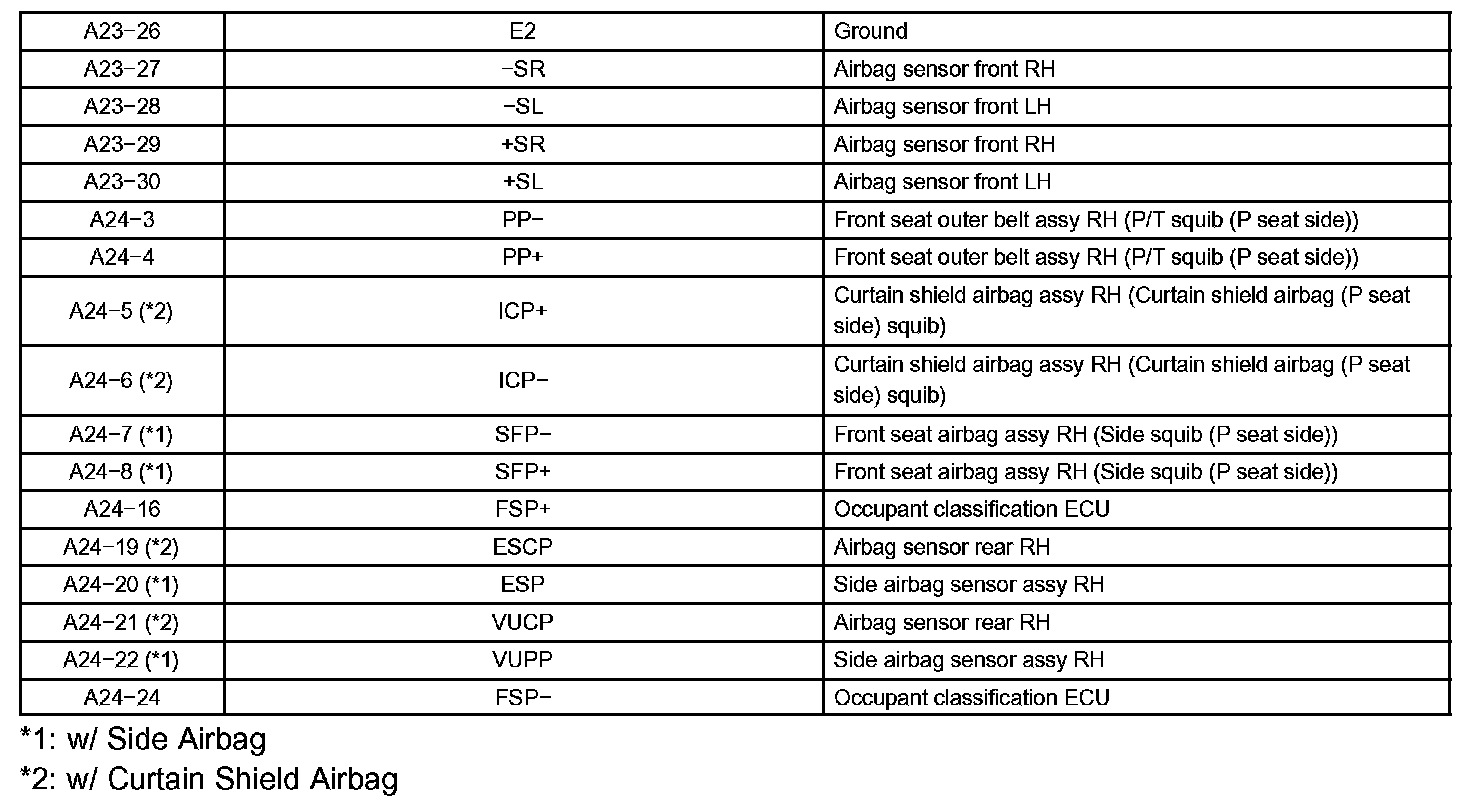

Terminals Of Control Module/Pinouts - Airbag Sensor Assy Center (Part 2):

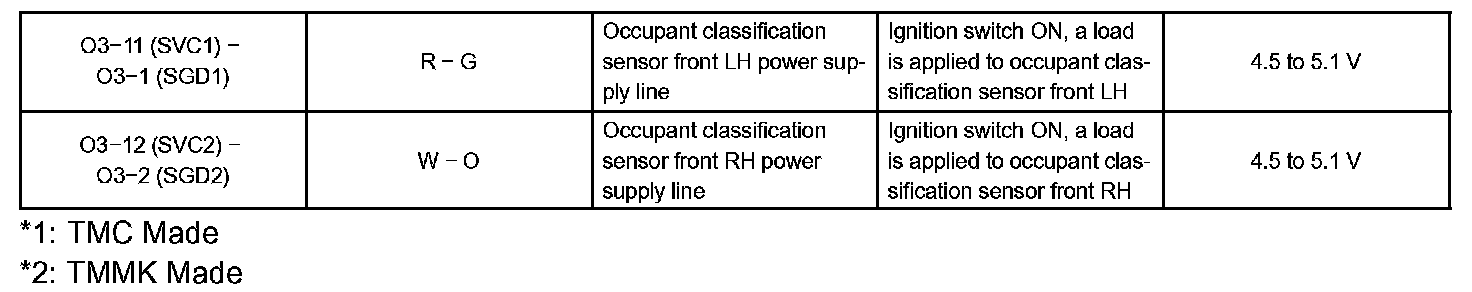

Terminals Of Control Module/Pinouts - Occupant Classification ECU (W/ Power Seat) (Part 1):

Terminals Of Control Module/Pinouts - Occupant Classification ECU (W/ Power Seat) (Part 2):

Terminals Of Control Module/Pinouts - Occupant Classification ECU (W/o Power Seat) (Part 1):

Terminals Of Control Module/Pinouts - Occupant Classification ECU (W/o Power Seat) (Part 2):
