Exhaust Manifold

Exhaust Manifold Converter Sub-Assembly No.2
a. Install a new gasket and the converter sub-assembly No. 2 with the 7 nuts. Uniformly, tighten the 7 nuts in the sequence shown in the illustration.
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)
b. Retighten nuts 1 and 2 as shown in the illustration.

Exhaust Manifold Heat Insulator No.2
Torque: 8.5 Nm (87 kgf-cm, 55 inch lbs.)

Manifold Stay No.2
Torque: 34 Nm (347 kgf-cm, 25 ft. lbs.)





Exhaust Manifold Sub-assembly RH

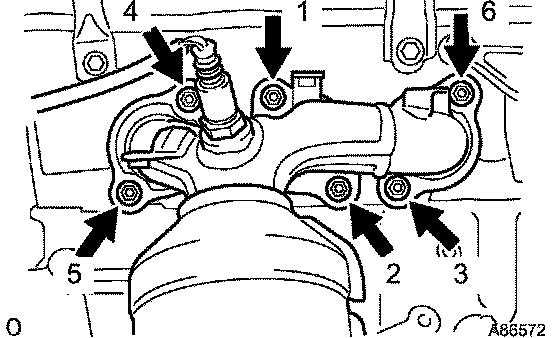

a. Install a new gasket and the exhaust manifold RH. Uniformly tighten the 5 nuts in the sequence shown in the illustration.
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)
b. Retighten nuts 1 and 2 shown in the illustration.
