Component Tests and General Diagnostics
ON-VEHICLE INSPECTION1. REMOVE FRONT WHEEL
2. DISCONNECT FRONT DISC BRAKE CALIPER ASSEMBLY LH
3. REMOVE FRONT DISC

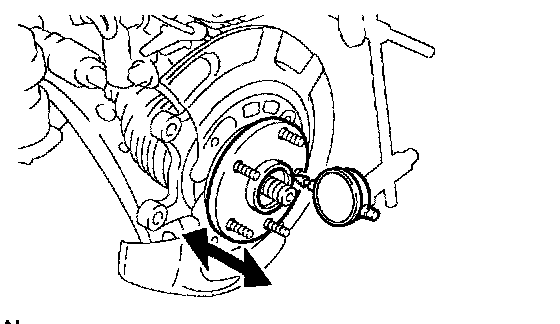

4. INSPECT FRONT AXLE HUB BEARING BACKLASH
a. Using a dial indicator, check the backlash near the center of the axle hub.
Maximum: 0.05 mm (0.0020 inch)
If the backlash exceeds the maximum, replace the bearing.
5. INSPECT FRONT AXLE HUB DEVIATION
a. Using a dial indicator, check the deviation at the surface of the axle hub outside the hub bolt.
Maximum: 0.05 mm (0.0020 inch)
If the backlash exceeds the maximum, replace the axle hub.
6. INSTALL FRONT DISC
7. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY LH
8. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
9. REMOVE REAR WHEEL
10. DISCONNECT REAR DISC BRAKE CALIPER ASSEMBLY LH (DISC REAR BRAKE TYPE)
11. REMOVE REAR DISC (DISC REAR BRAKE TYPE)
12. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY (DRUM REAR BRAKE TYPE)

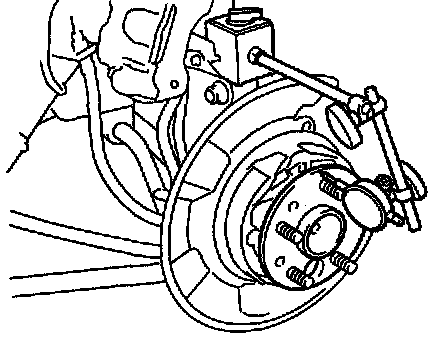

13. INSPECT REAR AXLE HUB BEARING BACKLASH
a. Set a dial indicator near the center of the axle hub and check the backlash in the bearing shaft direction.
Maximum: 0.05 mm (0.0020 inch)
If the backlash exceeds the maximum, replace the axle hub assembly.
14. INSPECT REAR AXLE HUB DEVIATION
a. Using a dial indicator, check the deviation at the surface of the axle hub outside the hub bolt.
Maximum: 0.07 mm (0.0027 inch)
If the backlash exceeds the maximum, replace the axle hub assembly.
15. INSTALL REAR DISC (DISC REAR BRAKE TYPE)
16. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH (DISC REAR BRAKE TYPE)
17. INSTALL REAR BRAKE DRUM SUB-ASSEMBLY (DRUM REAR BRAKE TYPE)
18. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
