Power Window Motor: Testing and Inspection
INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY LHNOTE:
- Be sure not to apply battery voltage to terminals 2,3 and 6 of the power window regulator motor assembly LH connector, because it might damage the pulse sensor and the limit switch.
- Be sure to reset the power window regulator motor assembly (initial position setting of the limit switch) when the power window regulator motor assembly LH is installed to the regulator.

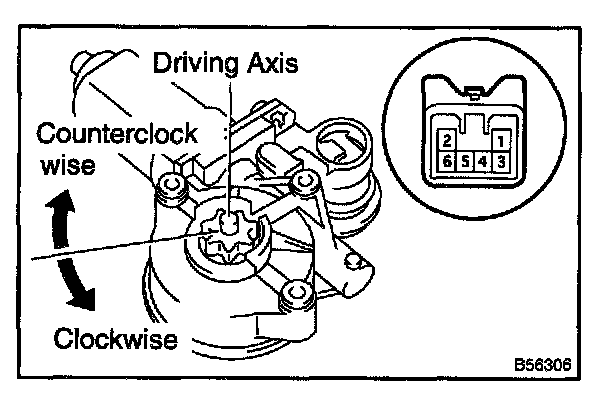

a. Inspect the operation of the front LH side power window regulator motor assembly.

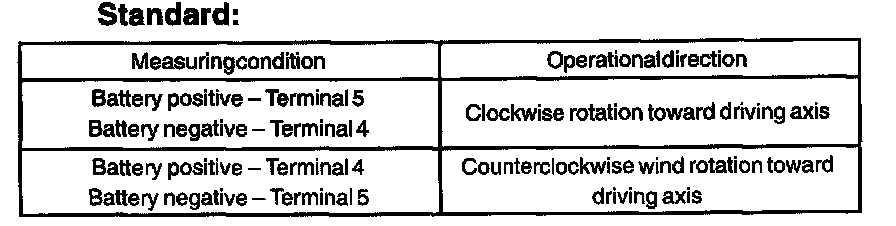

1. When adding the battery voltage to each connector terminal, check that the motor operates smoothly.
b. Check the PTC operation inside the power window regulator motor.
NOTE: Work must be done with the power window regulator and door glass installed to the vehicle.
1. Set the DC 400 A probe of TOYOTA electrical tester to terminal 4 or 5 of the wire harness.
NOTE: Match the arrow mark of the probe with the current direction.
2. Set the door glass at the fully-closed position.
3. When approximately 60 seconds have passed after fully closing the door glass, check how long the current when pressing the power regulator switch UP again (at initial time) takes to change from approximately 16 - 34 A to less than 1 A.
Standard: Approx. 4 - 90 seconds
4. When approximately 60 seconds have passed after the cutoff checking, check that the door glass will go down when the power regulator switch is pressed DOWN.
INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

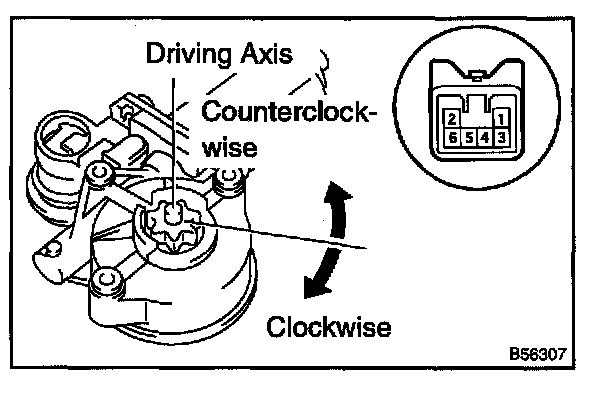

a. Inspect the operation of the front RH side power window regulator motor assembly.

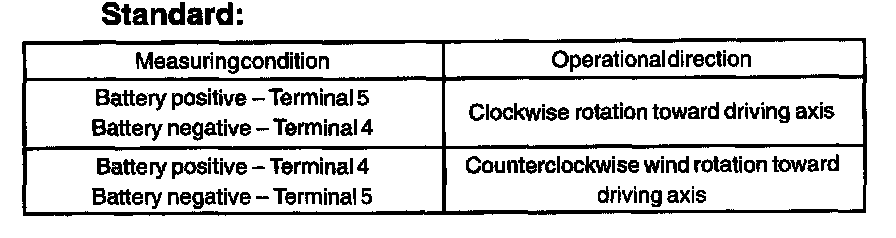

1. When adding the battery voltage to each connector terminal, check that the motor operates smoothly.
b. Check the PTC operation inside the power window regulator motor.
NOTE: Work must be done with the power window regulator and door glass installed to the vehicle.
1. Set the DC 400 A probe of TOYOTA electrical tester to terminal 4 or 5 of the wire harness.
NOTE: Match the arrow mark of the probe with the current direction.
2. Set the door glass at the fully-closed position.
3. When approximately 60 seconds have passed after fully closing the door glass, check how long the current when pressing the power regulator switch UP again (at initial time) takes to change from approximately 16 - 34 A to less than 1 A.
Standard: Approx. 4-90 seconds
4. When approximately 60 seconds have passed after the cutoff checking, check that the door glass will go down when the power regulator switch is pressed DOWN.
INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH
a. Inspect the operation of the rear LH side power window regulator motor assembly.
1. When adding the battery voltage to each connector terminal, check that the motor operates smoothly.
b. Check the PTC operation inside the power window regulator motor.
NOTE: Work must be done with the power window regulator and door glass installed to the vehicle.
1. Set the DC 400 A probe of TOYOTA electrical tester to terminal 4 or 5 of the wire harness.
NOTE: Match the arrow mark of the probe with the current direction.
2. Set the door glass at the fully-closed position
3. When approximately 60 seconds have passed after fully closing the door glass, check how long the current when pressing the power regulator switch UP again (at initial time) takes to change from approximately 16 - 34 A to less than 1 A.
Standard: Approx. 4 - 90 seconds
4. When approximately 60 seconds have passed after the cutoff checking, check that the door glass will go down when the power regulator switch is pressed DOWN.
INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
a. Inspect the operation of the rear RH side power window regulator motor assembly.
1. When adding the battery voltage to each connector terminal, check that the motor operates smoothly.
b. Check the PTC operation inside the power window regulator motor.
NOTE: Work must be done with the power window regulator and door glass installed to the vehicle.
1. Set the DC 400 A probe of TOYOTA electrical tester to terminal 4 or 5 of the wire harness.
NOTE: Match the arrow mark of the probe with the current direction.
2. Set the door glass at the fully-closed position.
3. When approximately 60 seconds have passed after fully closing the door glass, check how long the current when pressing the power regulator switch UP again (at initial time) takes to change from approximately 16 - 34 A to less than 1 A.
Standard: Approx. 4 - 90 seconds
4. When approximately 60 seconds have passed after the cutoff checking, check that the door glass will go down when the power regulator switch is pressed DOWN.
