C1245

DTC C1245/45 MALFUNCTION IN DECELERATION SENSOR

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The yaw rate and deceleration sensors detect any gravity applied to the vehicle and transmit the signal to the skid control ECU via the CAN communication system.

Wiring Diagram:

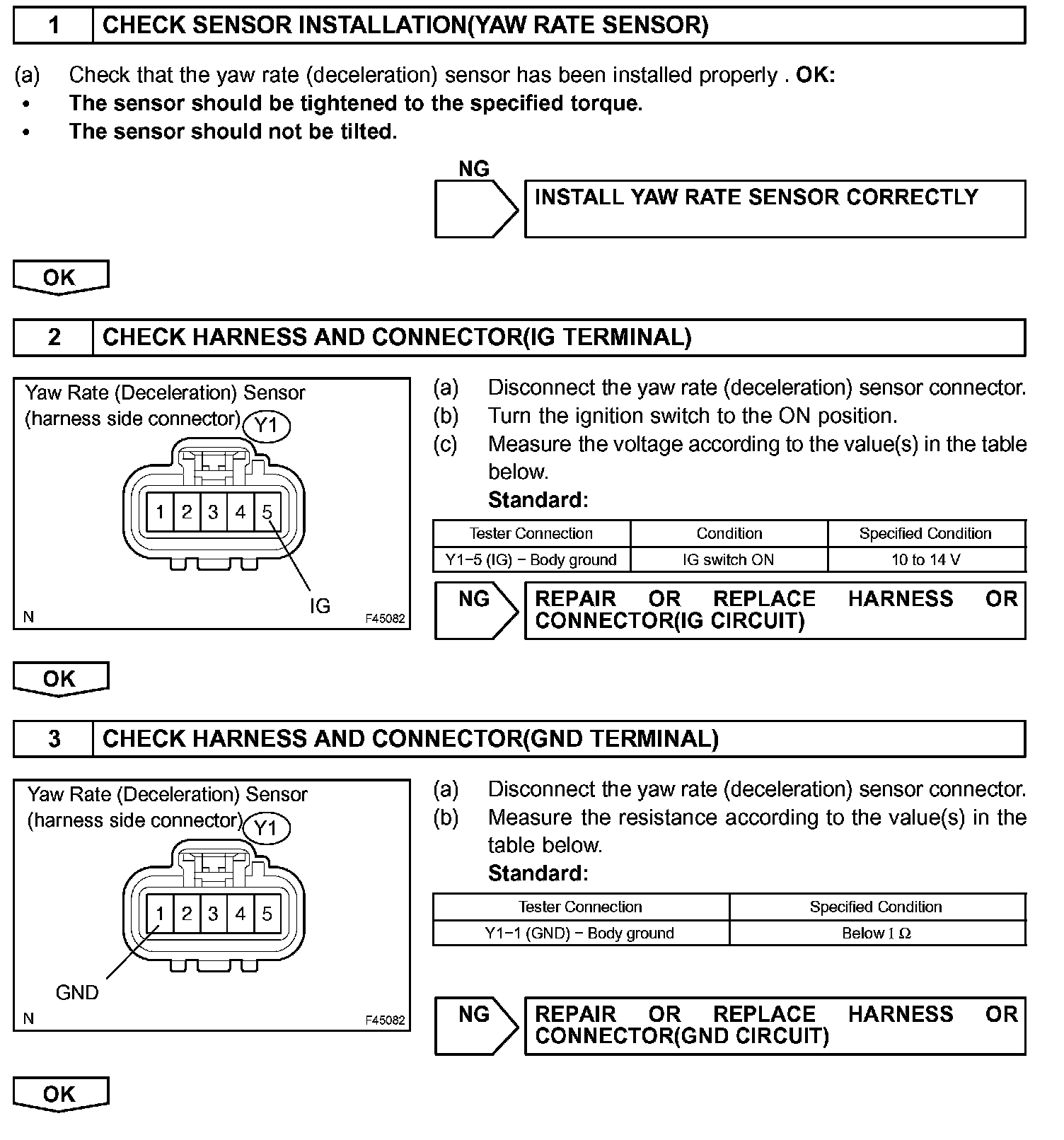

Step 1-3:

Typical Enabling Conditions:

INSPECTION PROCEDURE

NOTE: When replacing the ABS & TRACTION actuator assembly and yaw rate (deceleration) sensor, perform zero point calibration. Calibration

HINT: When U0073/94, U0123/62, U0124/95 or U0126/63 is output together with C1232/32 or C1334/34, inspect and repair the trouble areas indicated by U0073/94, U0123/62, U0124/95 or U0126/63 first.
