ABS w/ EBD & BA & TRAC & VSC System

DIAGNOSTIC TROUBLE CODE CHART

C0200/31-C1236/36:

C1238/38-U0124/95:

HINT: If a malfunction code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, turn to the respective "DTC No."in the DTC chart.

HINT:
- In some cases, the hand-held tester cannot be used when the ABS warning light remains on.
- When U0073/94, U0123/62, U0124/95 or U0126/63 are output, inspect and repair the trouble areas indicated by U0073/94, U0123/62, U0124/95 or U0126/63 first.

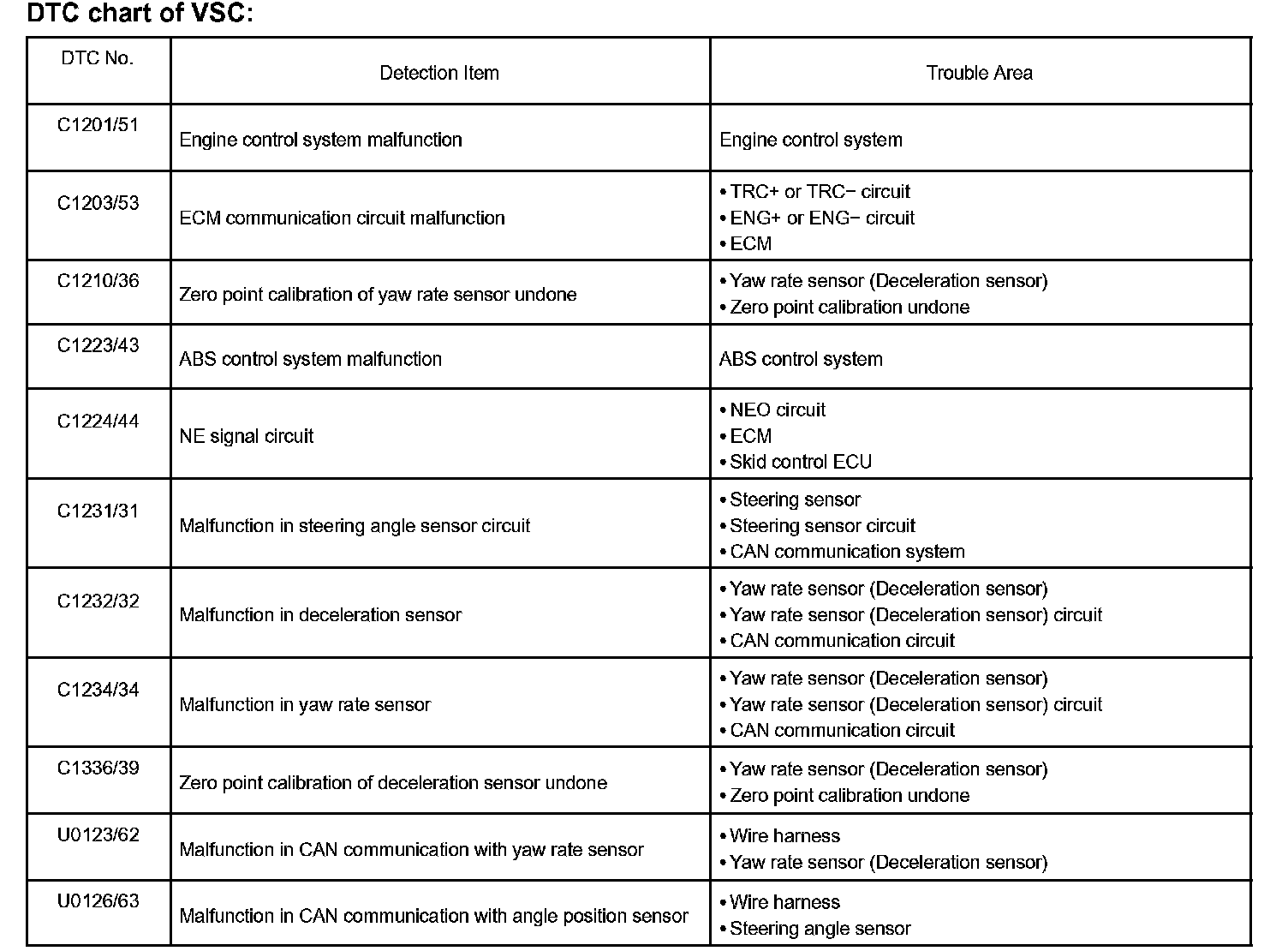

C1201/51-U0126/63:

HINT: In some cases, the hand-held tester cannot be used when the VSC warning light remains on.

C1271/71-C0371/71:

DTC CHART OF SENSOR CHECK FUNCTION

HINT: The codes in this table are output only in SIGNAL CHECK (TEST MODE)
