Pinout Values and Diagnostic Parameters

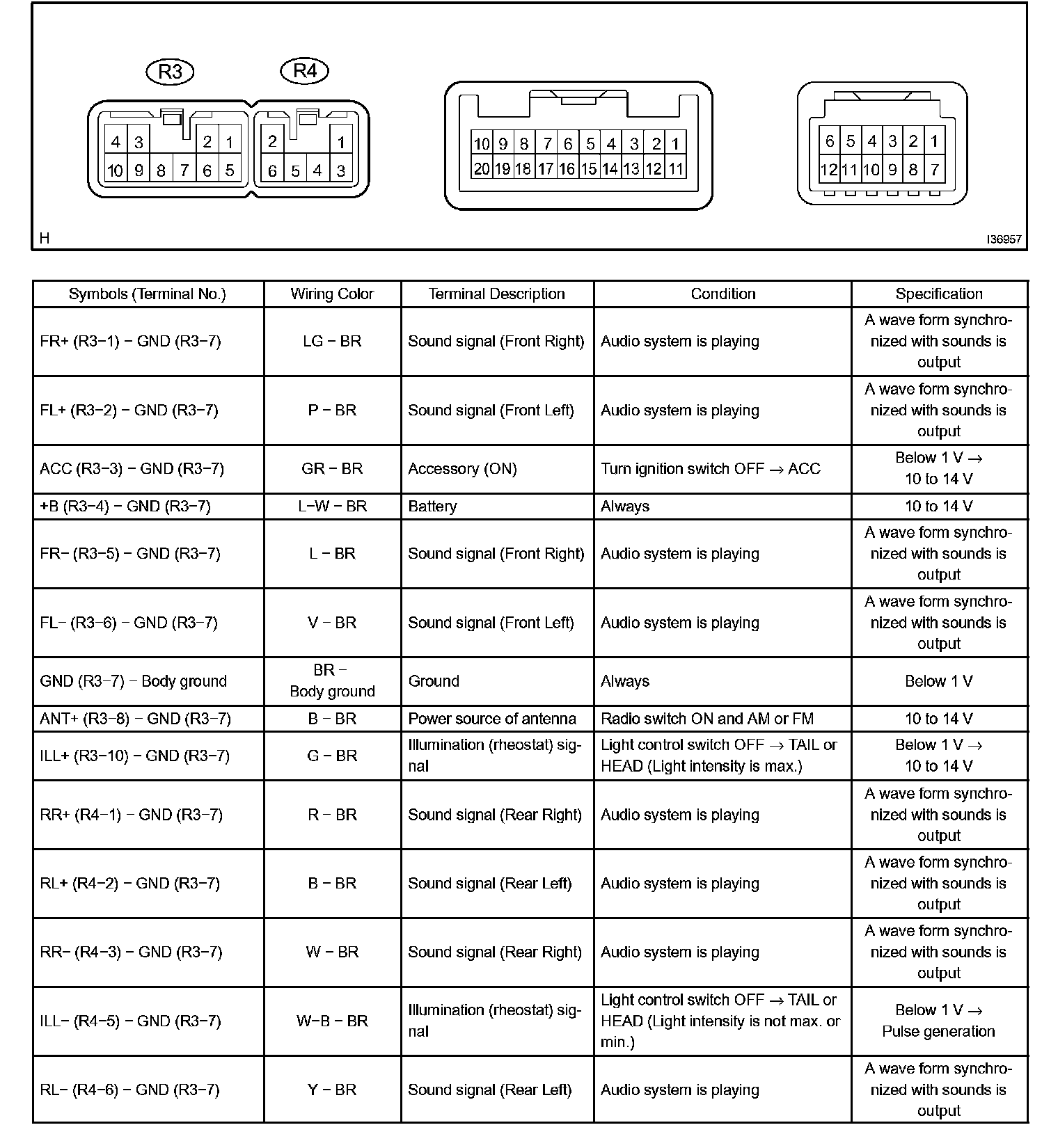

Terminals Of Control Module/Pinouts - Radio Receiver Assy (Separate Type Amplifier):

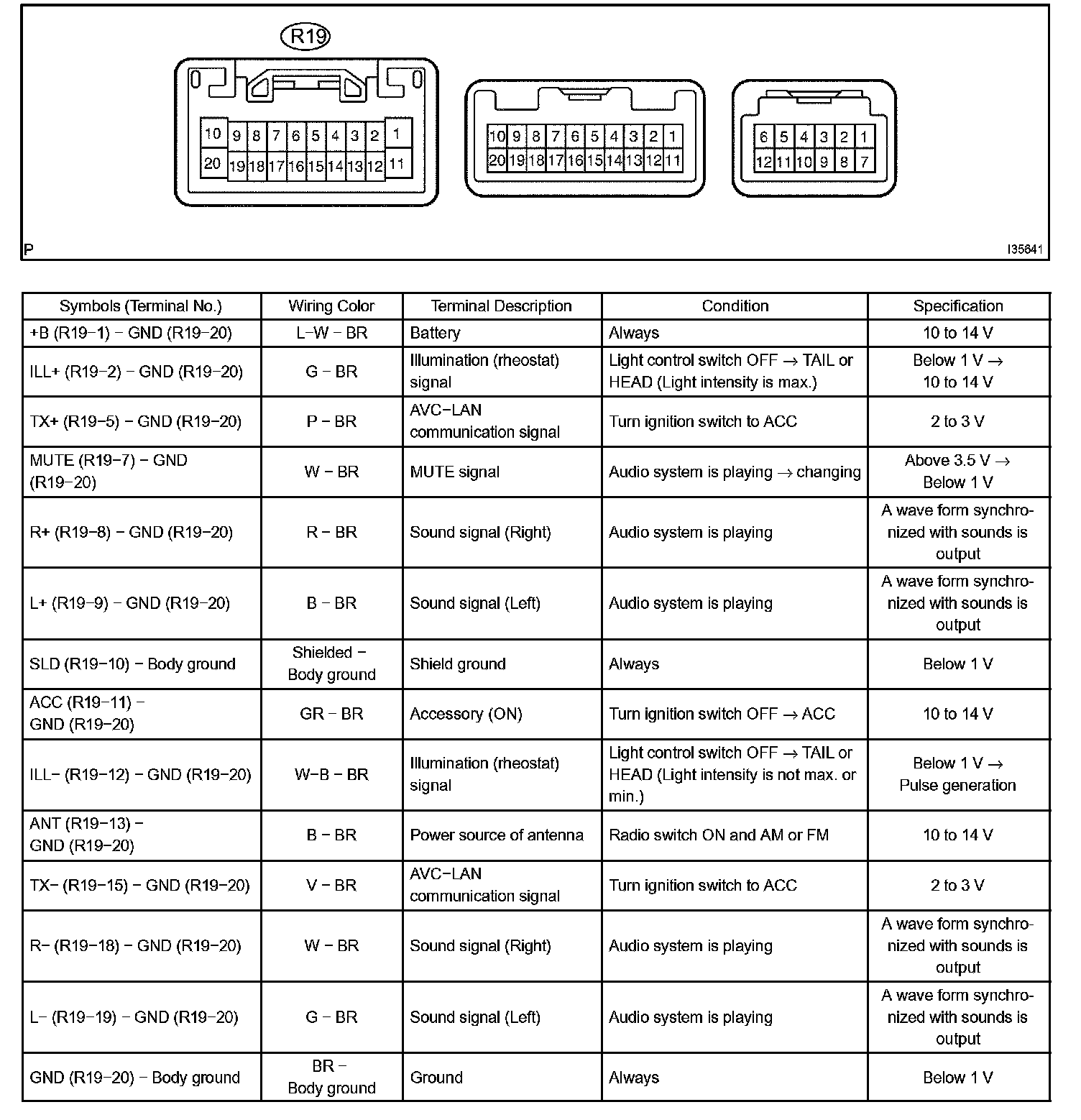

Terminals Of Control Module/Pinouts - Radio Receiver Assy (Built-In Type Amplifier):

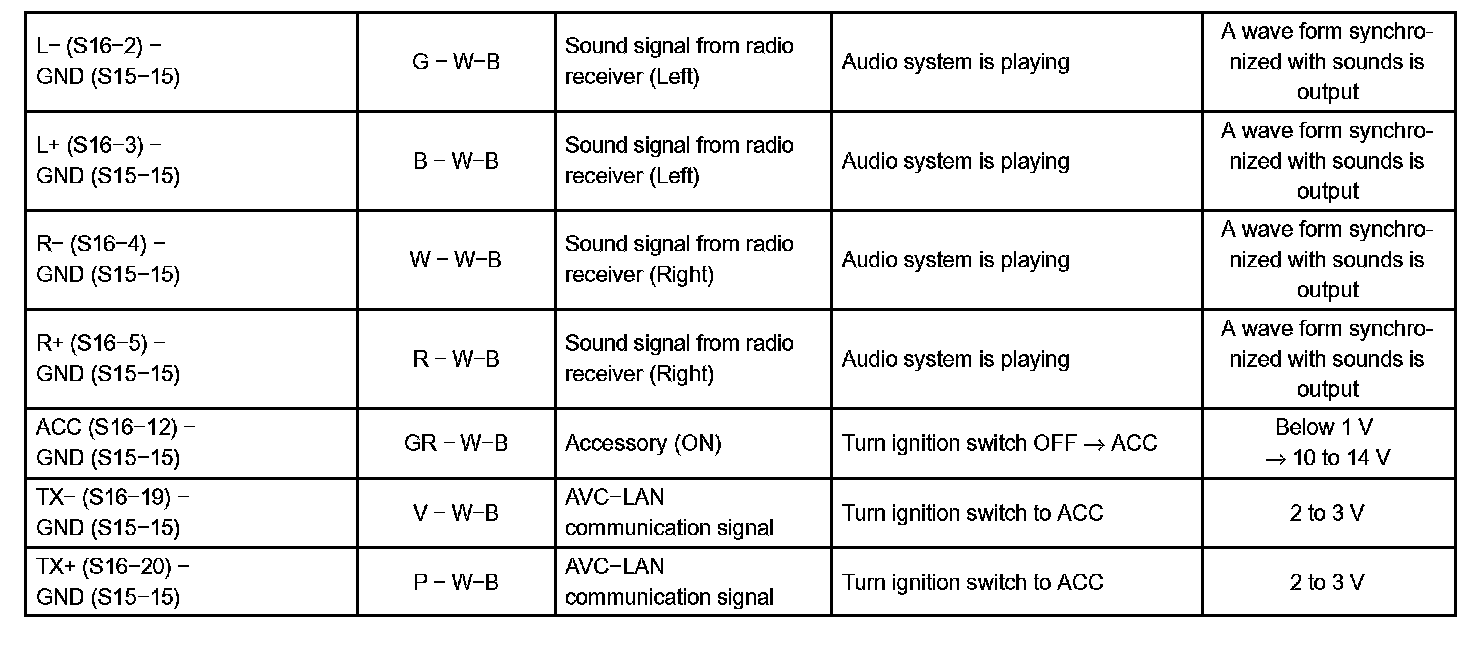

Terminals Of Control Module/Pinouts - Stereo Component Amplifier Assy Part 1:



Terminals Of Control Module/Pinouts - Stereo Component Amplifier Assy Part 2:
