Home >> Toyota >> 2006 >> Corolla L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Front Door

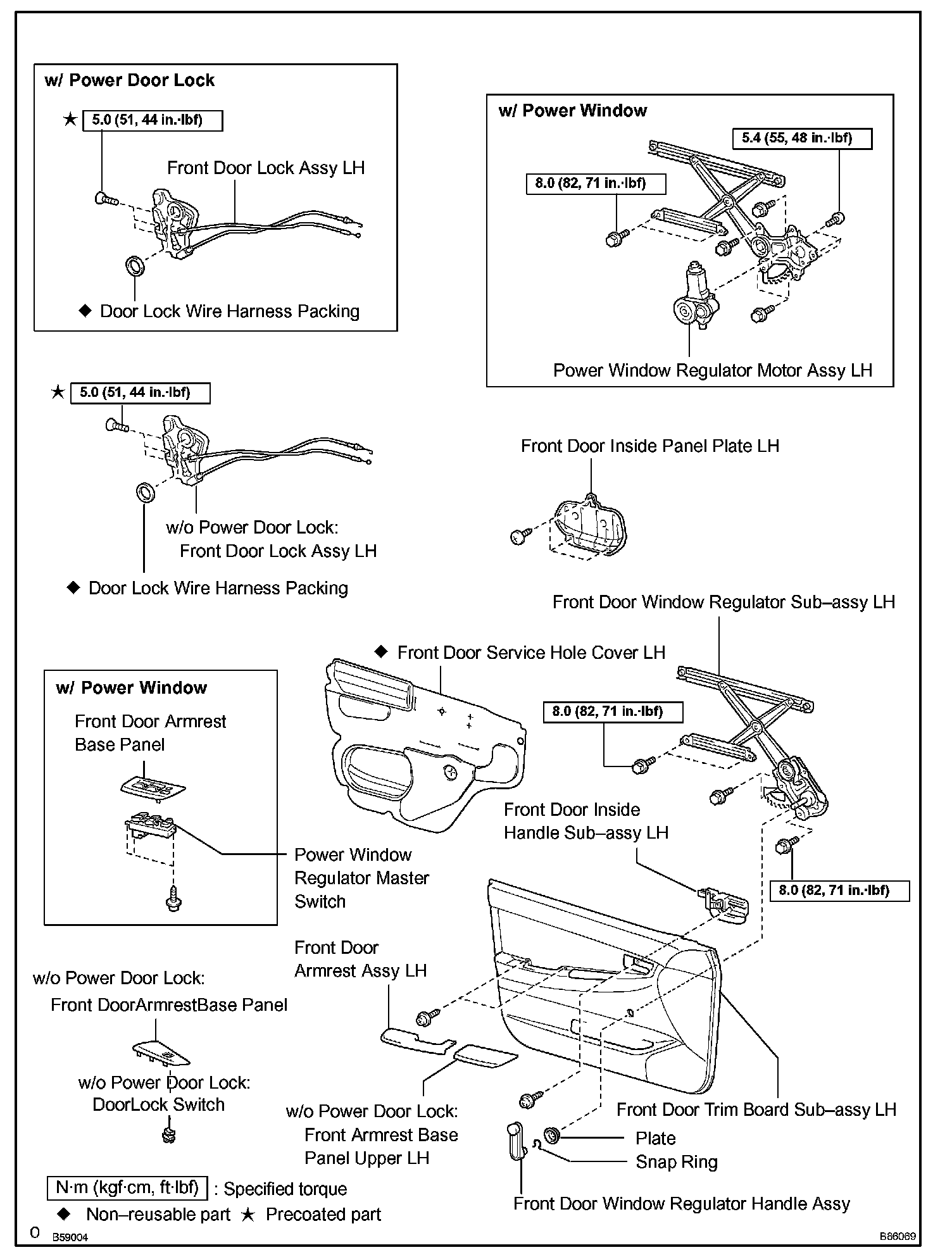

Front Door

Front Door Part 1:



Front Door Part 2:
