Seats
Seats

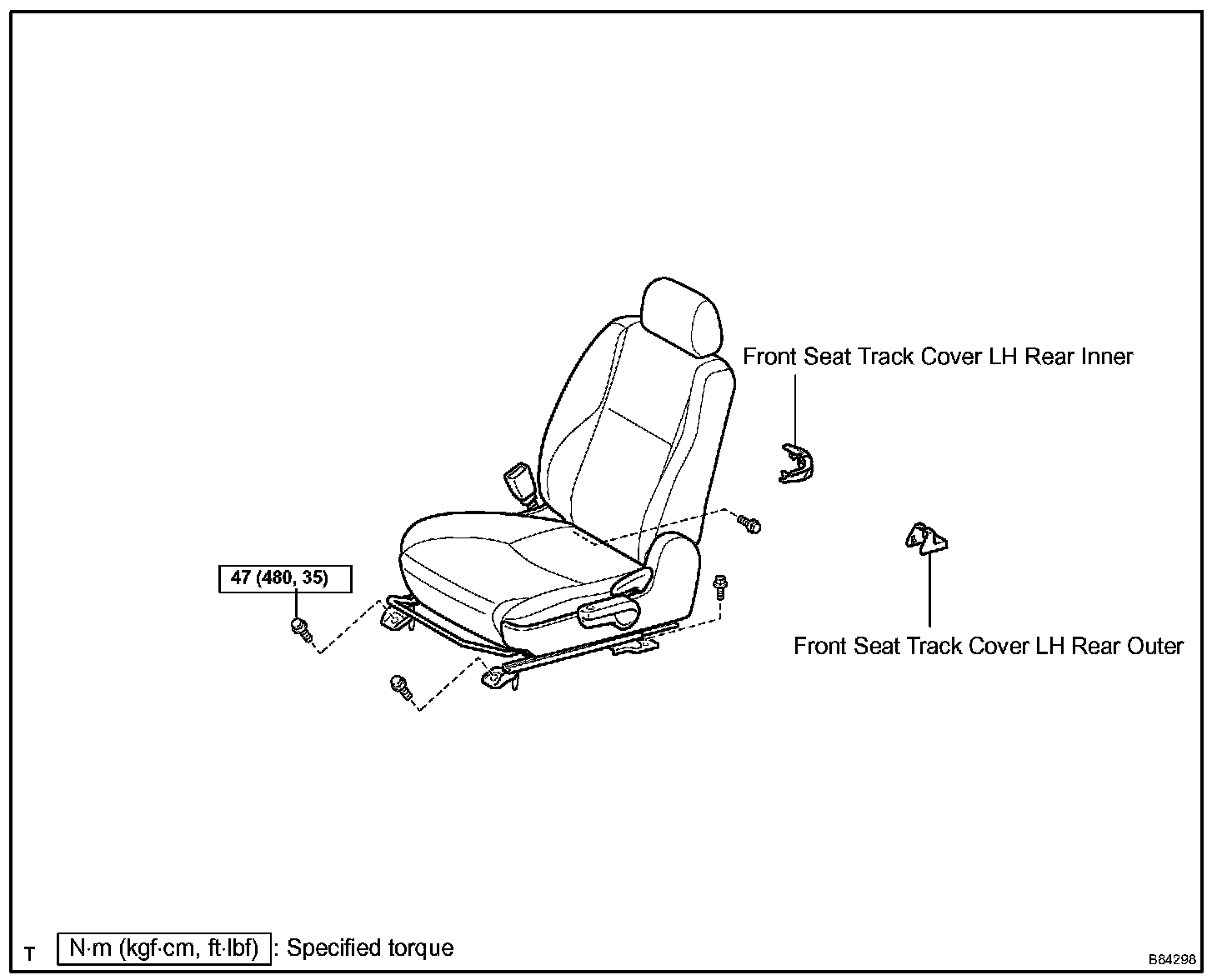

Front Seat:

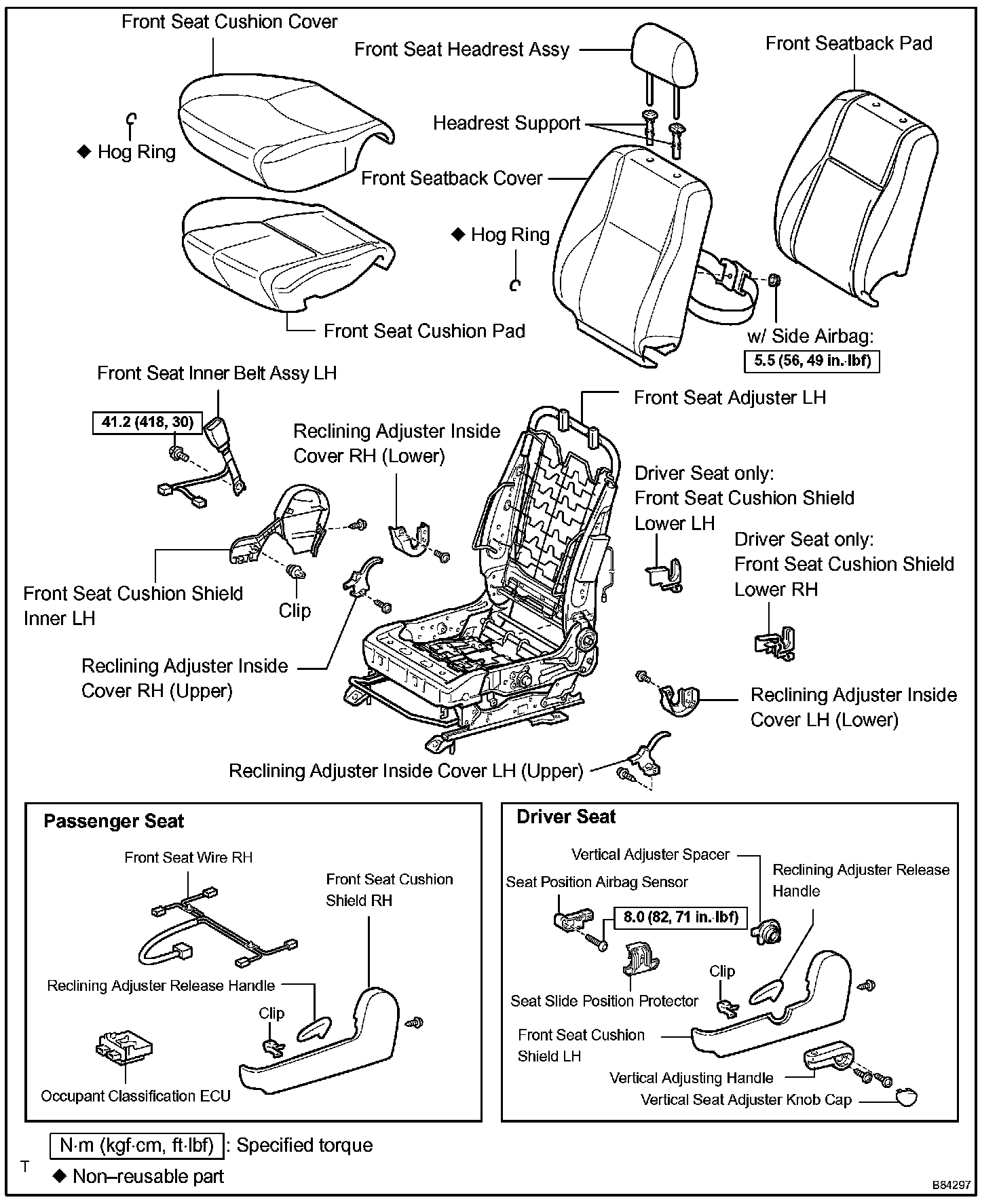

Front Seat:

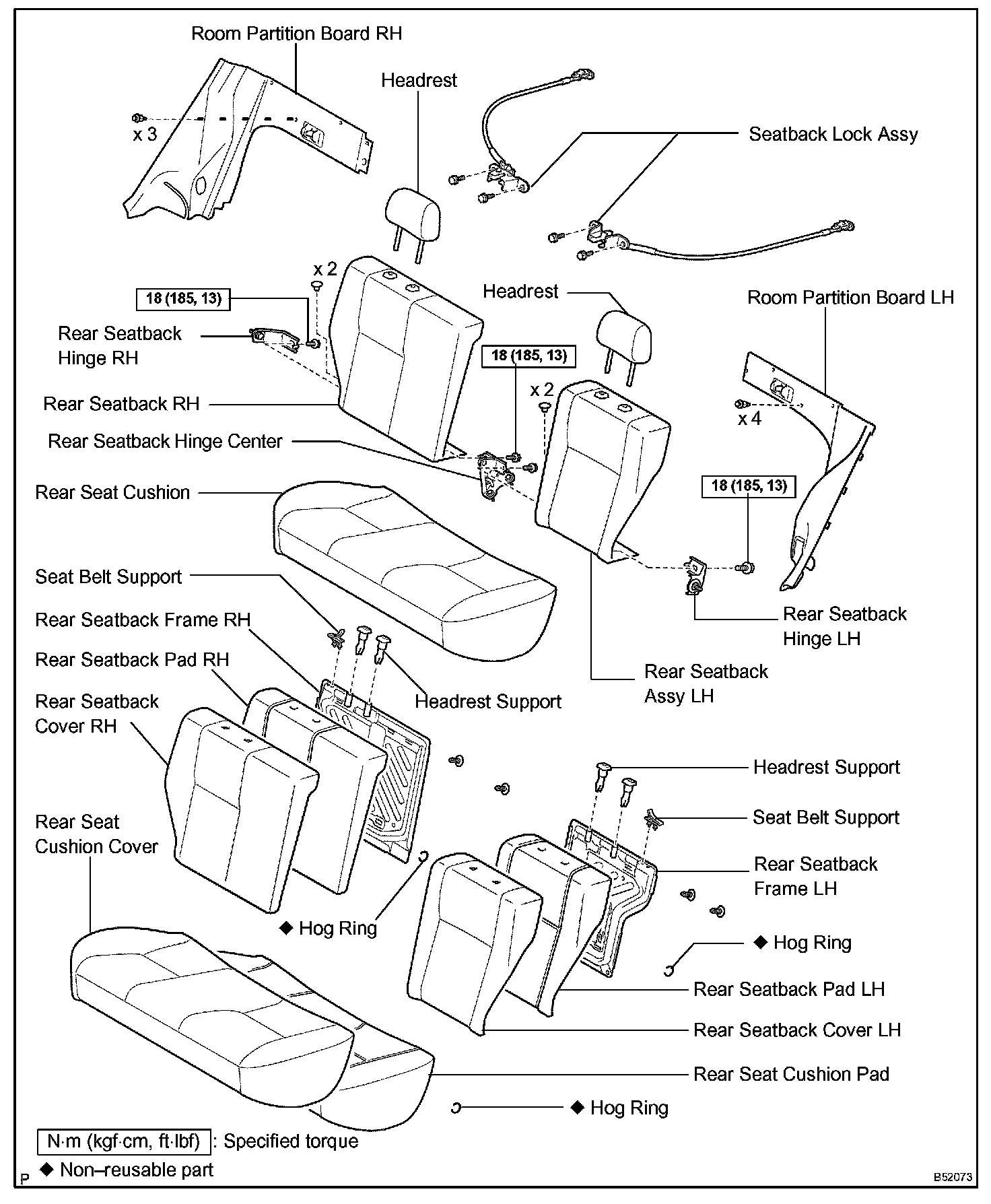

Rear Seat (Sedan With Separate Type):
Rear Seat (Sedan With Bench Type):
