Seat Belt Warning Lamp For Passenger's Seat Does Not Operate

SEAT BELT WARNING LAMP FOR PASSENGER'S SEAT DOES NOT OPERATE

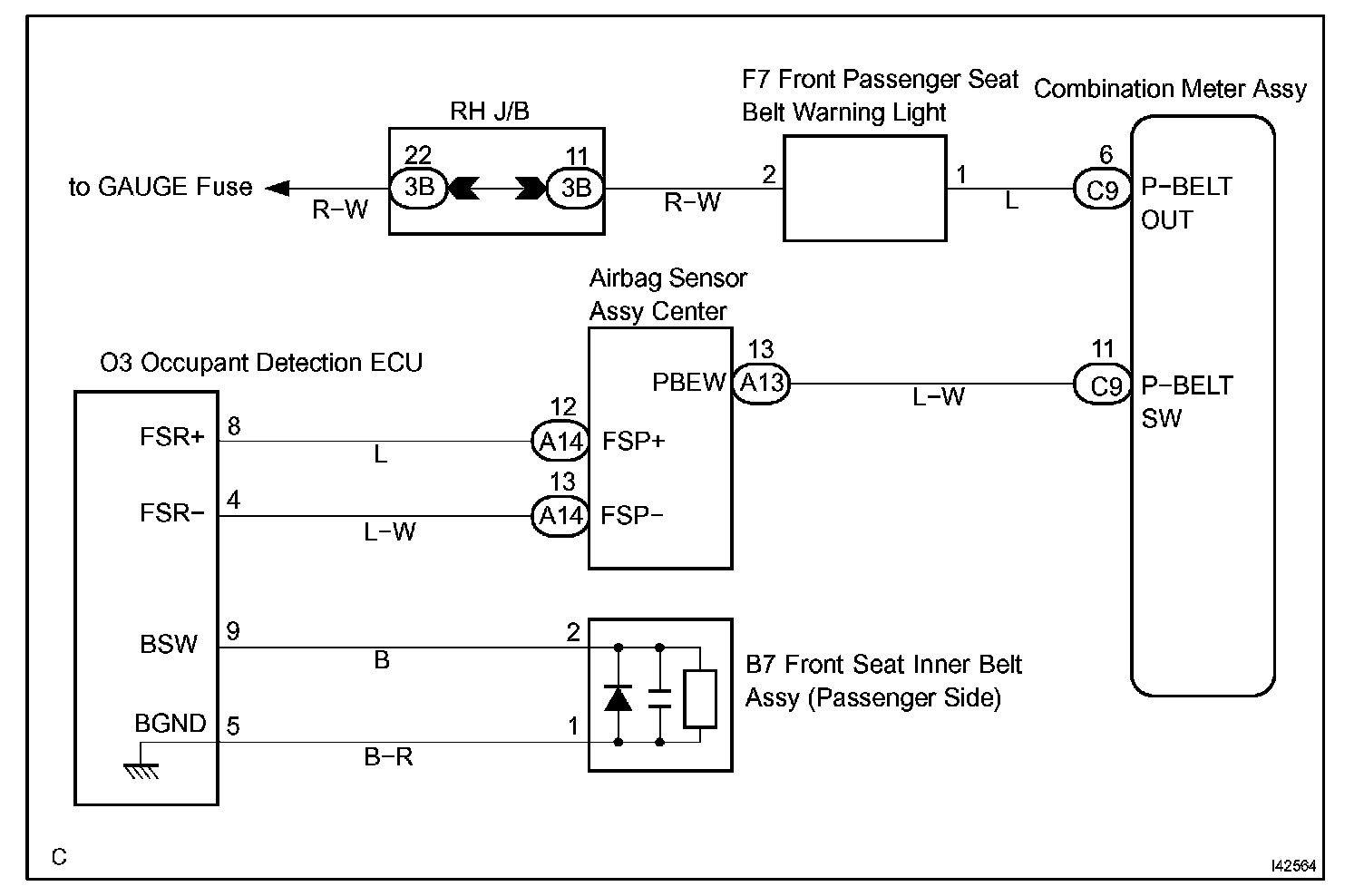

Wiring Diagram:

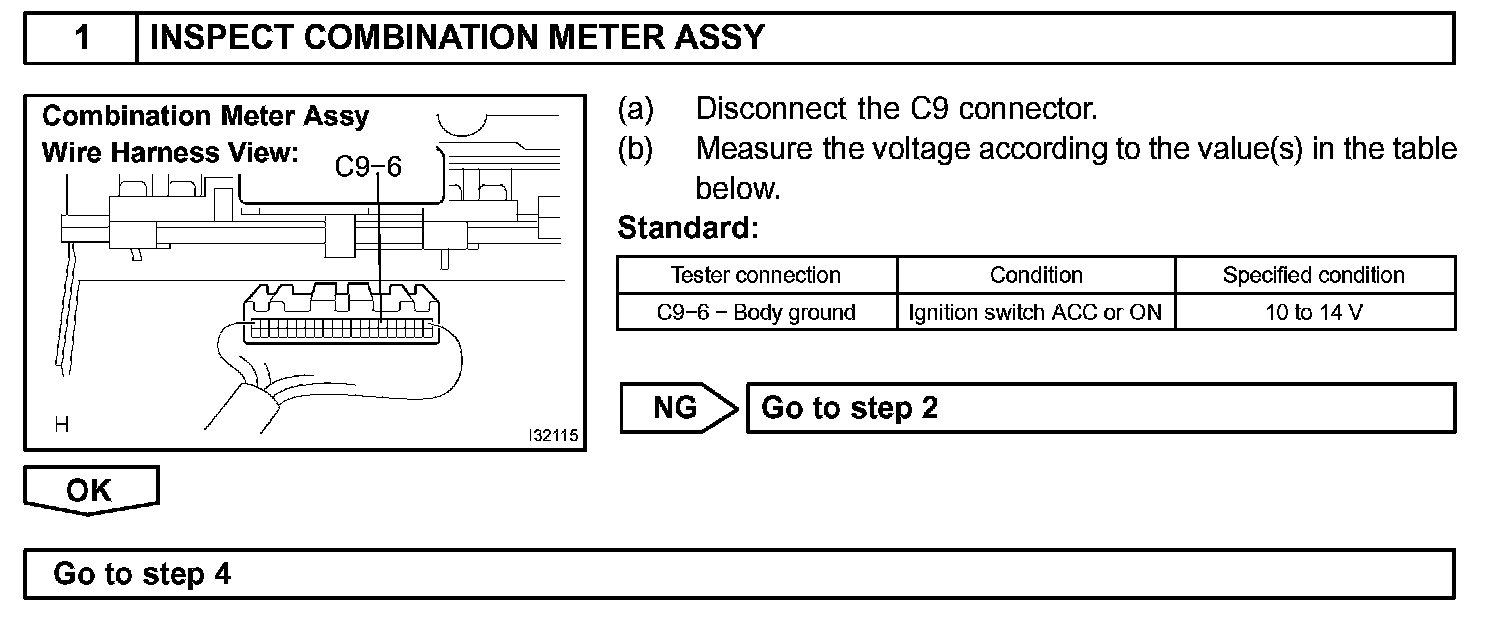

Step 1:

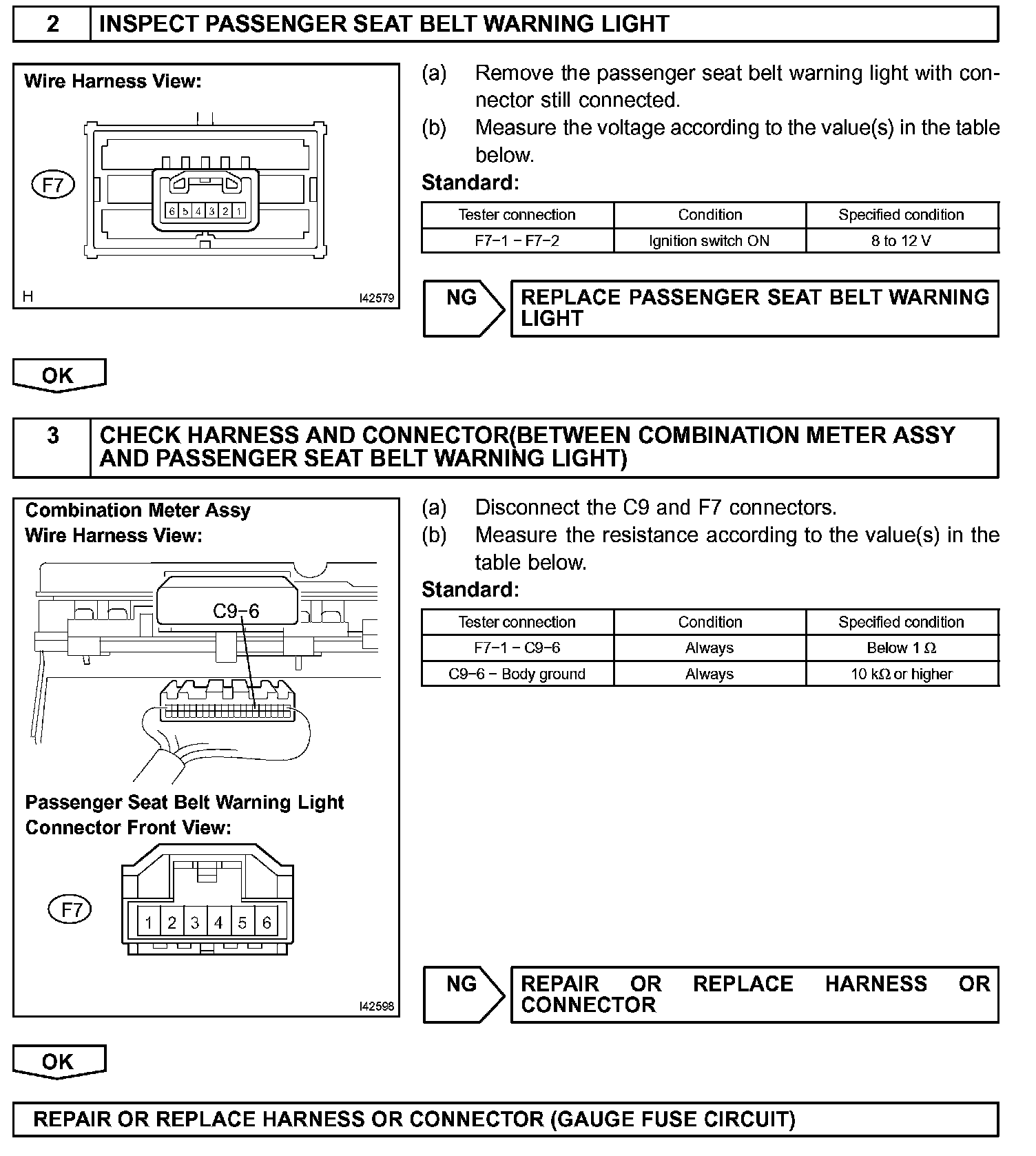

Step 2-3:




Step 4-5:

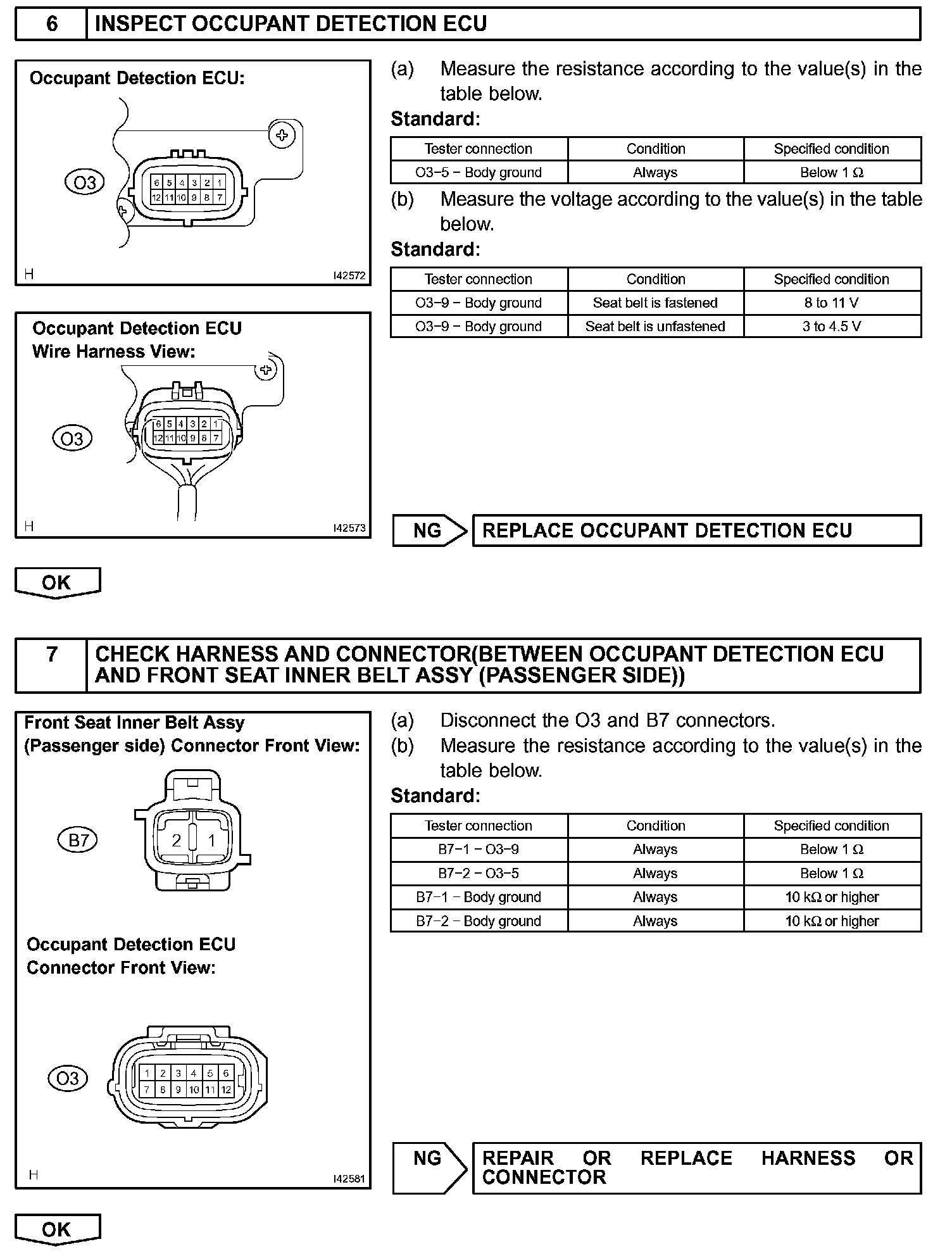

Step 6-7:




Step 8:




INSPECTION PROCEDURE
