Backup Lamp: Service and Repair

BACK UP LAMP ASSEMBLY LH

REPLACEMENT

1. REMOVE BACK UP LAMP ASSEMBLY LH




a. Remove the service hole cover.
b. Remove the 2 nuts and disconnect the connector.




c. Using a moulding remover, remove the 2 clips and back up lamp assembly LH.




2. INSTALL BACK UP LAMP ASSEMBLY LH

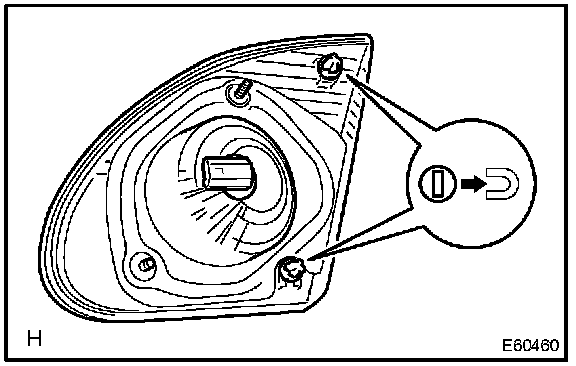

a. Set the 2 clips on the back up lamp assembly LH as shown in the illustration.
b. Connect the connector.
c. Install the back up lamp LH with 2 nuts.
